Target Components

Used Product.

Please note used products might exhibit minor cosmetic imperfections. These imperfections could include small scratches, dents, or worn corners.
Additionally, the retail packaging may show signs of damage, such as creases, and there might be residue from shipping labels.


All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).

0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.

The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.

PRODUCT DETAILS

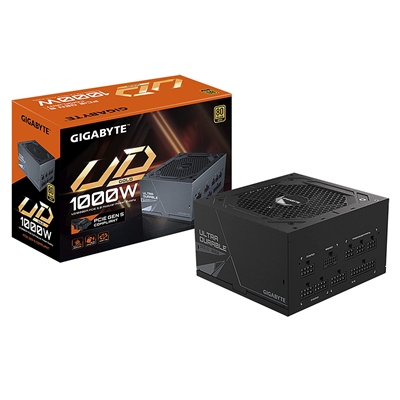

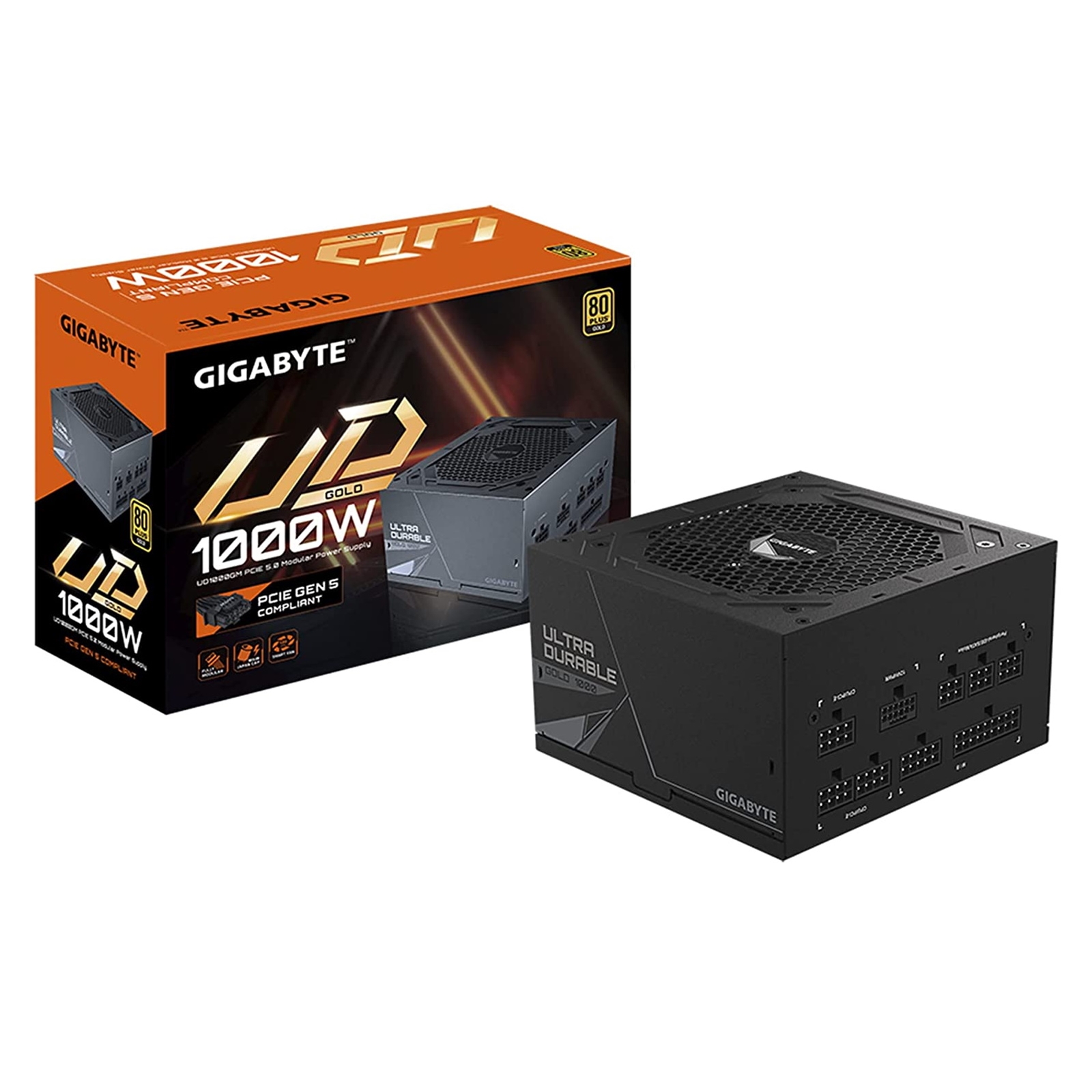

Gigabyte UD1000GM PG5
Power Supply

KEY FEATURES
- Ultra Durable:
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP / OPP / SCP / UVP / OCP / OTP protection
- Support PCIe Gen 5.0 graphics card
- High-quality native 16-pin cable supports 600W output
- 80 PLUS Gold certified
- Fully modular design
- Compact design
- 10 years warranty

Model
GP-UD1000GM PG5

Type
Intel Form Factor ATX 12V

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Wattage
1000W

Fan Type
120mm Hydraulic Bearing (HYB) fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat
All black

Connections
1 x 20+4 Motherboard pin
2 x 4+4 pin CPU
1 x 16-pin PCI-e
4 x 6+2 PCI-e
8 x SATA
3 x Peripheral
1 x Floppy

Product Dimension
150 x 140 x 86 mm
