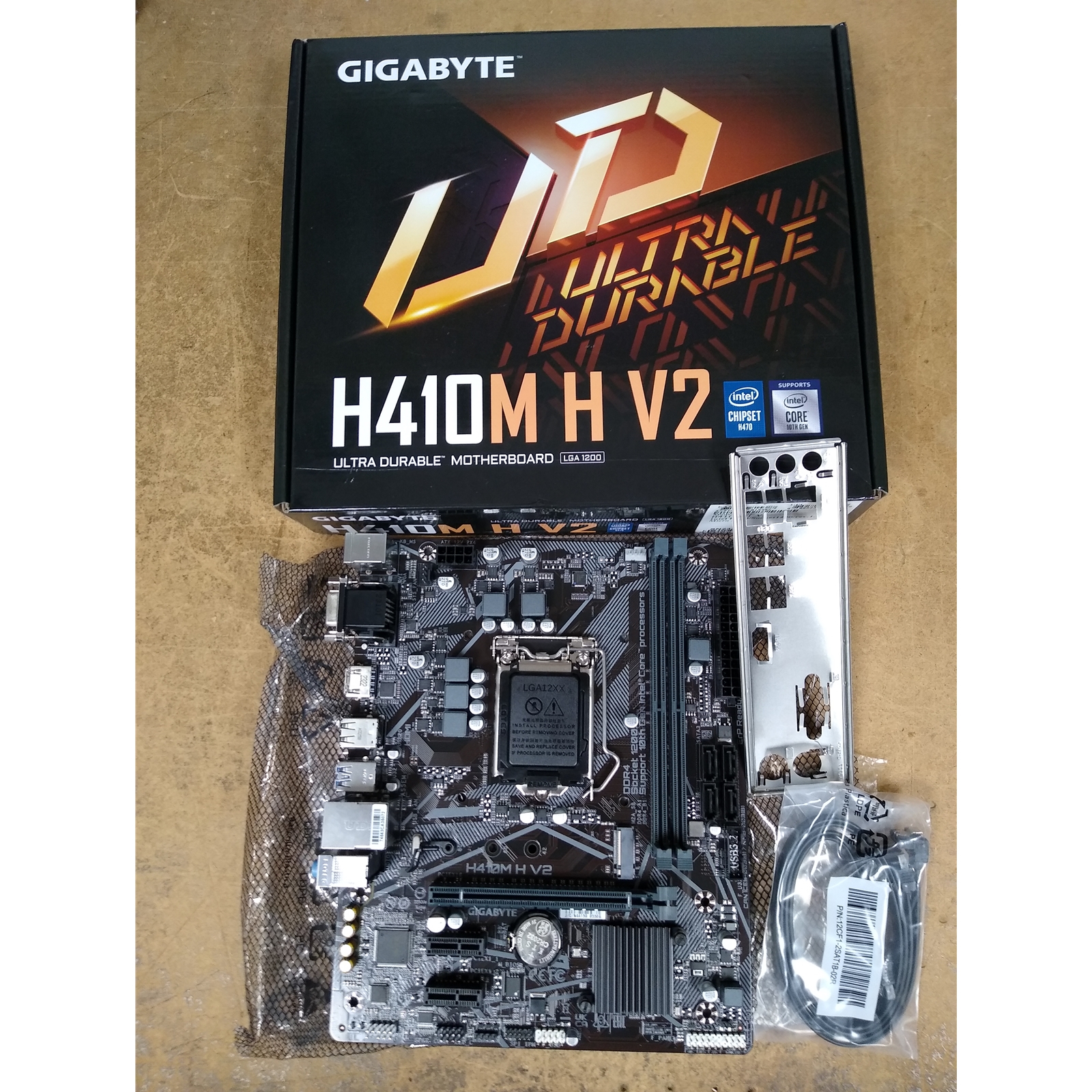

Manufacturer Refurbished. Comes with I/O Shield and X1 SATA cable.
Drivers are available from Gigabyte's Website (https://www.gigabyte.com/uk).
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.
The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x2 2280 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
- 4 Temperature Sensors
- 2 Fan Pin Headers
- All Fan Pin Headers Upgraded to Hybrid Fan Headers
- Interoperable Fans and Sensors
- Intuitive UI for Fan Control
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
The Industry's Leading Surge Protection
GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.
Specifications
CPU
Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
Chipset
Intel® H410 Express Chipset
Memory
Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Audio
Realtek® audio codec
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Warranty:
All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).
BACK PANEL I/O PORTS
|
PS/2 ports quantity |
1 |
USB 2.0 ports quantity |
4 |
Ethernet LAN (RJ-45) ports |
1 |
VGA (D-Sub) ports quantity |
1 |
HDMI ports quantity |
1 |
HDMI version |
1.4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
BIOS
|
BIOS memory size |
128 Mbit |
BIOS type |
UEFI AMI |
ACPI version |
5.0 |
Clear CMOS jumper |
Y |
Desktop Management Interface (DMI) version |
2.7 |
System Management BIOS (SMBIOS) version |
2.7 |
EXPANSION SLOTS
|
PCI Express x1 (Gen 3.x) slots |
2 |
PCI Express x16 (Gen 3.x) slots |
1 |
Number of M.2 (M) slots |
1 |
FEATURES
|
Motherboard chipset |
Intel H410 Express |
Motherboard form factor |
micro ATX |
Audio output channels |
7.1 channels |
PC health monitoring |
Fan, Temperature, Voltage |
Windows operating systems supported |
Windows 10 x64 |
Motherboard chipset family |
Intel |
Component for |
PC |
Audio chip |
Realtek ALC887 |
GRAPHICS
|
Maximum graphics card memory |
512 MB |
Maximum resolution |
4096 x 2160 pixels |
Parallel processing technology support |
Not supported |
HDCP |
Y |
INTERNAL I/O
|
USB 2.0 connectors |
1 |
CPU fan connector |
Y |
ATX Power connector (24-pin) |
Y |
Number of chassis fan connectors |
1 |
Front panel audio connector |
Y |
TPM connector |
Y |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
4 |
Serial port headers |
1 |
Front panel connector |
Y |
12V power connector |
Y |
RGB LED pin header |
Y |
MEMORY
|
Maximum internal memory |
64 GB |
ECC |
Y |
Non-ECC |
Y |
Supported memory clock speeds |
2133,2400,2666,2933 MHz |
Supported memory types |
DDR4-SDRAM |
Memory channels |
Dual-channel |
Unbuffered memory |
Y |
Memory slots type |
DIMM |
Number of memory slots |
2 |
NETWORKING
|
Ethernet LAN |
Y |
Wi-Fi |
N |
Ethernet interface type |
Gigabit Ethernet |
PACKAGING CONTENT
|
Bundled software |
Norton Internet Security (OEM)
Realtek 8118 Gaming LAN Bandwidth Control Utility |
PROCESSOR
|
Processor manufacturer |
Intel |
Maximum number of SMP processors |
1 |
Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
Processor socket |
LGA 1200 (Socket H5) |
WEIGHT & DIMENSIONS
|
Width |
226 mm |
Depth |
174 mm |
