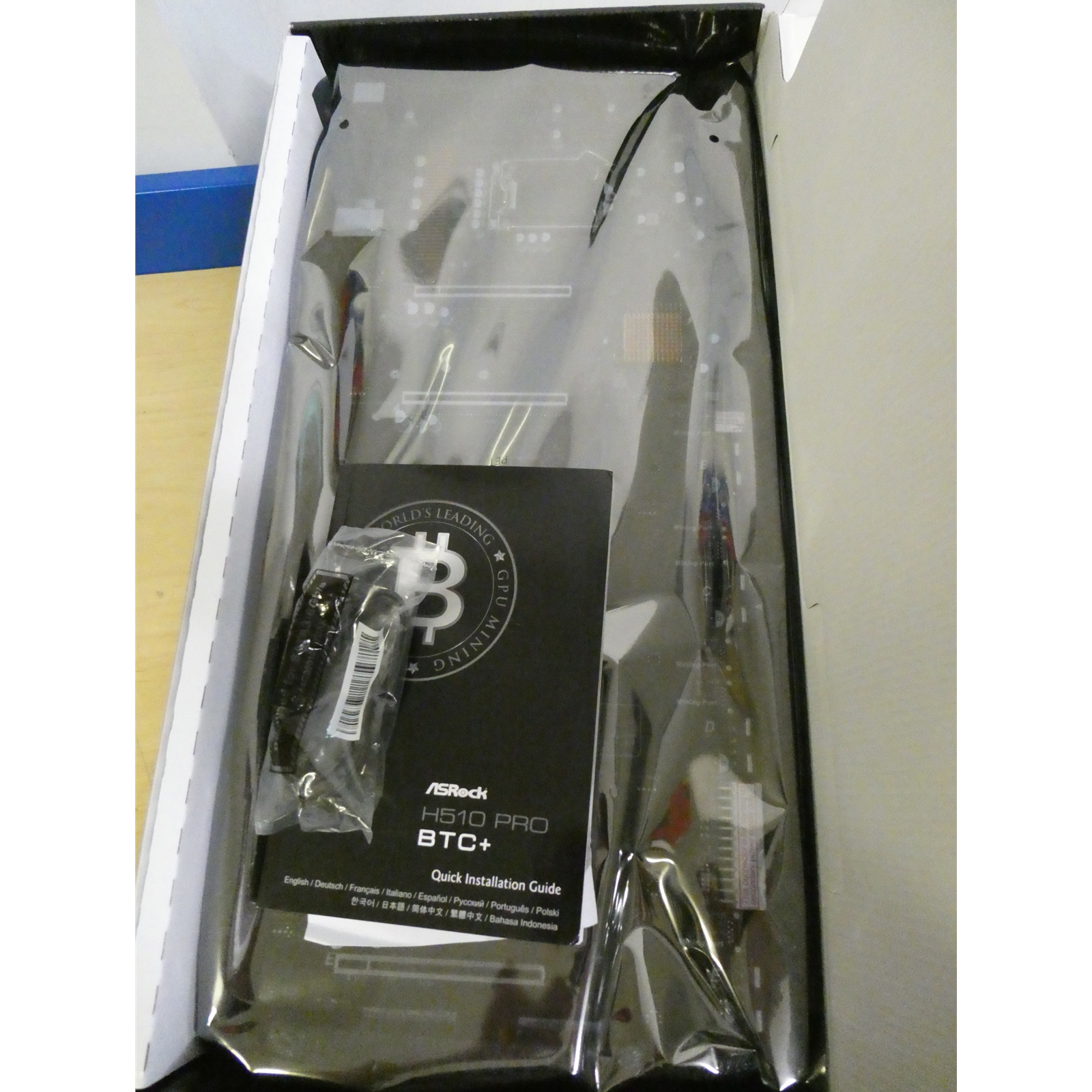

Complete. Customer who purchased didn't understand what the board was for. Instructions and Drivers available from Manufacturers website. Tested and Working OK.

All Graded and Refurbished products (0-Stock) carry a 90-day Dead On Arrival Warranty (rest of existing warranty if supplied as an RMA replacement).

0-stock will be as original product description. Please be aware that these products are likely to be incomplete and missing drivers, cables, manuals, packaging etc. Chassis and other peripherals may be missing screw-packs, blanking plates, and may also have cosmetic damage in the form of scratches, small dents, damage to original outer carton or retail box etc.

The price of these items has been reduced to reflect this. Drivers and manuals can usually be downloaded from the manufacturers website.

Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
Supports DDR4 3200MHz
Graphics Output: HDMI
6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)
1 SATA3, 1 M.2 (SATA3)
2 Rear USB 3.1 Gen1 Type-A
4 USB 2.0 Type-A (2 Rear, 2 Front)
Intel Gigabit LAN
2 Extra 24-pin ATX Power Connector
Onboard Power On / Reset Button
Fully Independent Power Rail

Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.

M.2 For SSD
M.2 socket supports 2260/2280/22110 SATA3 mode M.2 SSD for up to 6Gb/s.

Smart PCIe State Detection
This motherboard has included a smart way to show the status of every graphics card. While the system is booting, the Power-On, Self-Test (POST) screen will show the status of the graphics cards that were installed on the motherboard.

USB Type PCIe x1 Mining Ports
Onboard USB Type PCIe x1 Mining Ports for Setting Up Even More Graphics Cards.

PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Riser Kit Free
Install graphics cards directly on the motherboard without using riser kits to ensure ultimate stability.

Intel LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Specifications

CPU
Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
Digi Power design
4 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology

Chipset
Intel H510

Memory
1 x DDR4 DIMM Slot
Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 32GB
Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment

Graphics
11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel Core Processors
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel Core Processors
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 2.2 with HDMI Port (HDCP 2.3 ready with 11th Gen Intel Core Processors)

LAN
Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
6 x PCI Express 3.0 x16 Slots (PCIE1 at x16 / PCIE2~6 at x1)
1 x Mining Port (M_Port1 at x1)

Storage
1 x SATA3 6.0 Gb/s Connector, supports NCQ, AHCI and Hot Plug
1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module

Connector
1 x System Panel Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)
8 x Chassis Fan Connectors (4-pin)
3 x 24 pin ATX Power Connectors
1 x 8 pin 12V Power Connector
4 x 4 pin PCIe Power Connectors
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x Power Button
1 x Reset Button

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Unique Feature
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB ASRock Steel Slot
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories
Quick Installation Guide, Support CD
1 x SATA Data Cable
1 x Screw for M.2 Socket

Hardware Monitor
Fan Tachometer: CPU, Chassis Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
Fan Multi-Speed Control: CPU, Chassis Fans
Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V

Form Factor
20.1-in x 8.8-in, 50.1 cm x 22.4 cm
Solid Capacitor design

OS
Microsoft Windows 10 64-bit / 11 64-bit
Linux: Ubuntu 16.04 LTS / Fedora 25
