Target Components

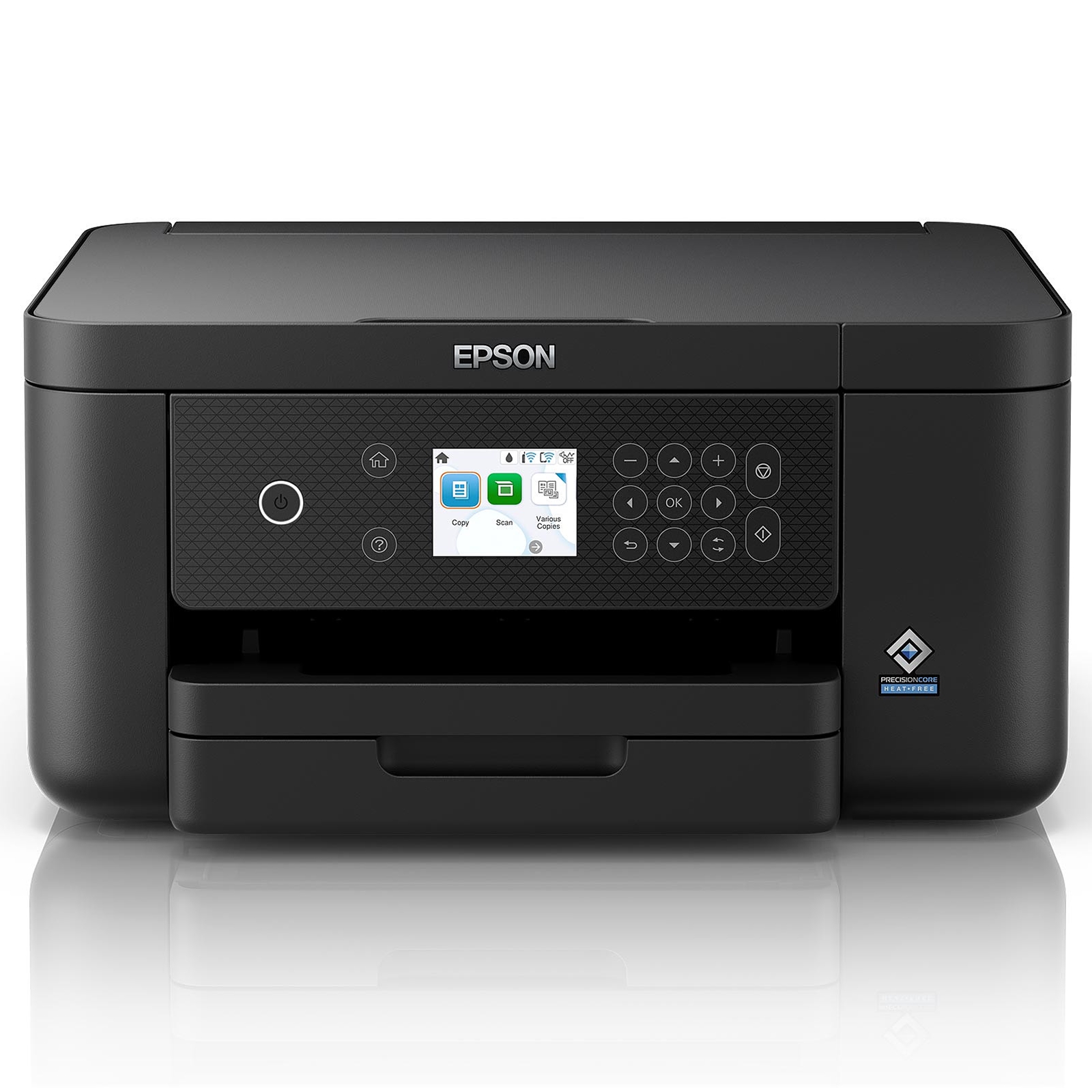

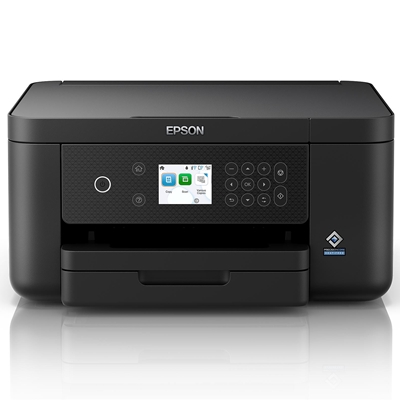

Epson Expression Home XP-5200 is a compact and stylish all-in-one printer with individual inks, mobile printing, and A4 double-sided printing.

Key Features
Compact and Stylish: Small footprint and looks great from all angles.
Convenient and Efficient: Double-sided printing and up to 150-sheet front-loading paper tray.
Easy Mobile Printing: Print easily from your smartphone or tablet with Epson's mobile printing solutions.
Wi-Fi & Wi-Fi Direct: Wireless printing with or without a network.
A4 Double-Sided Printing: Automatically print on both sides to reduce paper usage.

Technology
Printing Method:
Epson Micro Piezo™ print head

Nozzle Configuration:
400 Nozzles Black, 128 Nozzles per Color

Minimum Droplet Size:
3.3 pl, With Variable-Sized Droplet Technology

Ink Technology:
Pigment black and Dye colour Inks

Printing Resolution:
4,800 x 1,200 DPI

Category:
Home

All-in-One Functions:
Print, Scan, Copy

Print
Number of Colours:
4 colour

Printing Speed ISO/IEC 24734:
14 pages/min Monochrome, 7.5 pages/min Colour

Printing Speed:
33 pages/min Monochrome (plain paper 75 g/m²), 20 pages/min Colour (plain paper 75 g/m²)

Colours:
Black, Cyan, Yellow, Magenta

Scan
Optical Resolution:
1,200 DPI x 2,400 DPI (Horizontal x Vertical)

Scanner Type:
Contact image sensor (CIS)

Paper/Media Handling
Number of Paper Trays:
1

Paper Formats:
A4, A5, A6, B5, B6, 13 x 18 cm, 10 x 15 cm, 16:9, No. 10 (Envelope), DL (Envelope), C6 (Envelope), Letter Legal, 9 x 13 cm, 13 x 20 cm, 20 x 25 cm, 100 x 148 mm

Duplex:
Yes (A4, plain paper)

Print Margin:
0 mm top, 0 mm right, 0 mm bottom, 0 mm left (Wherever margin is defined. Otherwise 3mm top, left, right, bottom.)

Paper Tray Capacity:
150 Sheets Maximum, 20 Photo Sheets

Media Handling:
Borderless print, Duplex (A4, plain paper)

General
Energy Use:
12 Watt (standalone copying, ISO/IEC 24712 pattern), 0.7 Watt (sleep mode), 5.3 Watt (Ready), 0.3 Watt (Power off)

Supply Voltage:
AC 100 V - 240 V, 50 Hz - 60 Hz

Product Dimensions:
375 x 347 x 187 mm (Width x Depth x Height)

Product Weight:
5.4 kg

Noise Level:
5.2 B (A) with Epson Premium Glossy Photo Paper / Photo RPM mode,
39 dB (A) with Epson Premium Glossy Photo Paper / Photo RPM mode

Compatible Operating Systems:
Mac OS X 10.9.5 or later, Windows 10 (32/64 bit), Windows 11 or later, Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Vista (32/64 bit), Windows XP Professional x64 Edition SP2 or later, Windows XP SP3 or later (32-bit), macOS 11 or later

Interfaces:
USB, Wireless LAN IEEE 802.11a/b/g/n, Wi-Fi Direct

WLAN Security:
WEP 64 Bit, WEP 128 Bit, WPA PSK (TKIP), WPA2 PSK (AES), WPA3-SAE(AES)

Mobile and Cloud Printing Services:
Apple AirPrint, Epson Smart Panel App, Epson Creative Print App, Epson Connect (Email Print, Scan-to-Cloud)

What's in the Box:
Individual Ink Cartridges, Main unit, Power cable, Setup guide, Warranty document

Colour:
Black

Additional Features
Panel:
Type: Colour, Diagonal: 6.1 cm

Features:
Red eye removal, Photo Enhance
