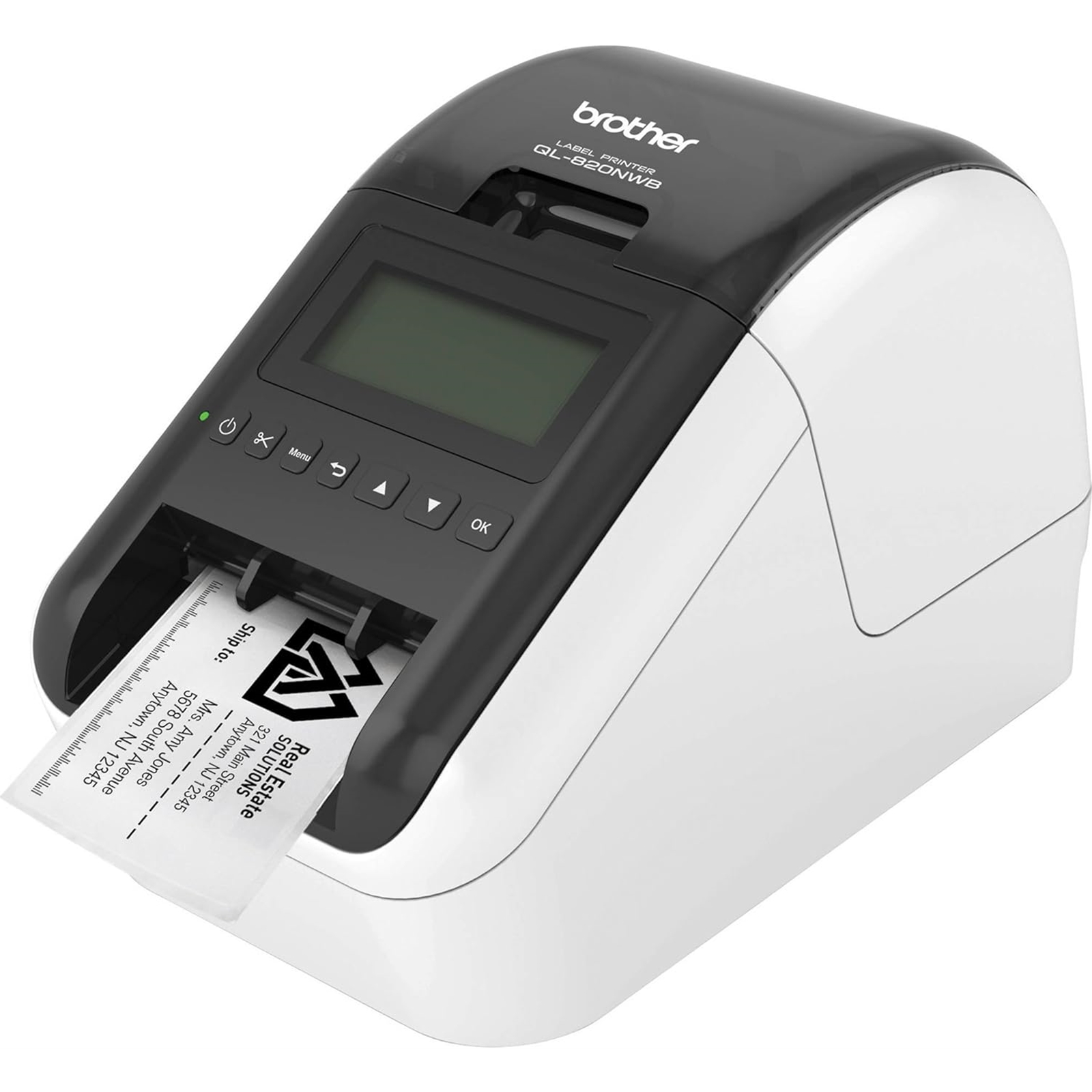

The Brother QL-820NWB Label Maker is a versatile and efficient labeling solution designed for various applications. With its wireless, USB 2.0, network, and Bluetooth connectivity options, this label printer offers seamless compatibility with a variety of devices, allowing you to print labels effortlessly from your desktop or mobile devices.
Equipped with the ability to print labels up to 62mm in width, this label maker is perfect for creating address labels, shipping labels, and more. The red and black printing capability adds a touch of vibrancy and clarity to your labels, making them stand out and easily readable.
The convenience of the UK plug ensures that the Brother QL-820NWB Label Maker is ready to use in any UK setting without the need for adapters. Its desktop design makes it a space-saving solution for your labeling needs, providing a reliable and efficient tool for home or office use.
Whether you need to organize your workspace, streamline your shipping process, or enhance your labeling tasks, the Brother QL-820NWB Label Maker offers a reliable and feature-rich solution, making label printing a breeze.
General
Maximum label width (mm) 62mm
Database upload from PC Yes
Housing colour Glossy black and white
Image upload from PC Yes
Memory capacity 6 MB
Memory locations 255
Technology Direct thermal
Template upload from PC Yes
General Supplies
Type DK rolls (DK die-cut labels / DK continuous length tape)
Connectivity
AirPrint Yes
Bluetooth Ver 2.1 EDR
MFi Yes
Bluetooth profiles SPP/OPP/BIP/HCRP
USB interface Ver 2.0 (full speed)
Wi-Fi Direct Yes
Wired network interface 10/100 BASE-TX
Wireless network interface IEEE 802.11 b/g/n
Dimensions & weights
Dimensions 125mm (W) x 234mm (D) x 145mm (H)
Weight 1.16 kg
In the box
AC adaptor Yes
AC adaptor power cord Yes
USB cable Yes
User guide Yes
Warranty card Yes
Quick setup guide Yes
Tape cassettes 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters)
Network
Wireless network security WEP, WPA-PSK/WPA2-PSK (TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES)
Operating systems & software
Macintosh Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher
Windows Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Printing
1 dimensional barcode symbologies CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked)
2 dimensional barcode symbologies PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION
Black and red printing capability Yes
Bitmap fonts Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Maximum label width 62 mm
Maximum print width 58 mm
Outline/Vector fonts Helsinki, Brussels, Letter Gothic
Resolution (dpi) 300 x 300, 300 x 600
Standard print speed 110 labels per minute
Standard print speed 176 mm per second
P-touch Editor label design software
Database file compatibility csv, Microsoft Access, Microsoft Excel
Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 126
Label orientations Horizontal, Vertical
Microsoft Office add-in (highlight->click->print) Excel, Outlook, Word
Screen capture Yes
Sequential numbering 1 - 9999 / A - Z / a - z
Text alignment Centre, Justify, Left, Right
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Vertical print Yes
Solutions
SDK (Software Development Kit) Yes
Warranty
Warranty 3 year warranty (upon registration)
