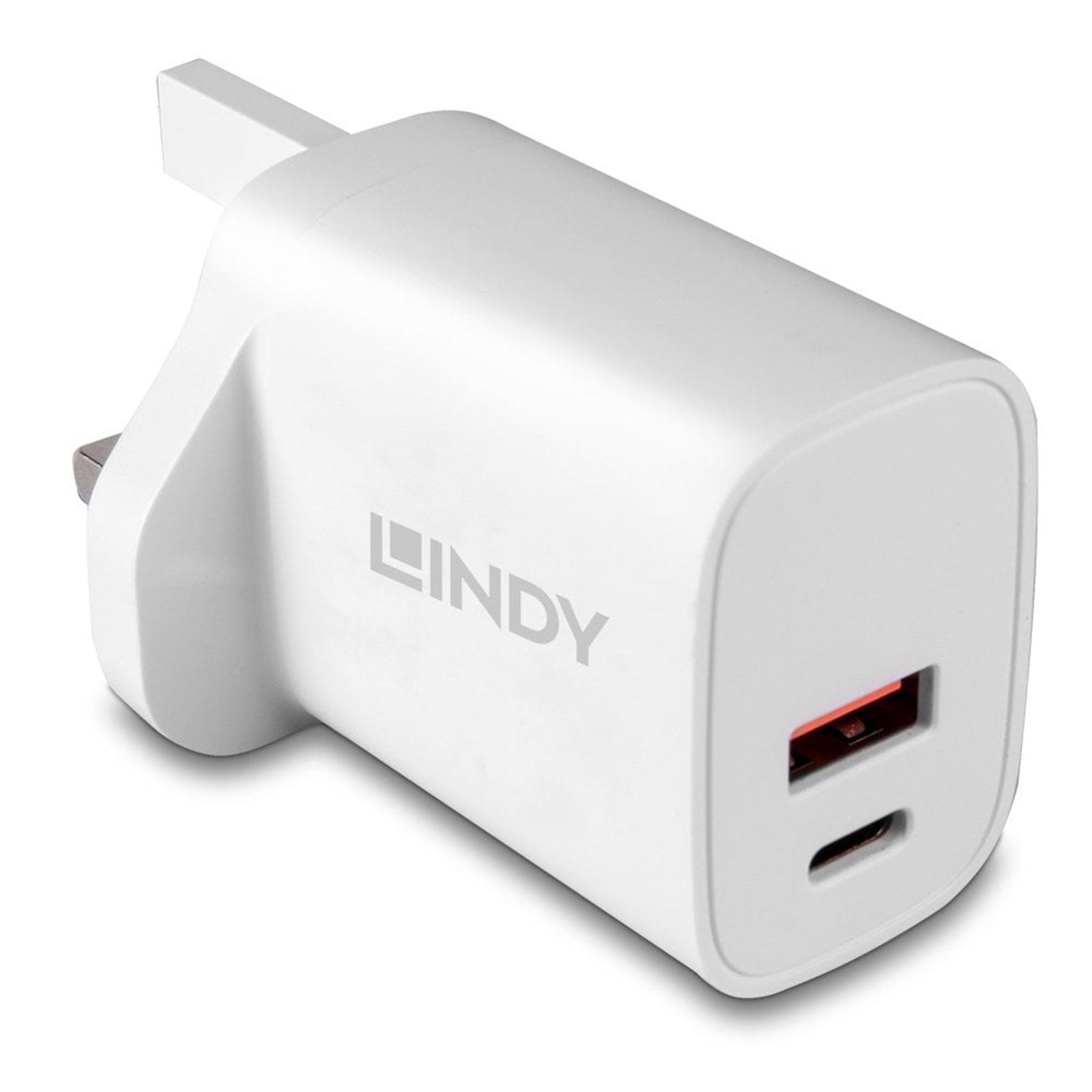

The Lindy 20W USB Type A & C Charger can charge two USB devices simultaneously. 20W Power Delivery are supported by the USB Type C port while the USB Type A port provides fast charging with up to 18W. When both ports are used in parallel a maximum power of 15W will be provided.
Thanks to its compact design it can easily be carried and is always available when power is needed.
For safe charging the device includes overvoltage, overcurrent, overtemperature and short-circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.
Key Features
Charges and powers two devices simultaneously
20W Power Delivery and fast charging for smartphones, tablets and other mobile devices
Compact design for maximum mobility
Built-in safety features as overvoltage and overcurrent protection
2 year warranty
Connectors
Input
UK Plug
Output
USB Type A Female, USB Type C Female
Specifications
Power Input
100-240VAC, 50-60Hz 0.4A
Power Output
USB Type A
5V 3A, 9V 2A, 12V 1.5A
USB Type C
5V 3A, 9V 2.22A, 12V 1.67A
USB Type A & C
5V 3A
USB Power Delivery
PD 3.0 (USB Type C port)
Max. Total Power
20W
Output Voltage Accuracy
± 5%
Average Active Efficiency
5V 82.12%, 12V 86.35%
Efficiency at Low Load (10%)
5V 75.94%, 12V 75.03%
No-load Power Consumption
= 0.1W
Additional Features
Overcurrent, overvoltage, overtemperature and short-circuit protection
Physical Properties
Dimensions (approx.) W x D x H
51.1 x 28.81 x 41.08 mm
Connector Material
Copper
Housing Material
PC & ABS
Net Weigh
0.62kg (1.37lb)
Operating Temperature
0°C - 25°C (32°F - 77°F)
Operating Humidity
0-70% RH (non-condensing)
Storage Temperature
-20°C - 70°C (-4°F - 158°F)
Storage Humidity
0-80% RH (non-condensing)
Colour
White
Miscellaneous
Packaging Type
Carton Box
Packaging Dimensions
81x120x46mm (3.19x4.72x1.81in)
Gross Weight
0.93kg (2.05lb)
Warranty (Years)
2
Product Compliance
CE, UKCA, RoHS, REACH
Package Contents
20W USB Type A & C Charger
Lindy Manual
Warranty:
2 Year Return To Base
