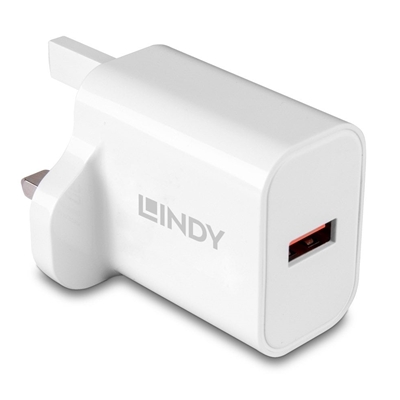

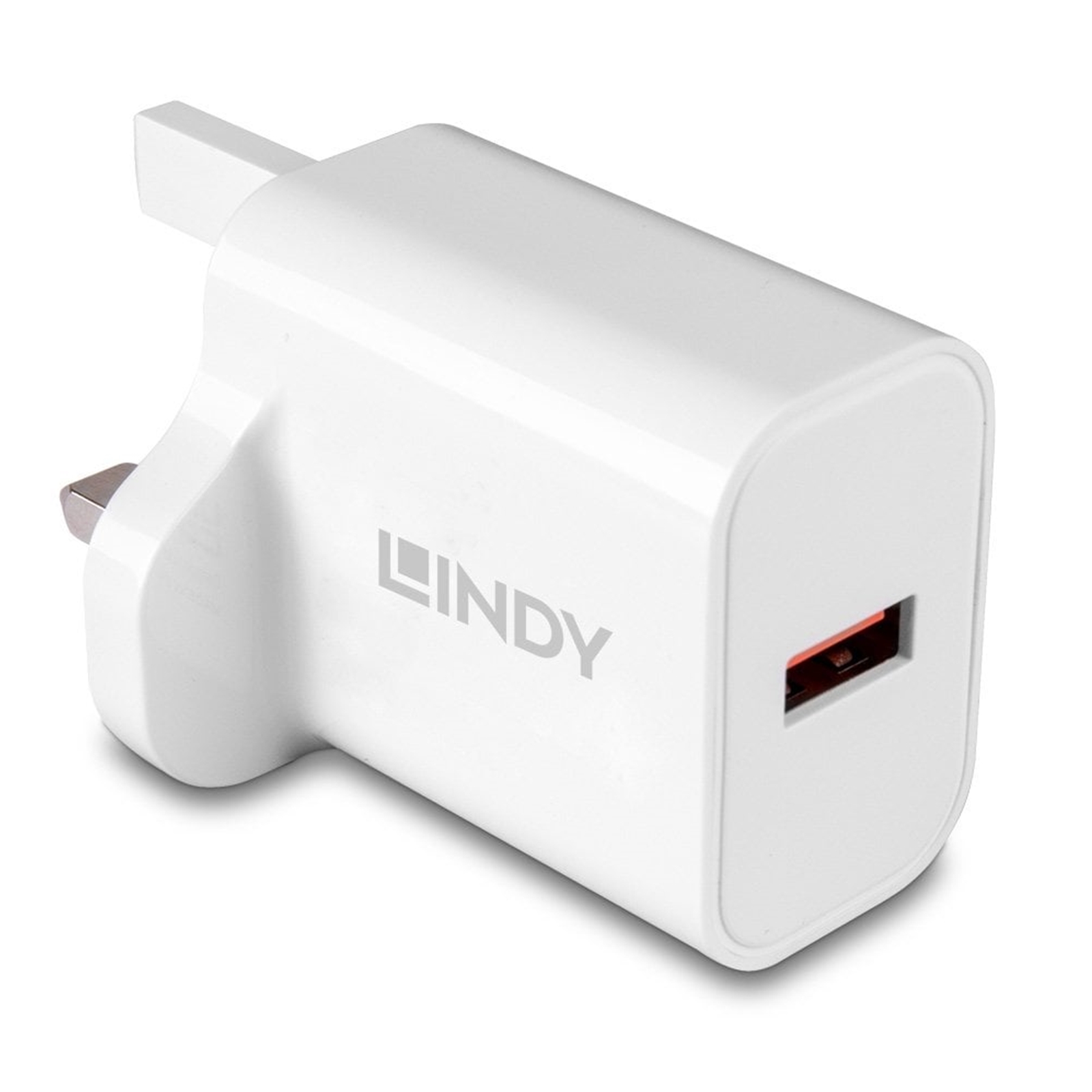

The Lindy 18W USB Type A Charger can charge a single USB device with a maximum power of 18W. It supports fast charging for many popular smartphones and other mobile devices.

Thanks to its compact design it can easily be carried and is always available when power is needed.

For safe charging the device includes overvoltage, overcurrent, overtemperature and short-circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.

Key Features
Charges and powers a device via one USB Type A port
18W fast charging for smartphones, tablets and other mobile devices
Compact design for maximum mobility
Built-in safety features as overvoltage and overcurrent protection
2 year warranty

Connectors

Input
UK Plug

Output
USB Type A Female

Specifications

Power Input
100-240VAC 50-60Hz 0.6A

Power Output
5V 3A, 9V 2A, 12V 1.5A

USB Power Delivery
No

Max. Total Power
18W

Output Voltage Accuracy
± 5%

Average Active Efficiency
5V 85.19%, 12V 86.98%

Efficiency at Low Load (10%)
5V 77.39%, 12V 74.19%

No-load Power Consumption
= 0.1W

Additional Features
Overcurrent, overvoltage, overtemperature and short-circuit protection

Physical Properties

Dimensions (approx.) (W x D x H)
48 x 26.8 x 41.6 mm

Connector Material
Copper

Housing Material
PC

Net Weight
0.6kg (1.32lb)

Operating Temperature
0°C -25°C (32°F - 77°F)

Operating Humidity
0-70% RH (non-condensing)

Storage Temperature
-20°C - 70°C (-4°F - 158°F)

Storage Humidity
0-80% RH (non-condensing)

Colour
White

Miscellaneous

Packaging Type
Carton Box

Packaging Dimensions
81 x 120 x 46mm

Gross Weight
0.9kg (1.98lb)

Warranty (Years)
2

Product Compliance
CE, UKCA, RoHS, REACH

Package Contents
18W USB Type A Charger
Lindy Manual

Manufacturer's Website:

www.lindy.co.uk

Warranty:

2 Year Return To Base

DESIGN
Product colour	White
Connector material	Copper
Housing material	Polycarbonate (PC)
ENERGY MANAGEMENT
Input voltage	100 - 240 V
Input frequency	50-60 Hz
Input current	0.6 A
Maximum power	18 W
Power plug type	Type G
Output current (12V)	1.5 A
Output current (9V)	2 A
Output current (5V)	3 A
Output voltage accuracy (�)	5%
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	0 - 70%
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 25 °C
Storage relative humidity (H-H)	0 - 80%
PACKAGING CONTENT
Manual	Yes
PACKAGING DATA
Package weight	900 g
Package depth	120 mm
Package height	46 mm
Package width	81 mm
Package type	Carton
Quantity per pack	1 pc(s)
PERFORMANCE
Fast charging	Yes
Power protection features	Over current, Over voltage, Short circuit
Charger compatibility	Smartphone, Tablet
Power source type	AC
Charger type	Indoor
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB Power Delivery	No
TECHNICAL DETAILS
Sustainability certificates	CE, REACH, RoHS, UKCA
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS, UKCA
WEIGHT & DIMENSIONS
Weight	600 g
Height	41.6 mm
Width	48 mm
Depth	26.8 mm
