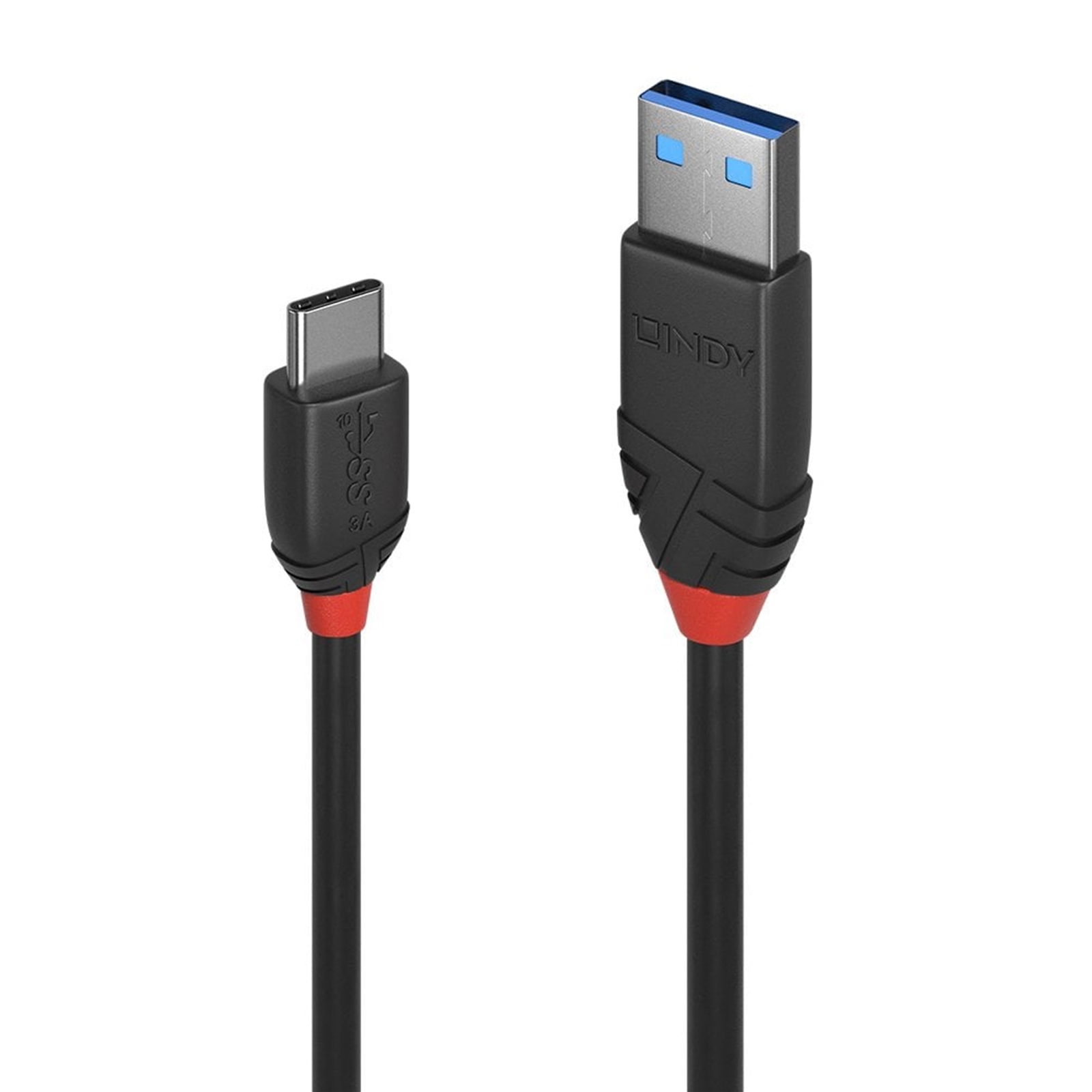

Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
Robust PVC housing, nickel connectors, gold plated contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty

The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.15m, 0.5m, 1m and 1.5m.

We have adapted the naming of our USB 3 cables to follow the updated USB specification.

USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps

USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps

USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Manufacturer's Website:

www.lindy.co.uk

Warranty:

10 Year Return To Base

FEATURES
Certification	RoHS, REACH, UL
Plug and Play	Yes
Maximum data transfer rate	10000 Mbit/s
Cable length	0.5 m
Cable type	Round cable
Product colour	Black
Connector material	Nickel
Maximum data transfer rate	10 Gbit/s
Connector 1	USB A
Connector 2	USB C
Connector contacts plating	Gold
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/30/30
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector shielding	Yes
Connector shield material	Aluminium
Contact material	Phosphor bronze
Nominal attenuation	0.5Mhz ?" 15Ghz 40db
Connector housing material	Polyvinyl chloride (PVC)
LOGISTICS DATA
Harmonized System (HS) code	84733080
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-25 - 85 °C
Operating temperature (T-T)	-20 - 80 °C
OTHER FEATURES
Storage temperature (T-T)	-25 - 85 °C
Operating temperature (T-T)	-20 - 80 °C
PACKAGING CONTENT
Quantity per pack	1 pc(s)
PACKAGING DATA
Package type	Polybag
Quantity per pack	1 pc(s)
TECHNICAL DETAILS
Harmonized System (HS) code	84733080
WEIGHT & DIMENSIONS
Cable length	0.5 m
Cable diameter	4.5 mm
Connector 1 dimensions (WxDxH)	15.5 x 35.1 x 7.8 mm
Connector 2 dimensions (WxDxH)	11 x 25.5 x 7.3 mm
Bend radius (min)	4.5 cm
