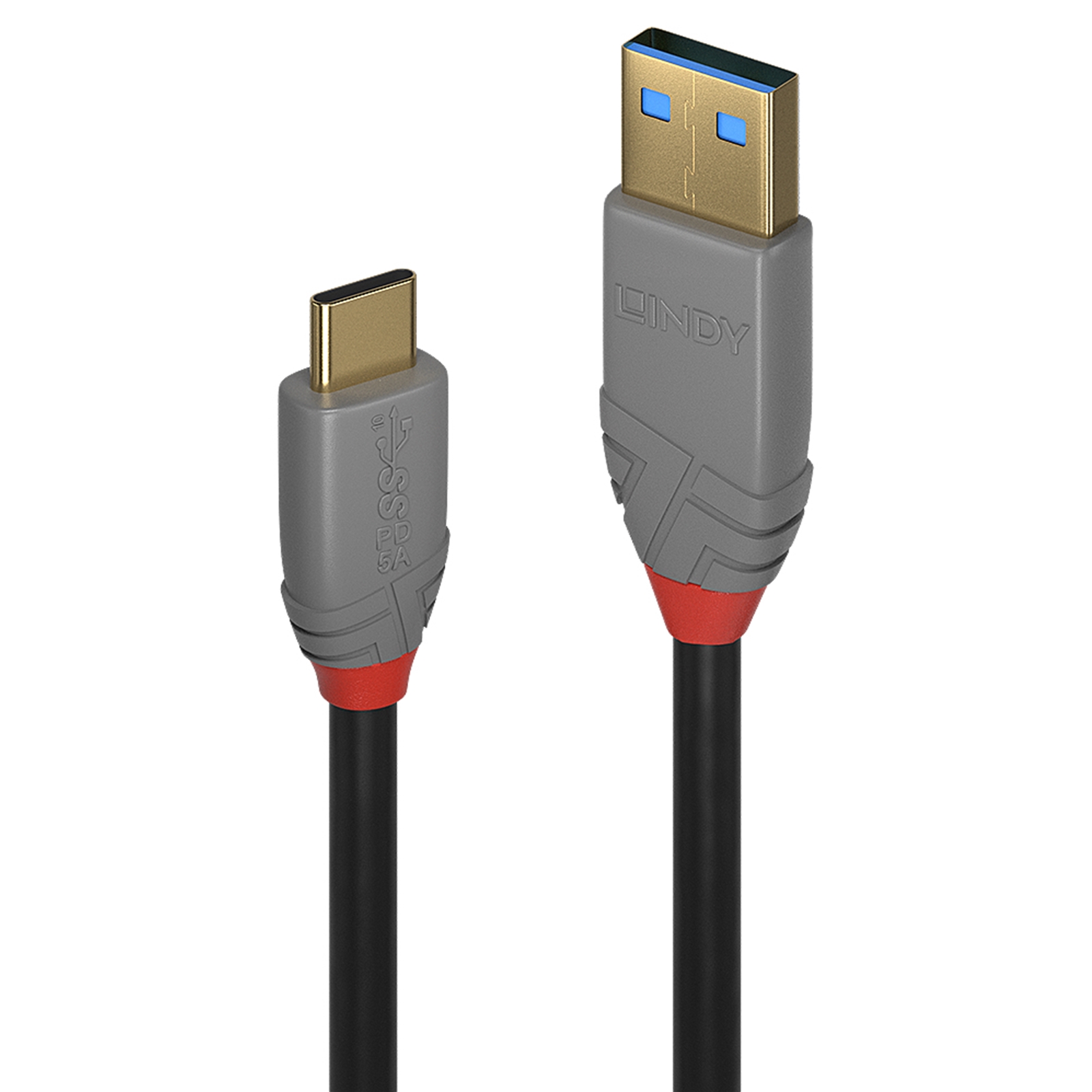

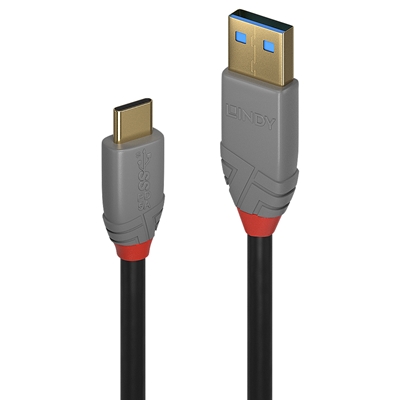

Professional choice USB 3.2 Gen 2 Type A to C, 5A (100W), cable for commercial and high performance AV and IT installations
SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
Robust PVC housing, 24K gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
2 year warranty
The Anthra Line USB 3.2 Type A to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type A to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Warranty:
2 Year Return To Base Warranty
FEATURES
|
Certification |
RoHS, REACH, UL |
Maximum data transfer rate |
10000 Mbit/s |
Cable length |
1.5 m |
Cable type |
Round cable |
Product colour |
Black, Grey |
Connector material |
Gold |
Magnetically shielded |
Yes |
Maximum data transfer rate |
10 Gbit/s |
Connector 1 |
USB C |
Connector 2 |
USB A |
Connector contacts plating |
Gold |
USB version |
USB 3.2 Gen 2 (3.1 Gen 2) |
Connector 1 form factor |
Straight |
Connector 2 form factor |
Straight |
AWG wire size |
24/30/32 |
Connector 1 gender |
Male |
Connector 2 gender |
Male |
Conductor material |
Tinned copper |
Cable jacket material |
Polyvinyl chloride (PVC) |
Connector shielding |
Yes |
Connector shield material |
Copper |
Contact material |
Phosphor bronze |
Nominal attenuation |
0.5Mhz ?" 15Ghz 40db |
Connector housing material |
Polyvinyl chloride (PVC) |
LOGISTICS DATA
|
Harmonized System (HS) code |
84733080 |
OPERATIONAL CONDITIONS
|
Storage temperature (T-T) |
-25 - 85 °C |
Operating temperature (T-T) |
-20 - 80 °C |
OTHER FEATURES
|
Storage temperature (T-T) |
-25 - 85 °C |
Operating temperature (T-T) |
-20 - 80 °C |
PACKAGING CONTENT
|
Quantity per pack |
1 pc(s) |
PACKAGING DATA
|
Package type |
Polybag |
Quantity per pack |
1 pc(s) |
TECHNICAL DETAILS
|
Harmonized System (HS) code |
84733080 |
WEIGHT & DIMENSIONS
|
Cable length |
1.5 m |
Cable diameter |
4.5 mm |
Connector 1 dimensions (WxDxH) |
15.5 x 35 x 7.8 mm |
Connector 2 dimensions (WxDxH) |
12.7 x 30.8 x 7.3 mm |
Bend radius (min) |
4.5 cm |
