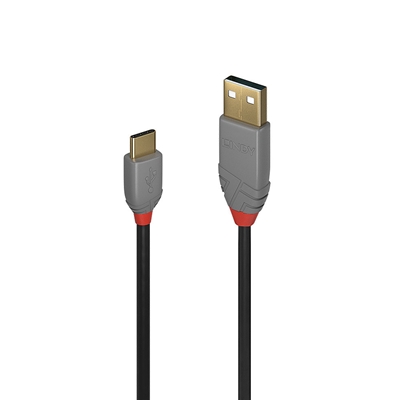

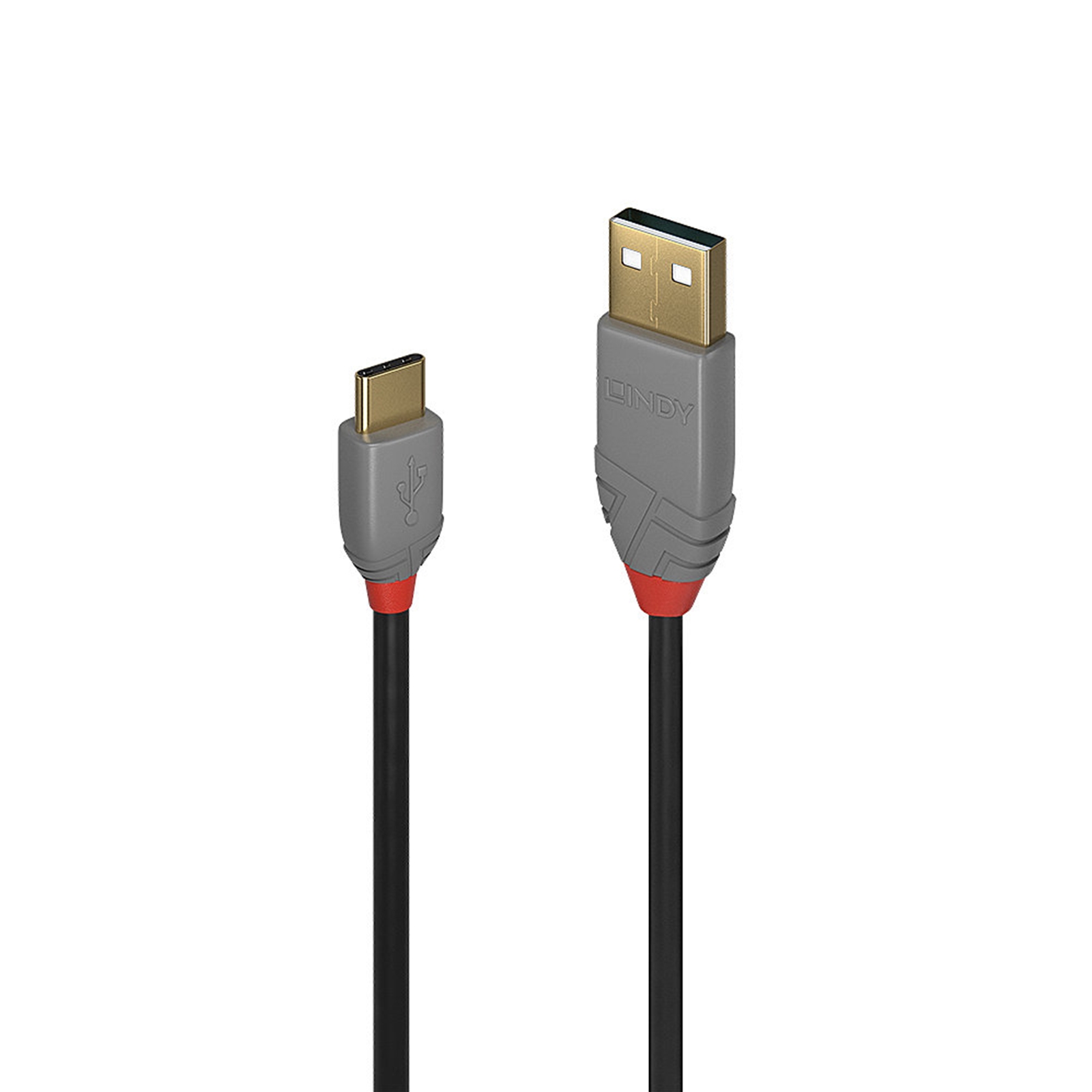

Lindy 3m USB 2.0 Type A to C Cable, Anthra Line

Key Features
Professional choice USB 2.0 Type A to C cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, gold plated connectors and contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to C cables are available in lengths from 0.5m to 3m.

Connectors

Connector A
USB 2.0 Type A Male

Connector B
USB 2.0 Type C Male

Housing Material
PVC

Connector Plating
24K Gold Plated

Pin Construction
Phosphor Bronze

Pin Plating
24K Gold Plated

Dimensions

USB Type A (approx.) W x D x H
15.5 x 35.1 x 7.8 mm (0.61 x 1.38 x 0.31 in)

USB Type C (approx.) W x D x H
11.0 x 25.5 x 7.3 mm (0.43 x 1.00 x 0.29 in)

Cable Construction

Length
3 m (9.84 ft)

Standard
USB 2.0

Colour
Black

Type
Round

Jacket Diameter
3.5 mm (0.14 in)

Jacket Material
PVC

Conductor Material
Tinned Copper

Conductor Gauge
28AWG

Shielding
Copper Braid 60%

Specifications

Supported Bandwidth
480GMbps

Maximum Resolution
N/A

Nominal Attenuation
0.5-3m: 0.5Mhz – 400Mhz < 5.8db

Minimum Bend Radius
35 mm (1.38 in)

Operating Temperature
-20°C - 80°C (-4°F - 176°F)

Storage Temperature
-25°C - 85°C (-13°F - 185°F)

Miscellaneous


Packaging Type
Polybag

Warranty (Years)
10

Certificated
RoHS, REACH, UL
