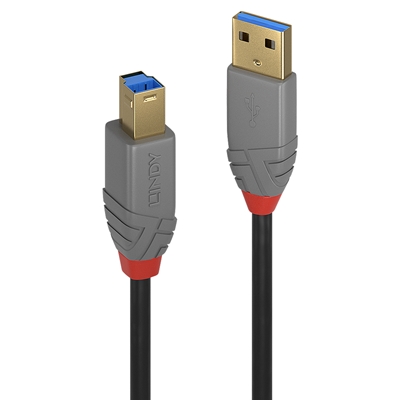

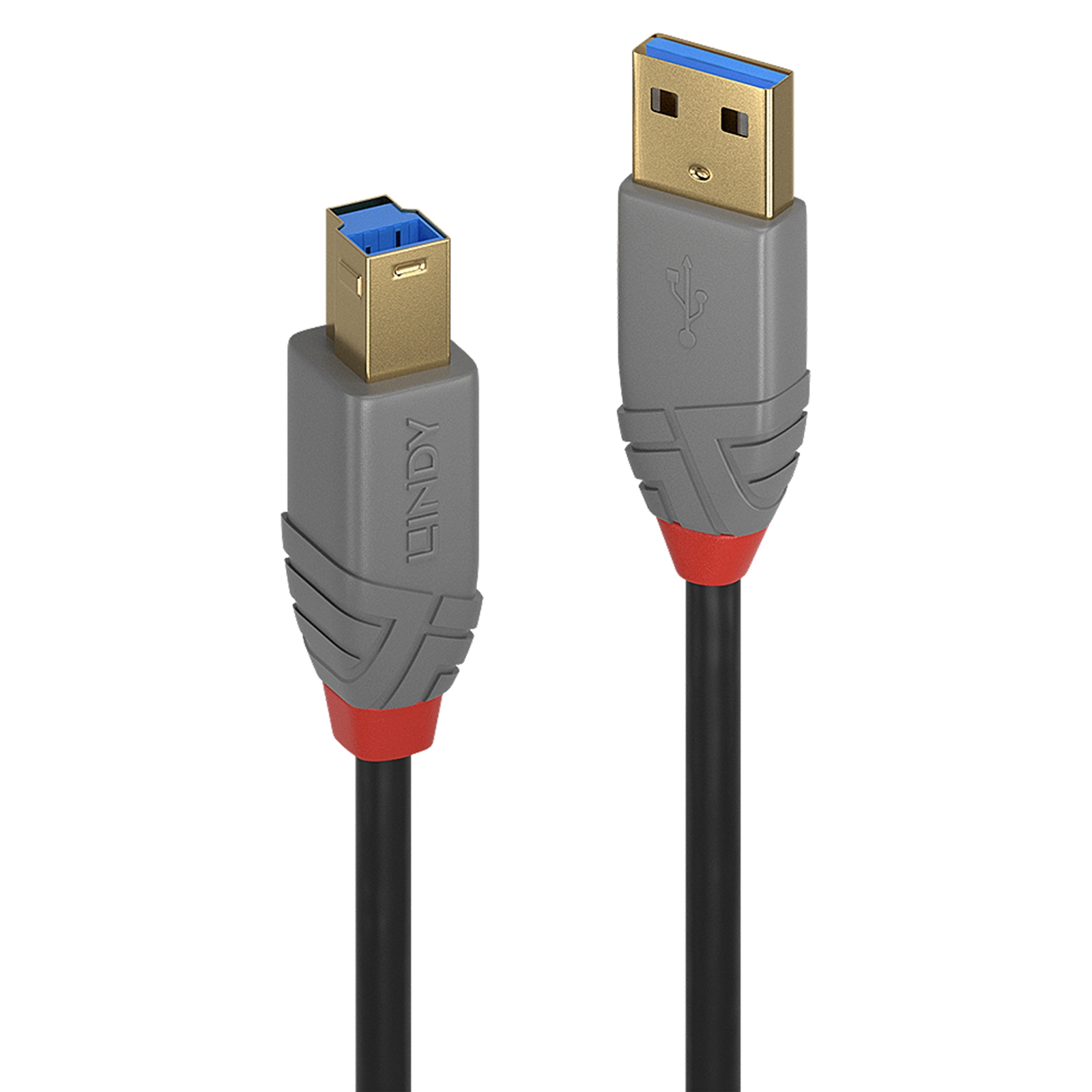

Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations
SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty

The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.

We have adapted the naming of our USB 3 cables to follow the updated USB specification.

USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps

USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps

USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Manufacturer's Website:

www.lindy.co.uk

Warranty:

2 Year Return To Base Warranty

FEATURES
Certification	RoHS, REACH, UL
Maximum data transfer rate	5000 Mbit/s
Cable length	5 m
Cable type	Round cable
Product colour	Black
Connector material	Gold
Maximum data transfer rate	5 Gbit/s
Connector 1	USB A
Connector 2	USB B
Connector contacts plating	Gold
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/28
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector shielding	Yes
Connector shield material	Aluminium
Contact material	Copper
Nominal attenuation	0.5-5m: 0.5MHz-7.5GHz25DB
Connector housing material	Polyvinyl chloride (PVC)
LOGISTICS DATA
Harmonized System (HS) code	84733080
OPERATIONAL CONDITIONS
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C
OTHER FEATURES
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C
PACKAGING CONTENT
Quantity per pack	1 pc(s)
PACKAGING DATA
Package type	Polybag
Quantity per pack	1 pc(s)
TECHNICAL DETAILS
Harmonized System (HS) code	84733080
WEIGHT & DIMENSIONS
Cable length	5 m
Cable diameter	5.5 mm
Connector 1 dimensions (WxDxH)	12 x 4.5 x 36 mm
Connector 2 dimensions (WxDxH)	6.6 x 7.3 x 34.4 mm
Bend radius (min)	4.8 cm
