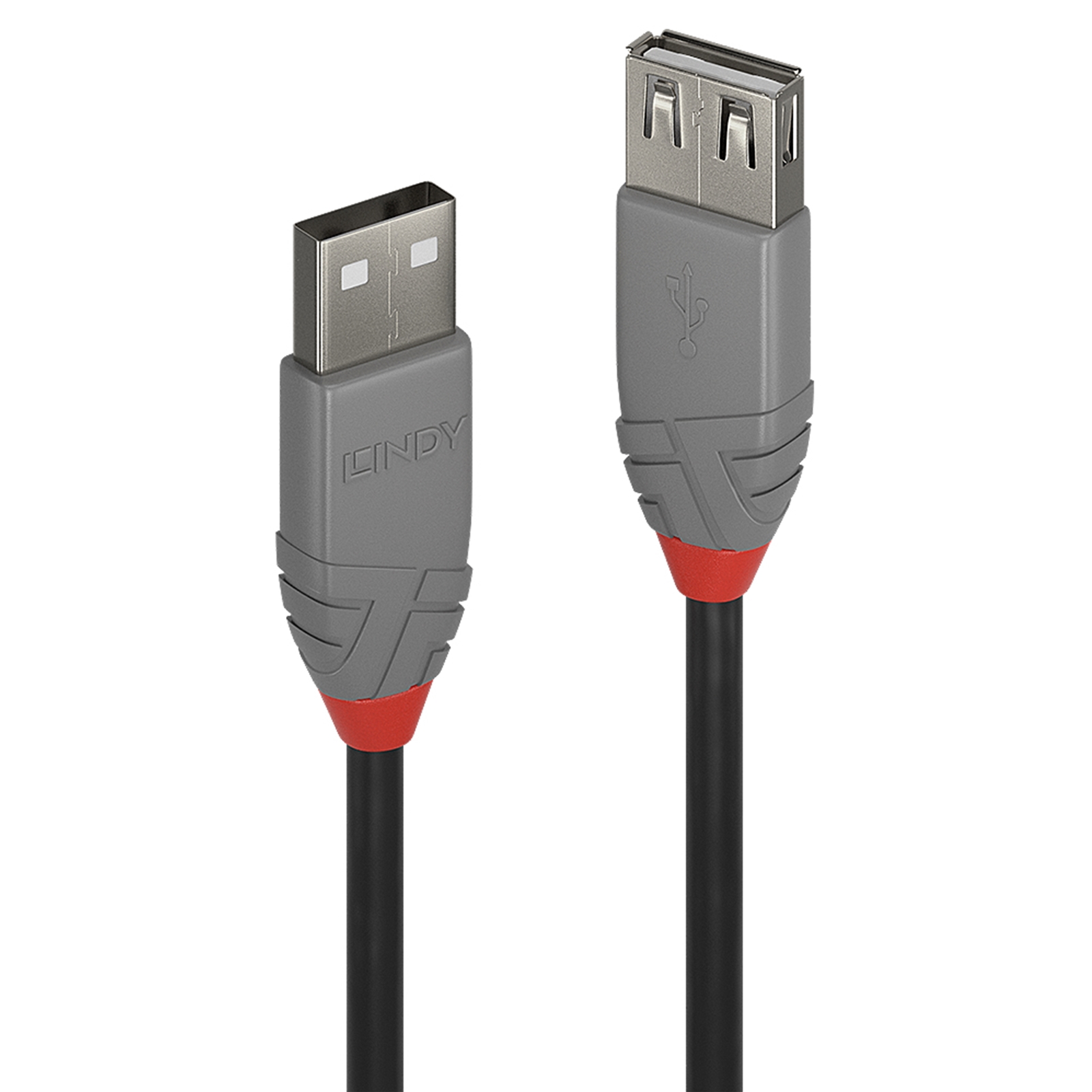

Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold plated contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m, 0.5m, 1m, 2m, 3m and 5m

Manufacturer's Website:

www.lindy.co.uk

Warranty:

2 Year Return To Base Warranty

FEATURES
Certification	RoHS, REACH, UL
Maximum data transfer rate	480 Mbit/s
Cable length	3 m
Cable type	Round cable
Product colour	Black, Grey
Connector material	Nickel
Magnetically shielded	Yes
Maximum data transfer rate	0.48 Gbit/s
Connector 1	USB A
Connector 2	USB A
Connector contacts plating	Gold
USB version	USB 2.0
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/28
Connector 1 gender	Male
Connector 2 gender	Female
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector shielding	Yes
Connector shield material	Aluminium
Contact material	Copper
Nominal attenuation	5.8db/km
Connector housing material	Polyvinyl chloride (PVC)
LOGISTICS DATA
Harmonized System (HS) code	84733080
OPERATIONAL CONDITIONS
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C
OTHER FEATURES
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C
PACKAGING CONTENT
Quantity per pack	1 pc(s)
PACKAGING DATA
Package type	Polybag
Quantity per pack	1 pc(s)
TECHNICAL DETAILS
Harmonized System (HS) code	84733080
WEIGHT & DIMENSIONS
Cable length	3 m
Cable diameter	4.4 mm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)	17 x 35 x 9.8 mm
Bend radius (min)	1.6 cm
