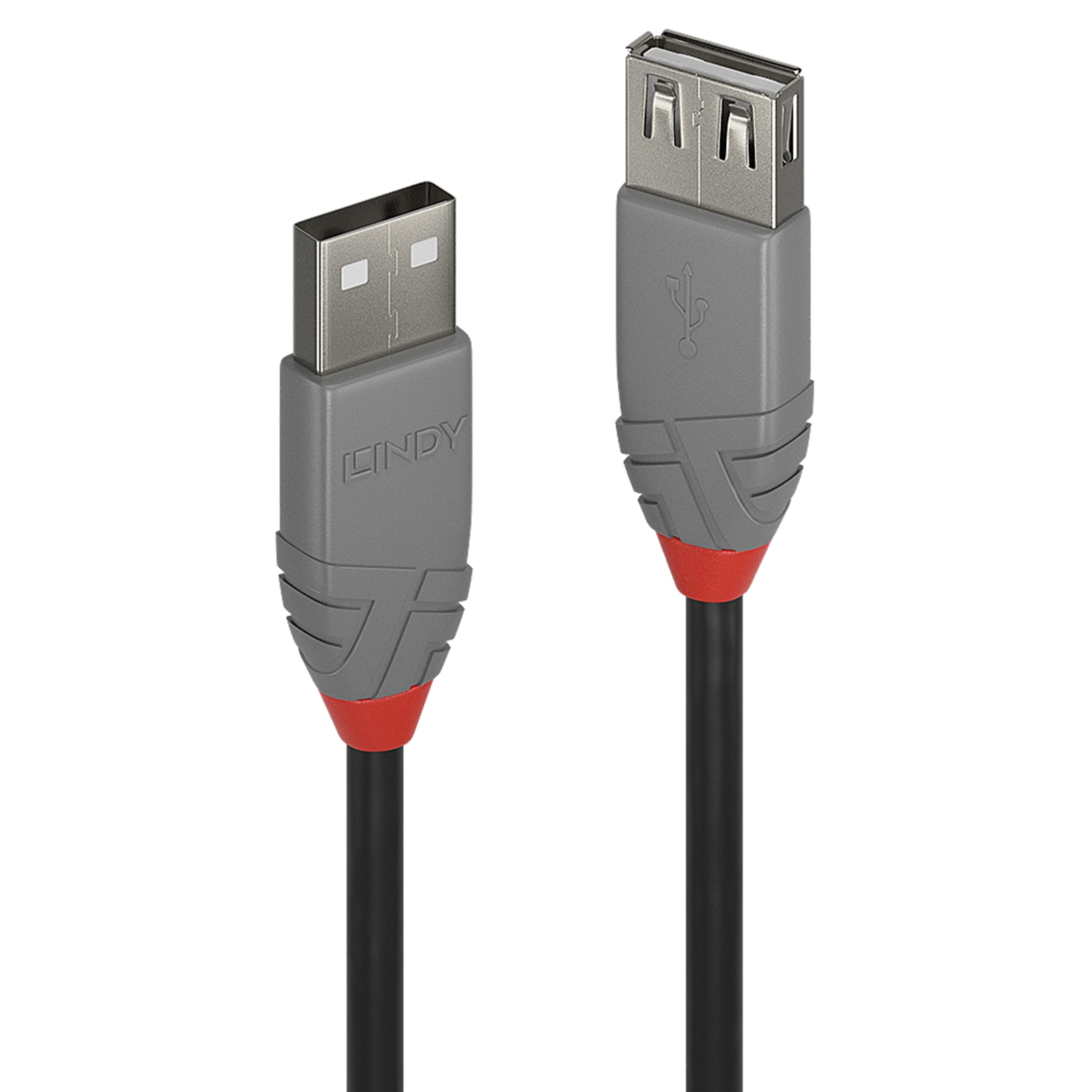

Lindy 2m USB 2.0 Type A Extension Cable, Anthra Line
Key Features
Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold plated contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.
Connectors
Connector A
USB 2.0 Type A Male
Connector B
USB 2.0 Type A Female
Housing Material
PVC
Connector Plating
Nickel
Pin Construction
Copper
Pin Plating
24K Gold
Dimensions
USB A Male (approx.) W x D x H
15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in)
USB A Female (approx.) W x D x H
17 x 35 x 9.8 mm (0.67 x 1.38 x 0.39 in)
Cable Construction
Length
2 m (6.56 ft)
Standard
USB 2.0
Colour
Black
Type
Round
Jacket Diameter
4.4 mm (0.17 in)
Jacket Material
PVC
Conductor Material
Tinned Copper
Conductor Gauge
26/28AWG
Shielding
Aluminium Magnesium Braid
Specifications
Supported Bandwidth
480Mbps
Maximum Resolution
N/A
Nominal Attenuation
5.8db/km
Minimum Bend Radius
16 mm (0.63 in)
Operating Temperature
0°C - 60°C (32°F - 140°F)
Storage Temperature
0°C - 60°C (32°F - 140°F)
Miscellaneous
Packaging Type
Polybag
Warranty (Years)
10
Certificated
RoHS, REACH, UL
Warranty:
https://www.lindy.co.uk/returns-i36
Tel: 01642 754040 Fax: 01642 754049
Email: technical@lindy.co.uk
FEATURES
|
Certification |
RoHS, REACH, UL |
Maximum data transfer rate |
480 Mbit/s |
Cable length |
2 m |
Cable type |
Round cable |
Product colour |
Black, Grey |
Connector material |
Nickel |
Magnetically shielded |
Yes |
Maximum data transfer rate |
0.48 Gbit/s |
Connector 1 |
USB A |
Connector 2 |
USB A |
Connector contacts plating |
Gold |
USB version |
USB 2.0 |
Connector 1 form factor |
Straight |
Connector 2 form factor |
Straight |
AWG wire size |
26/28 |
Connector 1 gender |
Male |
Connector 2 gender |
Female |
Conductor material |
Tinned copper |
Cable jacket material |
Polyvinyl chloride (PVC) |
Connector shielding |
Yes |
Connector shield material |
Aluminium |
Contact material |
Copper |
Nominal attenuation |
5.8db/km |
LOGISTICS DATA
|
Harmonized System (HS) code |
84733080 |
OPERATIONAL CONDITIONS
|
Storage temperature (T-T) |
0 - 60 °C |
Operating temperature (T-T) |
0 - 60 °C |
OTHER FEATURES
|
Storage temperature (T-T) |
0 - 60 °C |
Operating temperature (T-T) |
0 - 60 °C |
PACKAGING CONTENT
|
Quantity per pack |
1 pc(s) |
PACKAGING DATA
|
Package type |
Polybag |
Quantity per pack |
1 pc(s) |
TECHNICAL DETAILS
|
Harmonized System (HS) code |
84733080 |
WEIGHT & DIMENSIONS
|
Cable length |
2 m |
Cable diameter |
4.4 mm |
Connector 1 dimensions (WxDxH) |
15.5 x 35 x 7.8 mm |
Connector 2 dimensions (WxDxH) |
17 x 35 x 9.8 mm |
Bend radius (min) |
1.6 cm |
