- Professional choice USB 2.0 Type A to B cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistant tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty

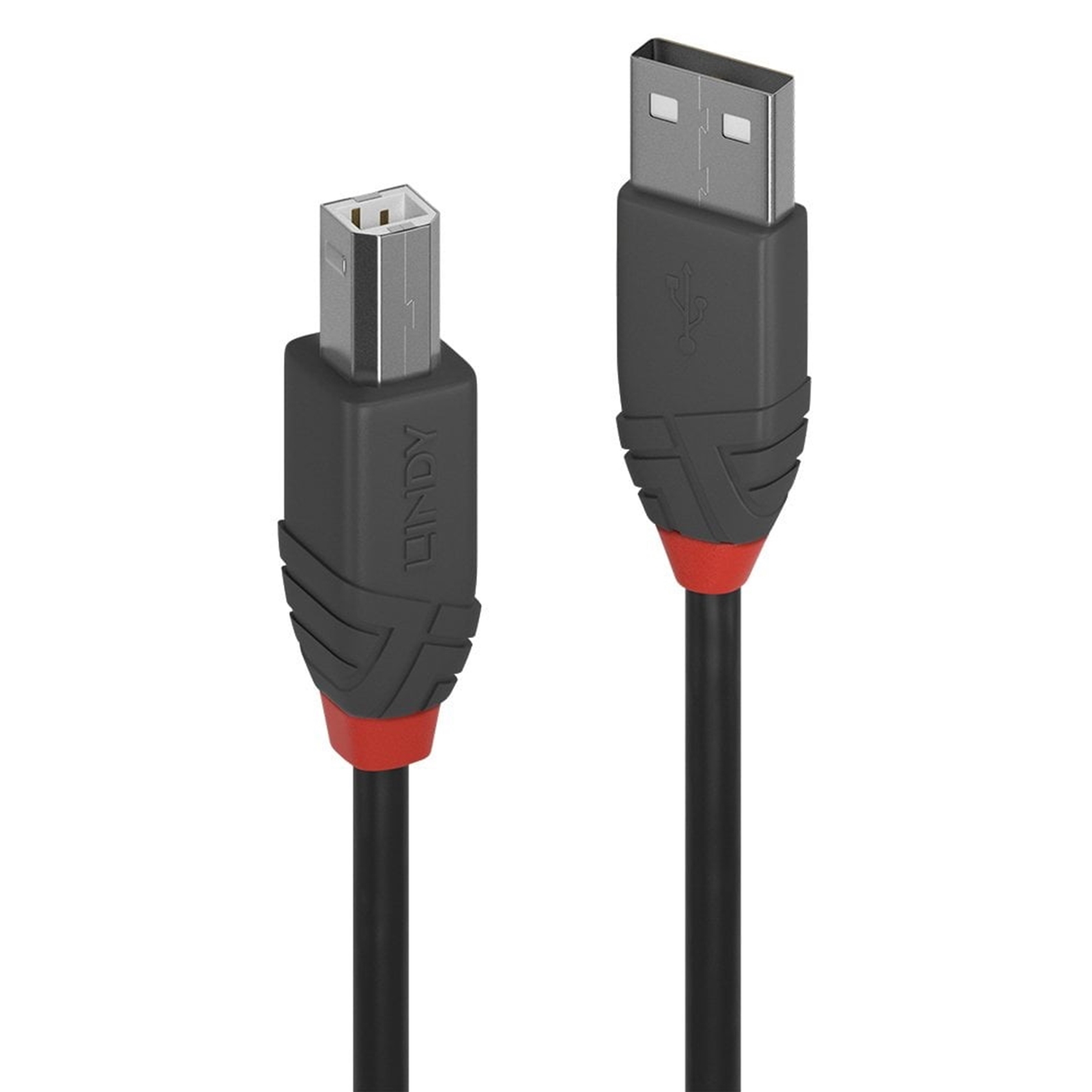

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.

Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type B Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold
Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
Dimensions, USB B (approx.) WxDxH: 11.8x35x10.2mm (0.47x1.38x0.40in)

Cable Construction
Length: 1m (3.28ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid

Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Manufacturer's Website:

www.lindy.co.uk

Warranty:

10 Year Return To Base

FEATURES
Certification	RoHS, REACH, UL
Maximum data transfer rate	480 Mbit/s
Cable length	1 m
Cable type	Round cable
Product colour	Black
Connector material	Nickel
Maximum data transfer rate	0.48 Gbit/s
Connector 1	USB A
Connector 2	USB B
Connector contacts plating	Gold
USB version	USB 2.0
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/28
Connector 1 gender	Male
Connector 2 gender	Male
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector shielding	Yes
Connector shield material	Aluminium
Contact material	Copper
Nominal attenuation	5.8db/km
Connector housing material	Polyvinyl chloride (PVC)
LOGISTICS DATA
Harmonized System (HS) code	84733080
OPERATIONAL CONDITIONS
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C
OTHER FEATURES
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C
PACKAGING CONTENT
Quantity per pack	1 pc(s)
PACKAGING DATA
Package type	Polybag
Quantity per pack	1 pc(s)
TECHNICAL DETAILS
Harmonized System (HS) code	84733080
WEIGHT & DIMENSIONS
Cable length	1 m
Cable diameter	4.4 mm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)	11.8 x 35 x 10.2 mm
Bend radius (min)	1.6 cm
