A converter allows devices which use different interfaces e.g. HDMI and DVI to connect to one another by converting one signal to the other.

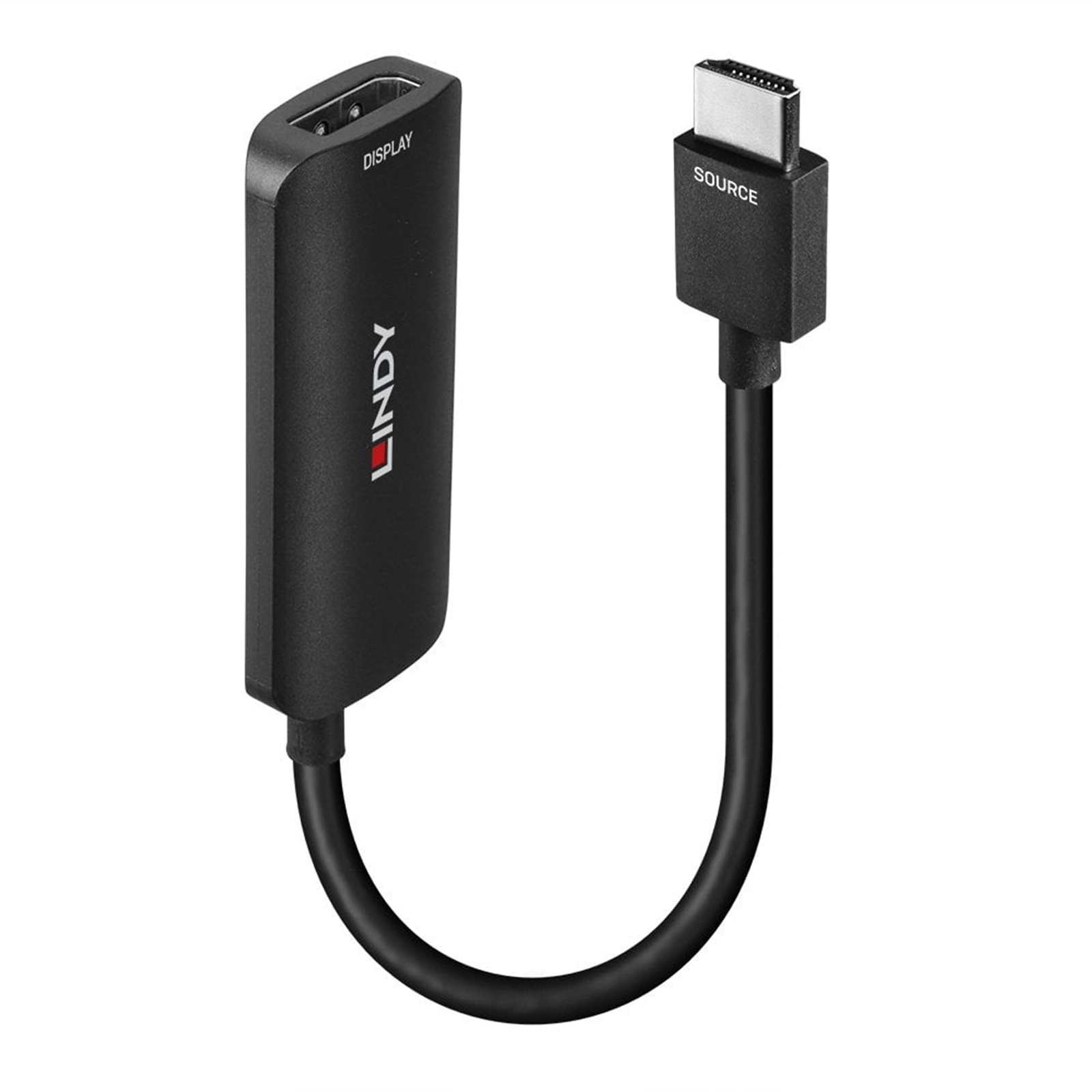

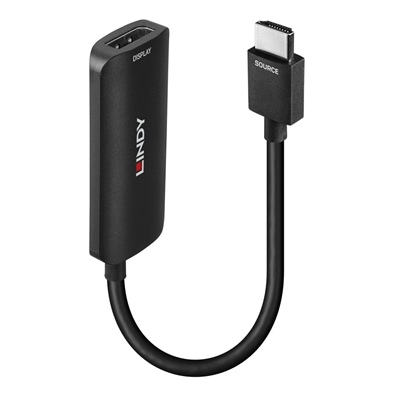

The Lindy HDMI 4K60 to DisplayPort 1.2 Converter allows the connection of HDMI source devices, such as a PC, Blu-ray player or media player to DisplayPort monitors digital signage and LFDs (Large Format Displays). Supporting resolutions up to 3840x2160@60Hz 4:4:4 8bit, this converter ensures superior clarity content within innovative workspaces, engaging collaboration environments and educational setups. Immersive multi-channel audio is supported up to 7.1CH to compliment the video on screen.
For added convenience the converter features a USB power cable, allowing the converter to be externally powered when used with low power HDMI sources. The converter can also be used to add an additional display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug & play installation.
Specifications
AV Interface: HDMI to DisplayPort
Interface Standard: HDMI 2.0, DisplayPort 1.2
Supported Bandwidth: 21.6Gbps
Maximum Input Resolution: 3840x2160@60Hz 4:4:4 8Bit
Maximum Output Resolution: 3840x2160@60Hz 4:4:4 8bit
Chipset: LT6711A
HDCP Support: HDCP 2.2
Supported Audio: 96kHz/24bit
Separate Audio Ports: -
Special Features: Power via USB
Connectors
Input: HDMI Type A (Male)
Output:
DisplayPort (Female)
USB Micro-B (Female)
Physical Properties
Dimensions (approx.) WxDxH:
HDMI: 30x8x17mm (1,18x0,31x0,67in)
DP: 71x12x31mm (2,8x0,47x1,22in)
Cable Length: 157mm (6.18in), USB cable: 0.5m (1.64ft)
Housing Material: ABS
Jacket Material: PVC
Jacket Diameter: 4.8mm (0.19in)
Minimum Bend Radius: 25mm (0.98in)
Net Weight: 0.05kg (0.11lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 45°C (-4°F - 113°F)
Humidity: 20 - 70% RH (non-condensing)
Colour: Black
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS & REACH
Package Contents
HDMI to DisplayPort Converter
USB Type A to Micro-B Cable
|
FEATURES
|
| Chipset |
LT6711A |
| Cable length |
157 m |
| Cable type |
Round cable |
| Power source |
USB |
| Colour depth |
8 bit |
| Data transfer rate |
21.6 Gbit/s |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| HDMI version |
2.0 |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
DisplayPort |
| Maximum refresh rate |
60 Hz |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Jacket material |
Nylon/Polyvinyl Chloride (PVC) |
| DisplayPort version |
1.2 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Refresh rate at maximum resolution |
60 Hz |
| Colour sampling |
4:4:4 |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| Bend radius (min) |
2.5 cm |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
20 - 70% |
| Storage temperature (T-T) |
-20 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
PACKAGING DATA
|
| Package weight |
60 g |
| Package depth |
194 mm |
| Package height |
20 mm |
| Package width |
174 mm |
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
SUSTAINABILITY
|
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
TECHNICAL DETAILS
|
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
WEIGHT & DIMENSIONS
|
| Weight |
50 g |
| Connector 1 dimensions (WxDxH) |
30 x 8 x 17 mm |
| Connector 2 dimensions (WxDxH) |
71 x 12 x 31 mm |
