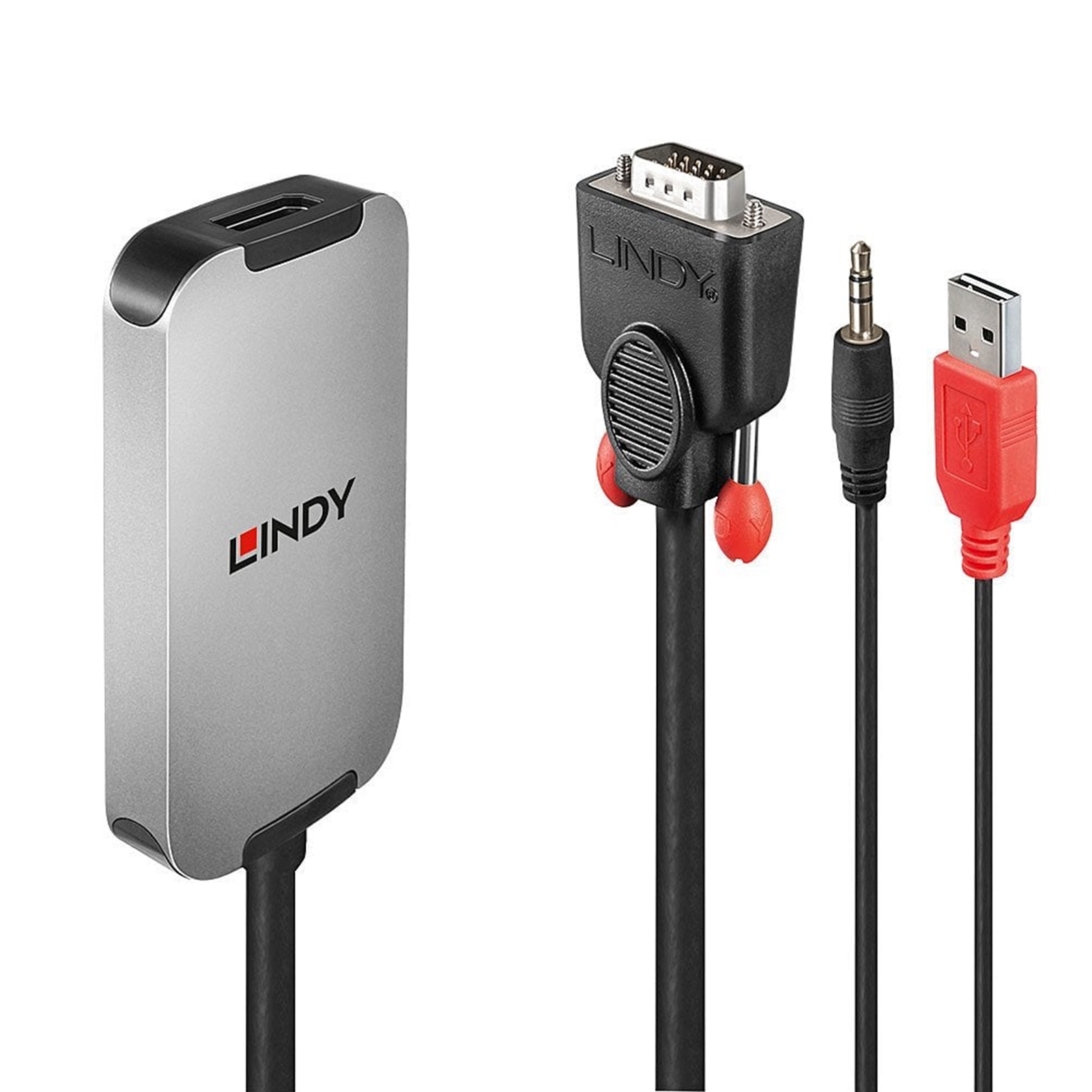

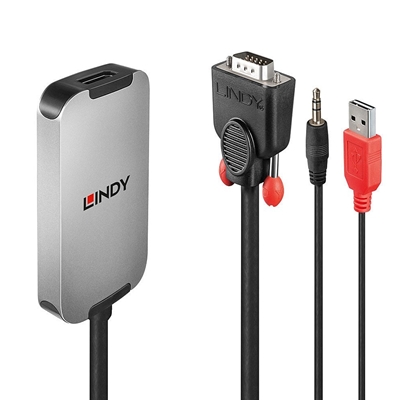

The Lindy VGA to DisplayPort Converter is a compact, premium solution for connecting a DisplayPort monitor or display to legacy VGA source devices. Supporting resolutions up to Full HD, this sleek converter is perfect for use in offices at home, in the workplace or in education, or for connecting analogue PC systems to eye-catching digital signage displays.

An additional 3.5mm VGA audio connection also allows for audio to be embedded into DisplayPort to provide 2CH stereo to compliment a professional video experience, while a separate USB Type A connection ensures there is always enough power for even the most demanding scenarios.

Specifications

AV Interface:
VGA to DisplayPort

Interface Standard:
VGA, DisplayPort 1.2

Supported Bandwidth:
4.95Gbps

Maximum Input Resolution:
1920x1080

Maximum Output Resolution:
1920x1080@60Hz RGB 8bit

Chipset:
SiL8784CNUC
STDP2600

Supported Audio:
Stereo via 3.5mm

Separate Audio Ports:
3.5mm Stereo Audio Plug

Special Features:
USB Type A Male for power

Connectors

Input:
VGA Male, 3.5mm Male Stereo Audio, USB Type A Male (Power)

Output:
DisplayPort Female

Physical properties

Dimensions (approx.) WxDxH:
50x95x15mm (1.97x3.74x0.59in)

Cable Length:
180mm (7.09in)

Housing Material:
Aluminium

Jacket Material:
PVC

Jacket Diameter:
6mm (0.24in)

Net Weight:
0.114kg (0.25lb)

Operating Temperature:
0°C - 70°C (32°F - 158°F)

Storage Temperature:
-10°C - 80°C (14°F - 176°F)

Humidity:
20 - 85% RH (non-condensing)

Colour:
Black

Miscellaneous

Packaging Type:
Polybag

Packaging Dimensions:
174x194x20mm (6.85x7.64x0.79in)

Gross Weight:
0.122kg (0.27lb)

Warranty (Years):
2

Certified:
CE, UKCA, FCC, RoHS & REACH

Package Contents
VGA to DisplayPort 1.2 Converter
