- Entry level DisplayPort cable for home and small office applications
- Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 10bit
- Robust PVC housing, nickel connectors, 24K gold plated contacts
- Triple shielded cable, corrosion resistant copper 30AWG conductors
- DisplayPort 1.2, 4K, 3D, 21.6Gbps; 10 year warranty

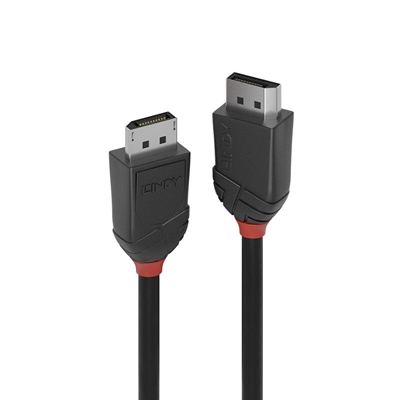

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Black Line DisplayPort cables are available in lengths from 0.5m to 3m.

Connectors
Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in)

Cable Construction
Length: 3m (9.84ft)
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Copper Braid 80%

Specifications
Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation: 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Minimum Bend Radius: 48mm (1.89in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Manufacturer's Website:

www.lindy.co.uk

Warranty:

10 Year Return To Base

FEATURES
Certification	RoHS, REACH, UL
Plug and Play	Yes
Cable length	3 m
Cable type	Round cable
Data transfer rate	21.6 Gbit/s
Maximum resolution	4096 x 2160 pixels
Product colour	Black
Connector material	Nickel
Supported graphics resolutions	4096 x 2160
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector contacts plating	Gold
Maximum refresh rate	60 Hz
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	30
Cable material	Copper
Cable shielding	Copper
DisplayPort version	1.2
Connector 1 gender	Male
Connector 2 gender	Male
Contact material	Phosphor bronze
Colour sampling	4:4:4
Nominal attenuation	300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Connector housing material	Acrylonitrile butadiene styrene (ABS)
Bend radius (min)	4.8 cm
LOGISTICS DATA
Harmonized System (HS) code	84733080
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-25 - 85 °C
Operating temperature (T-T)	-20 - 80 °C
PACKAGING DATA
Package type	Polybag
Cable diameter	6 mm
Quantity per pack	1 pc(s)
Connector 1 dimensions (WxDxH)	21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)	21 x 38.9 x 13.6 mm
TECHNICAL DETAILS
Harmonized System (HS) code	84733080
