- Entry level HDMI Male to DVI-D Male cable for home and small office applications
- Supports DVI resolutions up to 1920x1200@60Hz and HDTV resolutions up to 1080p
- Robust PVC housing, nickel connectors, 24K gold plated contacts
- Tripled shielded cable, corrosion resistant tinned copper 30AWG conductors
- 10 year warranty

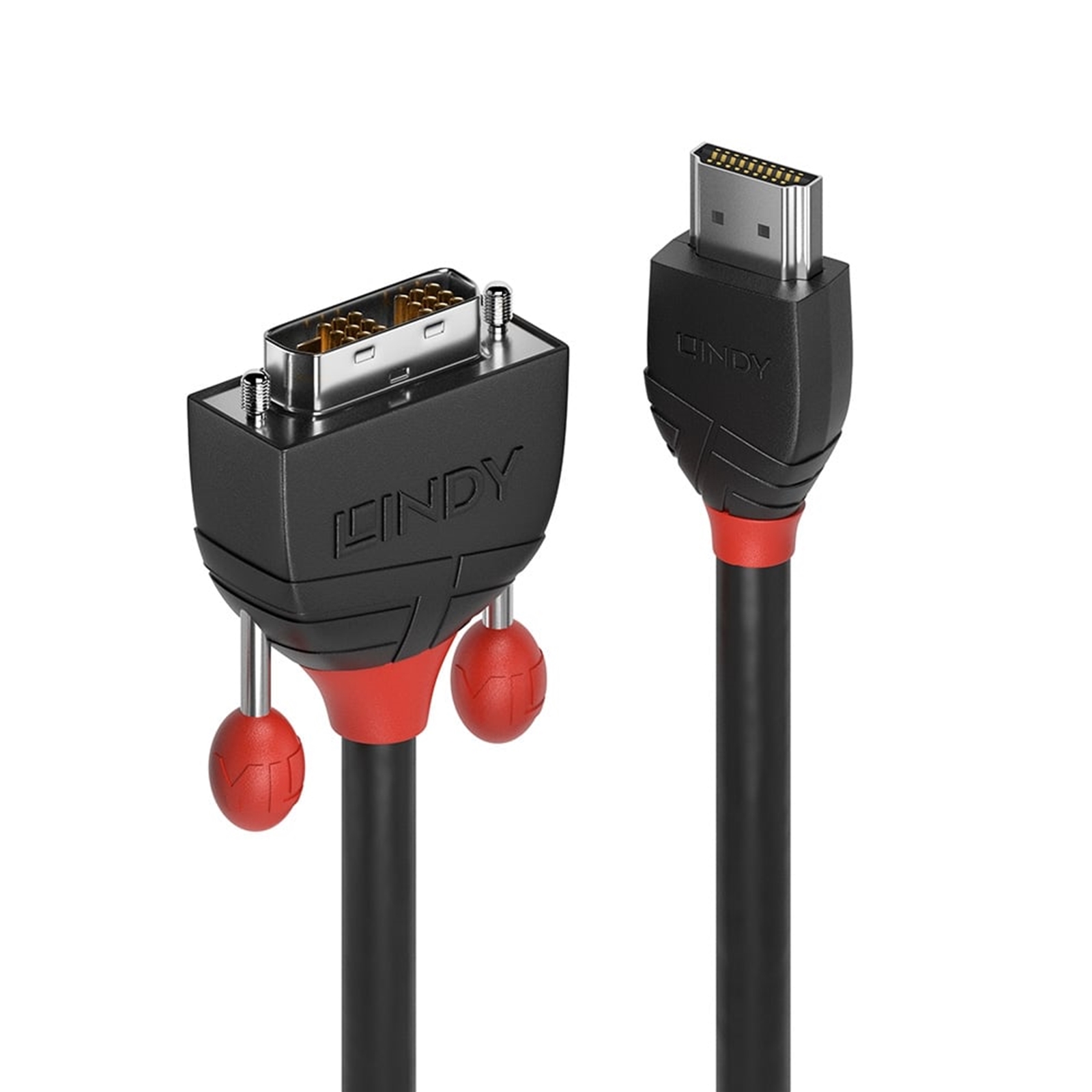

From the Lines cable connectivity concept developed by Lindy, Black Line HDMI to DVI-D cables are fully featured, entry level connection solutions, perfect for connecting PCs to monitors or projectors.
Black Line HDMI to DVI-D cables feature triple shielded construction with 30AWG tinned copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.
Black Line HDMI to DVI-D cables support resolutions up to 1920x1200@60Hz including HDTV resolutions up to 1080p.
Black Line HDMI to DVI-D cables are available in lengths of 0.5m to 10m.
Connectors
Connector A: HDMI Type A Male
Connector B: DVI-D Male (Single Link)
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: 24K Gold 1µm
Dimensions, HDMI Connector (approx.) WxDxH: 21.4x34.2x12.7mm (0.84x1.35x0.5in)
Dimensions, DVI Connector (approx.) WxDxH: 36.8x44.5x12.5mm (1.45x1.75x0.49in)
Cable Construction
Length: 2m (6.56ft)
Standard: DVI-D Single Link
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 30AWG
Shielding: Aluminium/Magnesium Braid 85%
Specifications
Supported Bandwidth: 4.95Gbps
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation: 1 – 825Mhz < 12db
Minimum Bend Radius: 55mm (2.17in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
Warranty:
https://www.lindy.co.uk/returns-i36
Tel: 01642 754040 Fax: 01642 754049
Email: technical@lindy.co.uk
|
FEATURES
|
| Certification |
RoHS, REACH, UL |
| Cable length |
2 m |
| Cable type |
Round cable |
| Data transfer rate |
4.95 Gbit/s |
| Maximum resolution |
1920 x 1200 pixels |
| Product colour |
Black |
| Connector material |
Nickel |
| Dual Link DVI |
No |
| Supported graphics resolutions |
1920 x 1200 (WUXGA) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
DVI-D |
| Connector contacts plating |
Gold |
| Maximum refresh rate |
60 Hz |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
30 |
| Cable shielding |
Aluminium braid |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Conductor material |
Tinned copper |
| Contact material |
Brass |
| Nominal attenuation |
1 ?" 825Mhz 12db |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Bend radius (min) |
5.5 cm |
LOGISTICS DATA
|
| Harmonized System (HS) code |
84733080 |
OPERATIONAL CONDITIONS
|
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating temperature (T-T) |
-20 - 80 °C |
PACKAGING DATA
|
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
84733080 |
WEIGHT & DIMENSIONS
|
| Cable diameter |
5.5 mm |
| Connector 1 dimensions (WxDxH) |
21.4 x 34.2 x 12.7 mm |
| Connector 2 dimensions (WxDxH) |
36.8 x 44.5 x 12.5 mm |
