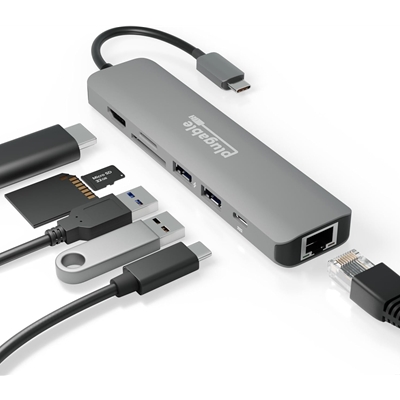

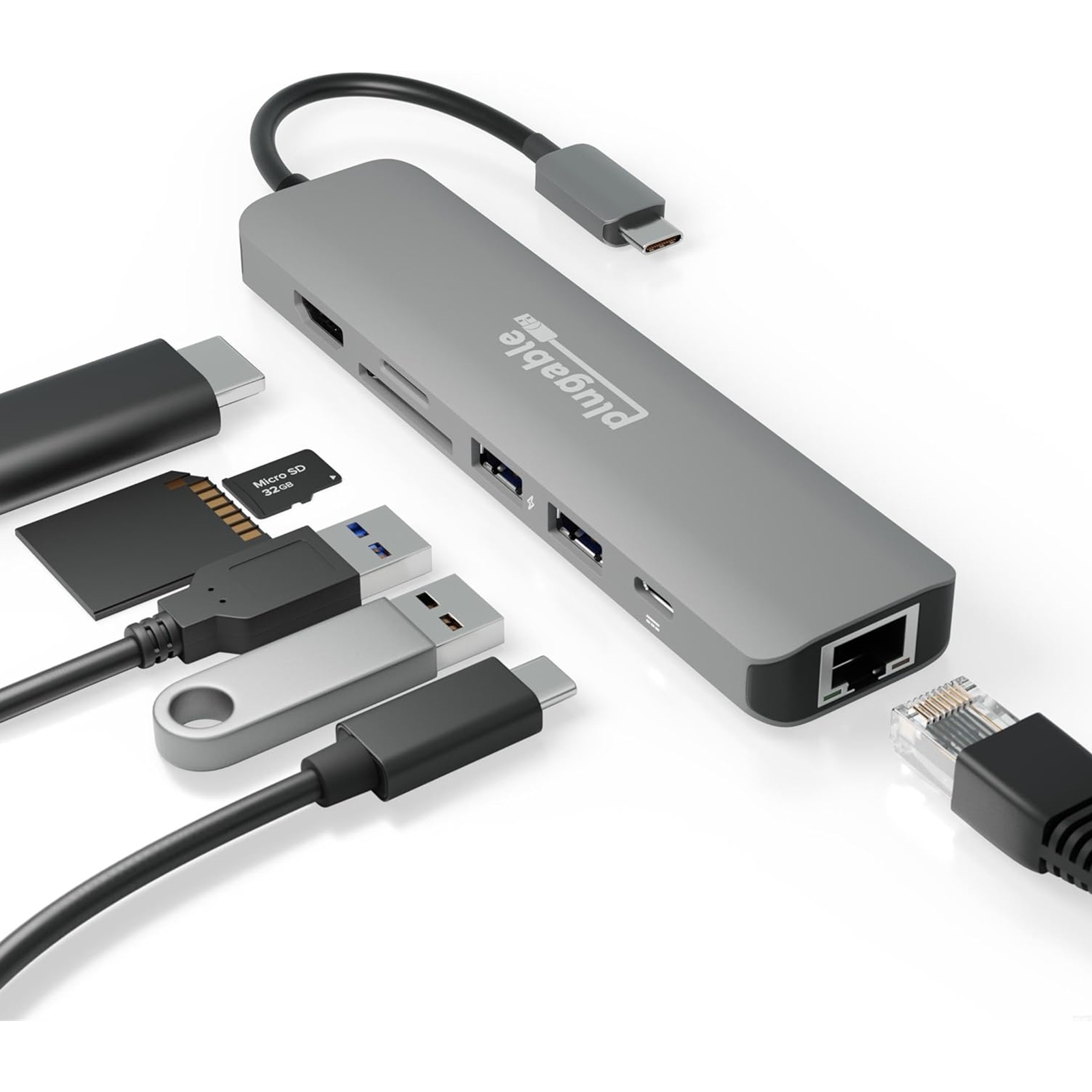

Plugable USBC-7IN1E Portable USB-C Ethernet Docking Station

Key Specifications
Dock TypePortable
ConnectionThunderBolt and USB-C
Monitor Support1 Display
CompatibilityWindows, Chrome, Linux and Mac
/productImages/80/LDPLU-USBC-7IN1E.JPG
/productImages/80/200315.JPG
/productImages/80/200316.JPG
/productImages/80/200317.JPG
/productImages/80/200318.JPG
/productImages/80/200319.JPG
/productImages/80/200320.JPG
Manufacturer : PLUGABLE
EAN : 819927012436
Manufacturer Part Code : USBC-7IN1E
Weight : 0.23 kg
Login For Pricing

Key Specifications
Dock TypePortable
ConnectionThunderBolt and USB-C
Monitor Support1 Display
CompatibilityWindows, Chrome, Linux and Mac
Manufacturer :
PLUGABLE

EAN :
819927012436

Manufacturer Part Code :
USBC-7IN1E

Weight :
0.23 kg
Recommended Products
1464Accessories
See details
1314Laptop Accessories
See details
1298Enclosures & Docks
See details
1349Mains Power & Extensions
See details

7 in 1 Expansion
Transform a single USB C or Thunderbolt port into a 7-in-1 USB-C hub with 2x USB 3.0 ports, 1x 4K HDMI, 1x Gigabit Ethernet port, 1x SD card reader, 1x microSD card slot, and 1x USB-C Power Delivery charging port

4K HDMI Display
The 4K USB-C to HDMI adapter can push your creativity to the next screen with resolutions up to 4K 60Hz. The sturdy and compact metal construction means the USB Type C hub packs perfectly into a pack

High-Speed Data and Charging
USB 3.0 ports for fast 5Gbps data transfer, SD and Micro SD card slots for versatility, and 100W USB-C pass-through charging means charging at max speed (not all laptops support USB-C PD)

Reliable Performance
Use all the ports at once or one at a time, this Type-C Thunderbolt 3 hub has simultaneous port functionality and intelligent power handling. So no overdrawing power, screen flicker, or port problems common in other USB hubs

Through a single connection, make space for your preferred peripherals. The Plugable 7-in-1 USB-C Hub (USBC-7IN1E) lets you connect an extra 4K HDMI monitor, two USB devices like a mouse and keyboard, wired Gigabit Ethernet, SD or microSD cards, and 100W charging.

This compact and ruggedly constructed USB-C hub is engineered to fix the issues most commonly associated with USB hubs. With the latest, updated chipsets, you can expect a more reliable DisplayPort over USB-C signal, which means no more flickering screens. It also means intelligent power handling, which prevents overdrawing power. But most importantly, this hub supports consistency in port functionality so you can use all of the ports at the same time.

Charge Up
Don't waste a USB-C port on a charger. The USBC-7IN1E has pass-through charging so you can use all of your peripherals and charge your laptop at the same time, all through one USB-C port.

Supports USB-C Power Delivery (PD) input up to 100W.

Note: USB-C power adapter not included.

High Definition Display
You've got too much to do to be cooped up in a little laptop screen. Stretch out with an HDMI-equipped monitor, T.V., or projector and achieve resolutions up to 3840x2160 @ 60Hz (4K 60Hz).

Let's Connect
Two USB 3.0 (5Gbps data transfer speeds) ports let you connect anything from keyboards to storage devices.

SD and microSD card slots so you can quickly transfer the images and videos on your camera without actually connecting your camera.

Gigabit Ethernet port so you can connect to the world even if you can't connect to the WiFi.

Compatibility
Plug and Play installation on any Chromebook/Windows/Mac/Linux hosts which support Alternate Mode (Alt Mode) video output functionality. Adapter has been fully tested for functionality on the 2018+ iPad Pro (mirroring only)/MacBook Air/iMac and iMac Pro/MacBook and MacBook Pro/Google Pixelbook/Dell XPS 13 & XPS 15/Lenovo Thinkpad/HP Spectre x360/Samsung DeX capable devices/Surface Laptop 3 and Surface Go/and many other systems which support USB-C Alt Mode.

In the Box
1x Plugable USB-C 7-in-1 hub
1x Quick Start Guide
Manufacturer's Website:
Warranty:
2 Year Return To Base Warranty
ENERGY MANAGEMENT
Power source type USB
NETWORKING
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 1000 Mbit/s
Copper ethernet cabling technology 1000BASE-T
PACKAGING CONTENT
Quick start guide Yes
Packaging content 1x Plugable USB-C 7-in-1 hub 1x Quick Start Guide
PERFORMANCE
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Plug and Play Yes
Data transfer rate 5 Gbit/s
Product colour Black
Card reader integrated Yes
Maximum digital resolution 3840 x 2160 pixels
Maximum refresh rate 60 Hz
HD type 4K Ultra HD
PORTS & INTERFACES
Connectivity technology Wired
Microphone in No
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity 1
HDMI version 2.0
HDCP Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Type-C DisplayPort Alternate Mode Yes
USB Power Delivery Yes
USB Power Delivery up to 87 W
SOFTWARE
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported Yes
Linux operating systems supported Yes
Other operating systems supported Android, ChromeOS, iOS
