Target Components

14-in-1 Expansion
40Gbps Thunderbolt dock expands to 2x HDMI or DisplayPort monitors each supporting up to 4K 60Hz, 1x USB-C, 6x USB-A, Gigabit Ethernet, Audio In/Out, SD/microSD, all through a single included 2.6ft 40Gbps certified Thunderbolt cable

100W Max Power
The TBT3-UDZ laptop dock delivers up to 100W PD (96W certified) laptop charging rate for Thunderbolt and USB-C devices, while also safely charging laptops with lower charging requirements. Maximize compatibility with Thunderbolt and USB-C systems

Versatile Dual 4K Displays
This dual DisplayPort and dual HDMI Thunderbolt dock design is the first Thunderbolt 3 docking station to offer a choice to mix and match HDMI or DisplayPort for dual displays. Drive up to two 4K 60Hz displays via Thunderbolt 3, Thunderbolt 4, or USB4. Supports up to two 1080p 60Hz displays via USB-C

Compatibility
Thunderbolt dock compatible with M1/M2/M3 Pro/Max, and Intel CPU Thunderbolt 3 Macs like the MacBook Pro 16". Supports Windows systems with Thunderbolt, USB4, and USB Type-C. Base model Apple Silicon chips support single extended display. Capabilities on non-Thunderbolt USB-C laptops are dependant on host system; only one external screen on base M1 / M2 / M3 chips

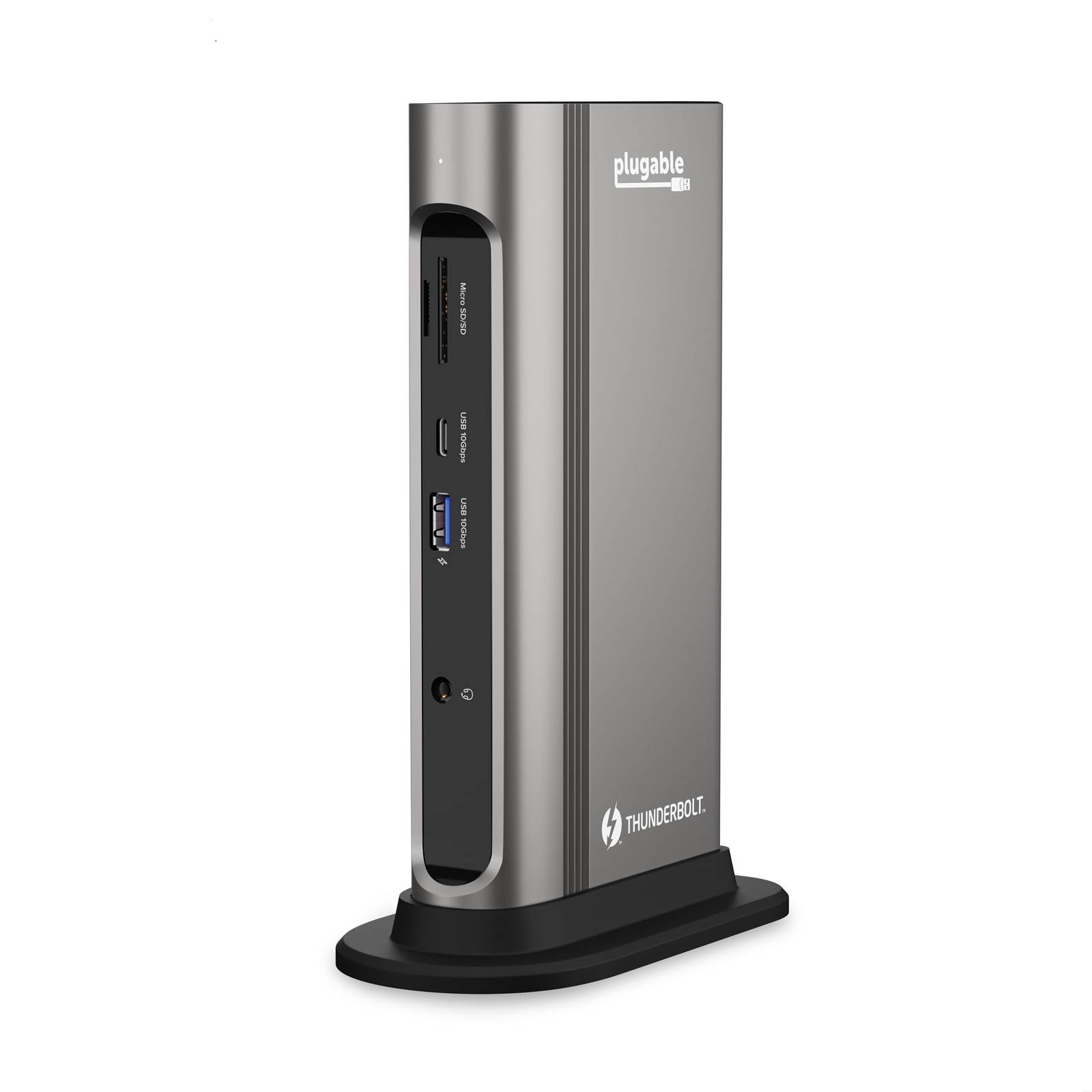

The TBT3-UDZ is Plugable's most versatile, powerful and accessible docking station yet. Its unique, exclusive design allows users to connect up to two 4K displays using either HDMI or DisplayPort without the need of external adapters - the first Thunderbolt 3 docking station to offer this flexibility of display types. Using the Intel Titan Ridge chipset and Plugable's custom design, the TBT3-UDZ delivers a combination of more port options, fastest charging up to 100W, and widest PC and Mac compatibility of any dock on the market.

Up to 100W Power Delivery to host (96W Certified)
2x DisplayPort and 2x HDMI ports (for a total of two displays)
7x USB ports: 1x USB-C 10Gbps port, 1x USB 10Gbps port, 5x USB 5Gbps ports
1x SD card slot
1x MicroSD card slot
1x Gigabit Ethernet port
1x Combination audio input/output jack

With this dock, we set out to solve customer pain points that users have been dealing with for a long time now. These include the difference between Thunderbolt 3 and USB-C, which have identical looking ports, HDMI versus DisplayPort, USB-C or USB-A peripheral ports, and the different levels of charging wattage offered. The TBT3-UDZ eliminates any confusion between these different types of technologies by offering a simplified solution that answers these questions for you.

DisplayPort and HDMI
Plugable's unique design allows users to connect up to two additional 4K displays with your port of choice using either HDMI or DisplayPort without the need of external adapters.

This is the first Thunderbolt 3 docking station to offer this flexibility of display types. Made to adapt to the user's setup, the TBT3-UDZ is unparalleled in flexibility.

Vertical and Horizontal
The horizontal or vertical design of the TBT3-UDZ goes against the grain of other docking stations. Fit the dock in any space standing up or lying flat so there's more room for monitors and peripherals, while keeping a productive and clean workspace.

The dock includes a sturdy, detachable base for vertical orientation, which ensures a stable, sturdy setup no matter how many cables you connect.

Thunderbolt 3 and USB-C
The TBT3-UDZ is built upon the latest Intel Titan Ridge chipset, enabling the widest compatibility with Thunderbolt 3 and USB-C laptops on the market. Thunderbolt 4 laptops are also supported.

Its dual connectivity removes frustrations from having to pick a docking station for either type of laptop while delivering unrivaled performance.

100W Charging
The TBT3-UDZ's 100W* Power Delivery is the highest charging wattage to be implemented in any universal Thunderbolt 3 docking station. With Apple now releasing notebooks with 96W chargers, such as the Intel based 16? MacBook Pro, the TBT3-UDZ is the best docking station to pair with these devices for unrivaled performance.

Charge your laptop at noticeably faster speeds - so you'll have one less thing to think about and you can say goodbye to your other power supply.

*To strictly comply with 100W regulatory limits with margin, Thunderbolt certification limits to charging to 96W.

Dual 4K Displays
Expand your workspace with 40Gbps Thunderbolt speeds and drive any combination of two DisplayPort or HDMI monitors. When connected to a compatible Thunderbolt 3 or 4 Windows or Mac* system:
Drive up to two 4096x2160 @ 60Hz displays (lower resolutions also supported)
*M1 / M2 / M3 base model Macs are limited to a single extended display (M1 Pro/Max, M2 Pro/Max, M3 Pro/Max support dual displays). Not DisplayLink compatible
When connected to a compatible USB-C system:
Windows: Drive two 1920x1080 @ 60Hz displays or drive one 4096x2160 @ 30Hz display
12? MacBook Retina: Drive up to two 4096 x 2160 @ 30Hz mirrored displays

Flexible Connectivity
The docking station features 14 ports making it one of the most comprehensive docking stations available, ideal for the most demanding of professions that require multiple inputs and peripherals.

With a mix of five USB 3.0 (5Gbps), one USB-A (10Gbps) and one USB-C (10Gbps) ports, you'll be able to connect your phone or USB flash drive to the easily accessible front USB and USB-C ports, then connect other USB peripherals such as a keyboard or mouse to the back of the dock.

Note: The USB-C port on the front of the dock supports data transfer only (no video). When connected to a USB-C laptop the front USB-C and USB-A port may be limited to 5Gbps depending on host specifications.

In the Box
1x Plugable TBT3-UDZ Thunderbolt 3 and USB-C Dual Display Dock with 96W Host Charging
1x Quick Start Guide
1x Power supply
1x Power cable
1x Vertical stand
1x 0.8m 40 Gbps Thunderbolt 3 Cable
