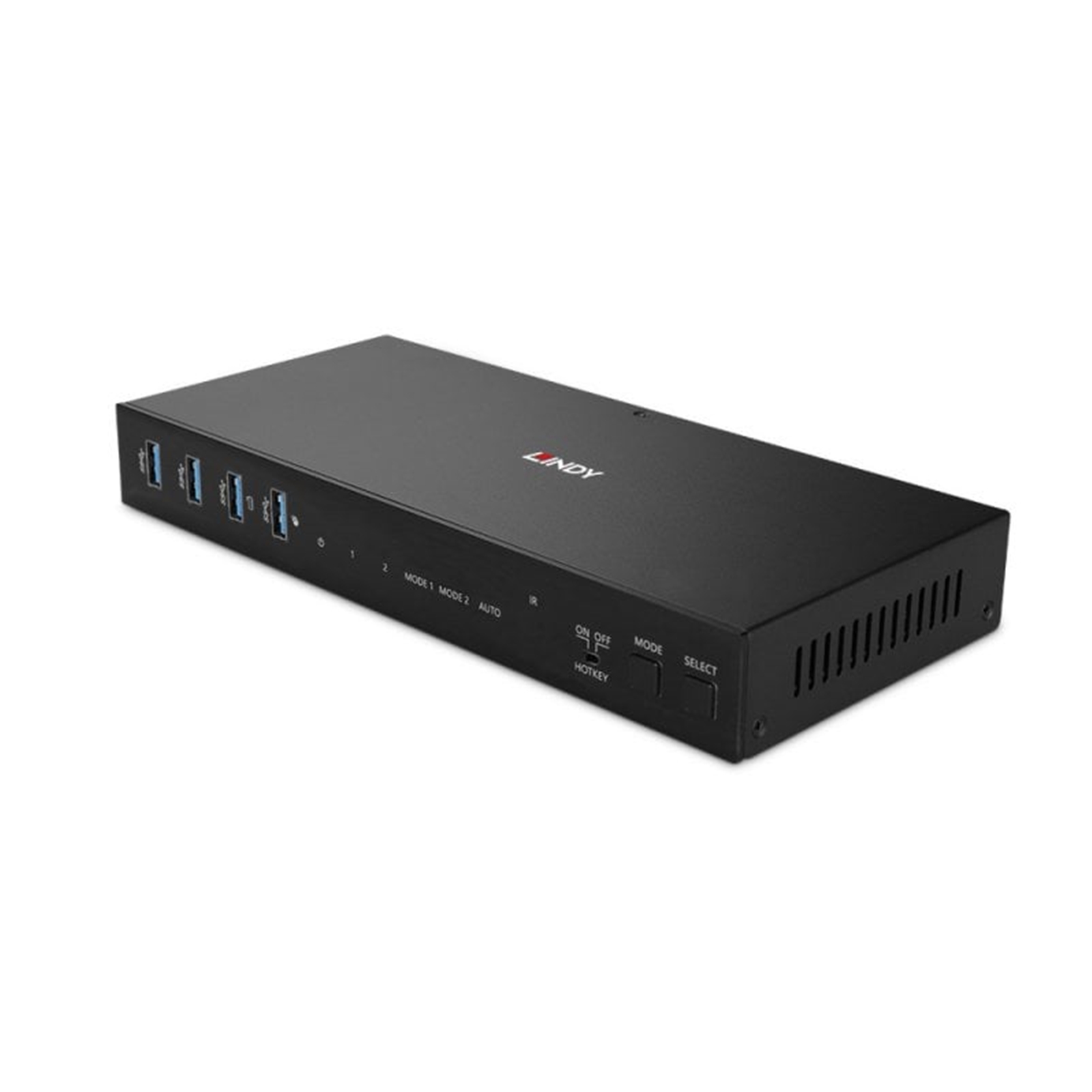

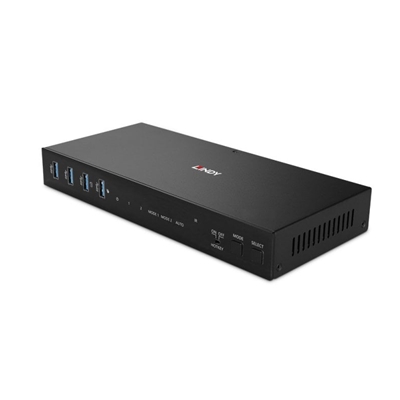

Lindy 2 Port Dual Head HDMI 4K60, USB 3.0 KVM Switch

Key Features
Controls two HDMI equipped PCs from a single console with keyboard, mouse and two monitors
Dual Head support with 2 modes, single and dual PC mode
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4 with HDR
USB 3.0 and 3.5mm stereo audio port to connect additional USB devices, speakers or headphones
2 year warranty

This KVM Switch can share 2 displays and USB devices between 2 computers in different modes: Single PC mode with both video showing the dual head input from one source; Dual PC mode with the first display fixed on the first PC1 input and the second display fixed on the first PC2 input.

Switching Methods Are:
Front panel buttons
Hotkeys (with on/off button)
IR remote control
RS-232 commands

Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for (HDR) High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port also allow users to connect headphones or speakers to add immersive 2CH audio.

USB ports allow the connection of mouse, keyboard and additional USB 3.2 Gen 1 devices such as web cam, flash drive, printer, etc. Auto-switch function enables automatic switching between connected PCs and DDM function ensures that all connected USB devices retain their settings and functionality when switching between PCs ensuring the maximum compatibility.

With advanced features and different switching methods, this switch is the perfect solution for professional KVM installations, plug and play presentations and home offices.

Specification

AV Interface
HDMI

Console Interfaces
USB

Interface Standard
HDMI 2.0, USB 3.0

Maximum Resolution
4096x2160@60Hz 4:4:4 8Bit

HDCP Support
2.3

Supported Audio
HDMI Pass Through, Analogue Stereo

Separate Audio Ports
3.5mm (Female)

Serial Interface
3-pin Terminal Block

Console Number
1

Max Number PC/Server
2

Cascadable
No

Switching Method
Push Button, Mouse & Keyboard Hotkeys, IR Remote control, RS-232 commands
19" Rack Mountable

Special Features
USB 3.0 device ports, dual head, active LED indicators

Connectors

Console Interfaces
2 x HDMI Type A (Female)
4 x USB Type A (Female)
3.5mm (Female)

PC/Server Interfaces
4 x HDMI Type A (Female)
2 x USB 3.0 Type B (Female)

Other Interfaces
3-Pin Terminal Block
3.5mm IR (Female)

Power
5.5/2.1mm screw type DC socket

Physical Properties

Weight &Dimensions (approx.) (W x D x H
220 x 100 x 30 mm (8.66 x 3.94 x 1.18 in)
0.609kg (1.34lb)

Housing Material
Metal

Operating Temperature
0°C - 40°C (32°F - 104°F)

Storage Temperature
-20°C - 60°C (-4°F - 140°F)

Humidity
20 - 90% RH (non-condensing)

Power Requirements
12V 1A

Colour
Black


Package Contents
HDMI Dual Head KVM Switch
IR Remote Control
IR Receiver Cable, 1.5m
2 x USB 3.0 Cable Type A to Type B, 1.8m
4 x HDMI Cable, 1.5m
3-Pin Terminal Block
2 x Mounting Ears & 4 x Screws
Multi-country PSU (UK, EU, US & AUS)
Lindy Manual

Warranty
2 Years
