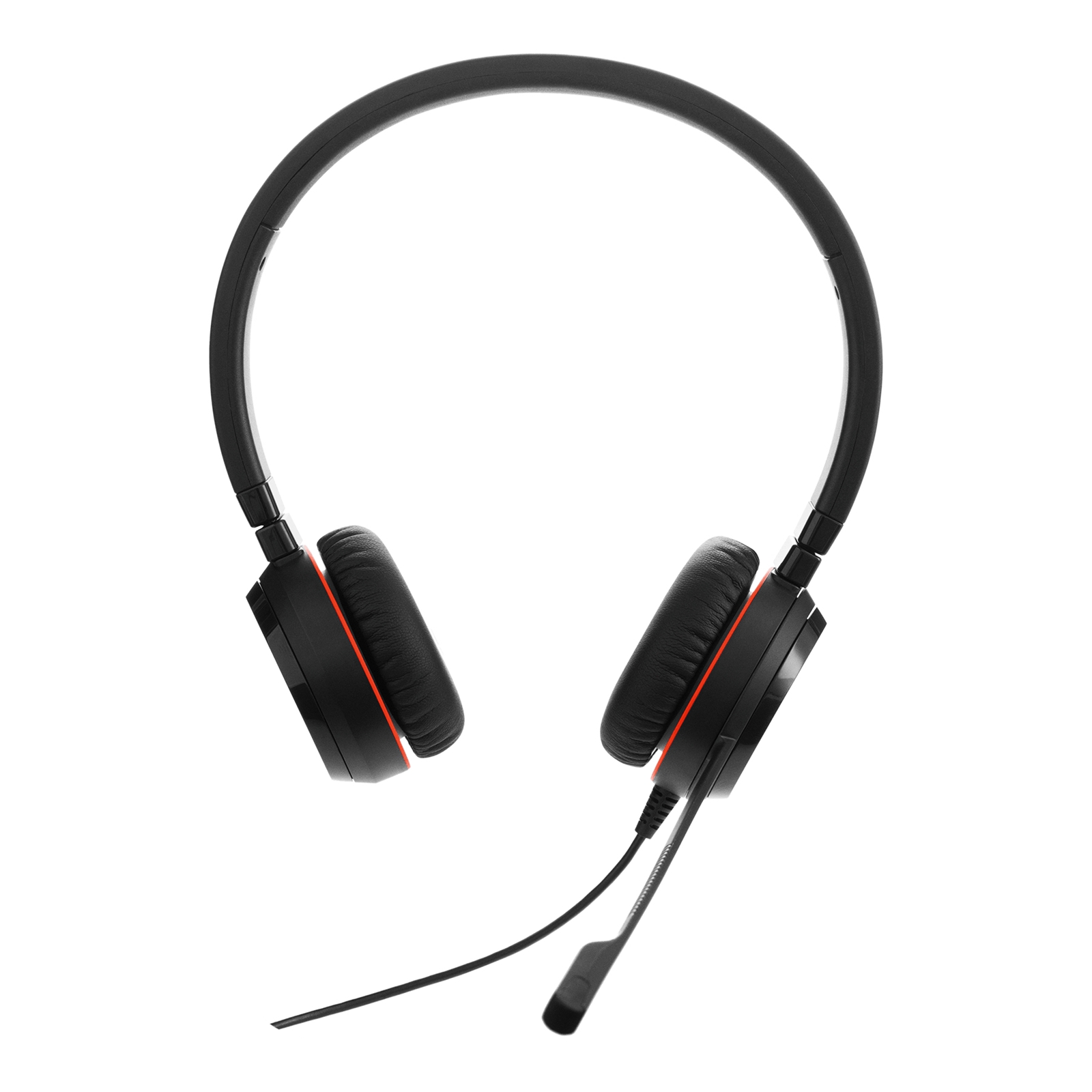

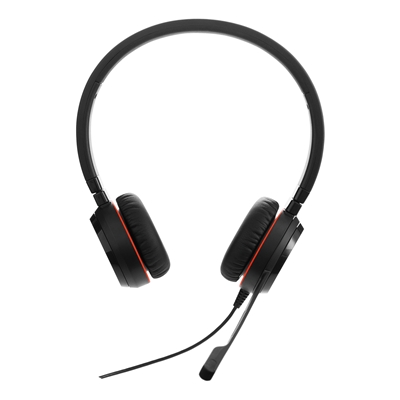

Professional headset with flexible connectivity and great sound for calls and music

Engineered for flexible connectivity, the Evolve 30 is a corded headset for professionals who want a simple and fast plug-and-play connection to a USB or jack. Features a control unit for easy call management and is certified for Skype for Business, Cisco and more. Comes with leather-feel ear cushions and on-the-ear design for all-day use.

Great Calls and Music
Manage Calls Easily
Plug and Play Connectivity
Flexible Connectivity via 3.5mm Jack or USB-A

Box Contents
Evolve 30 II headset, pouch, layer card, poly bag, documentation

Packaging Dimensions
151 x 59 x 171 mm

Weight Inc Main Wearing Style
138.2g

Material Used
Soft headband and comfortable on-the-ear foam ear pads

Jabra Direct / Jabra Xpress
Yes

Jabra Sound+
No

LED Features and Functions
Busylight, incoming calls, Microsoft Teams notifications

Headset Bandwidth
Wideband

Speaker Size
28mm

Speaker Sensitivity
93.6dB SPL @ 1kHz

Speaker Impedance
32+/-4.8O, @ 1.0kHz

Speaker Max Input Power
Rated Input 5mW @ 0.4V, max input 10mW @ 0.56V

Speaker Frequency Range
150Hz~7kHz, @ Output S.P.L -10dB

Microphone Type
Electret Condenser (ECM)

Microphone Sensitivity
F=1kHz, pin=1Pa, 0dB=1V/Pa, Min=-48dB, Max=-44dB

Microphone Frequency Range
100Hz ~ 10kHz @ 6dB

Microphone Bandwidth
Wideband

User Hearing Protection
Jabra SafeTone

Certifications
Leading UC vendors; Microsoft Teams-certified

Headset Form Factor
On-Ear Headband

Connection
3.5mm / USB-A

Cord Length
Control cable: 95 cm/37.4 in, HS cable: 120 cm/47.24 in

Power Supply
USB

Power Consumption Speaker
Rated Input 5mW @ 0.4V, max input 10mW @ 0.56V

Manufacturer's Website:

Warranty:

Manufacturers Warranty - For further details please visit the manufacturers website.

HEADPHONES
Headphone frequency	150 - 7000 Hz
Headphone sensitivity	93.6 dB
Impedance	32 O
Ear coupling	Supraaural
Maximum input power	10 mW
LOGISTICS DATA
Master (outer) case height	564 mm
Master (outer) case width	226 mm
Master (outer) case gross weight	10.4 kg
Master (outer) case length	496 mm
Products per master (outer) case	42 pc(s)
Harmonized System (HS) code	85183000
MICROPHONE
Microphone frequency	100 - 10000 Hz
Microphone sensitivity	44 dB
Microphone mute	Yes
Microphone type	Boom
Microphone noise-canceling	Yes
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 50 °C
OTHER FEATURES
Interface type	3.5mm / USB
Call management	Y
Number of products included	1 pc(s)
Digital Signal Processing (DSP)	Yes
PACKAGING CONTENT
Carrying case	No
Quick start guide	Yes
Ear pad material	Faux leather
PACKAGING DATA
Package weight	230 g
Package depth	35 mm
Package height	230 mm
Package width	180 mm
PERFORMANCE
Certification	CE, FCC, KCC, RCM, UL
Plug and Play	Yes
Cable length	0.95 m
Product colour	Black
Volume control	Button
Country of origin	China
Headset type	Binaural
Wearing style	Head-band
Operating keys	Volume +, Volume -
Recommended usage	Office/Call center
Number of simultaneously connected devices (max)	2
Product type	Headset
Music playback	Yes
Hearing protection technologies	Jabra PeakStop, Jabra Safetone G616
HD voice	Yes
PORTS & INTERFACES
Connectivity technology	Wired
Bluetooth profiles	A2DP
USB connectivity	Yes
3.5 mm connector	Yes
WEIGHT & DIMENSIONS
Weight	171 g
Height	35 mm
Width	180 mm
Depth	230 mm
