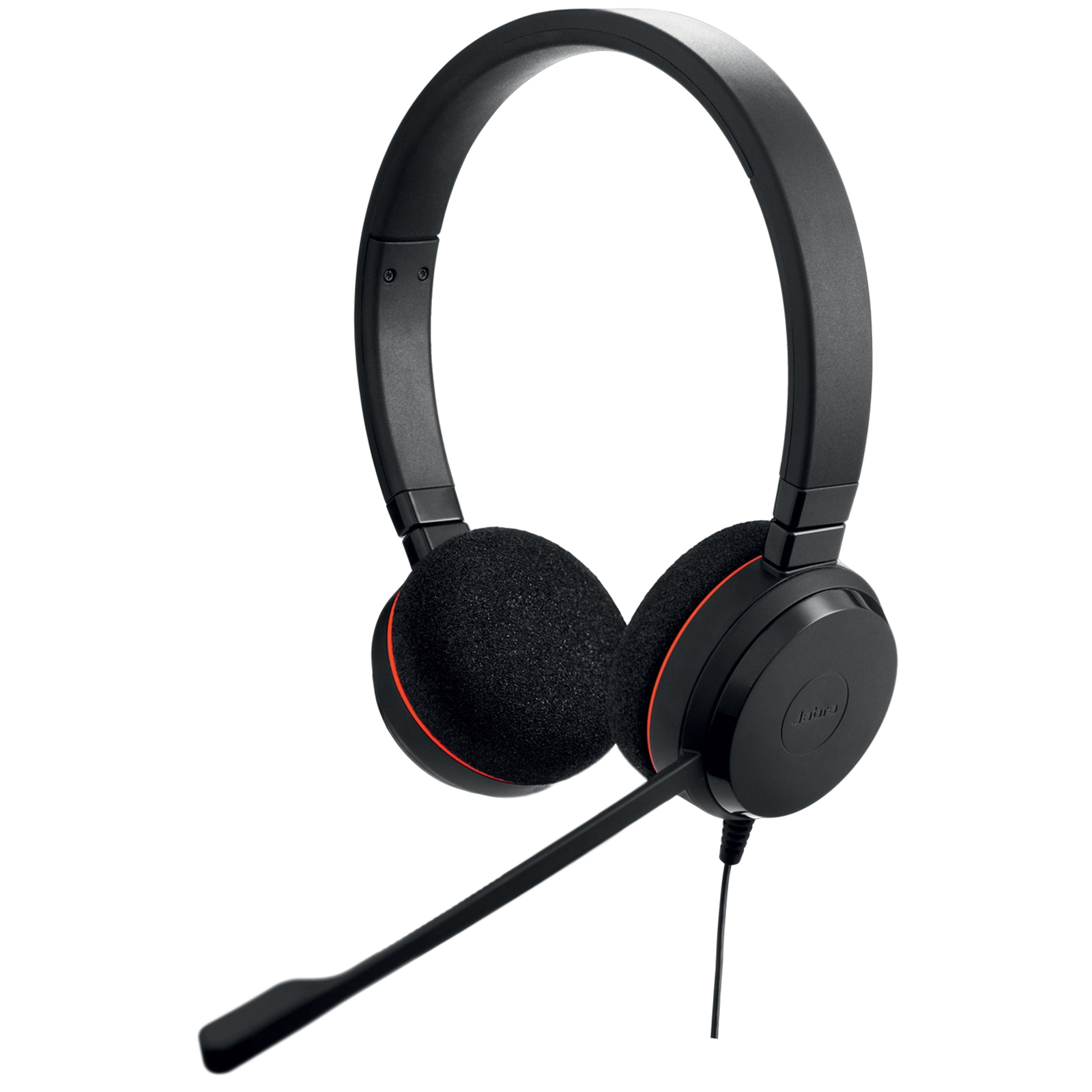

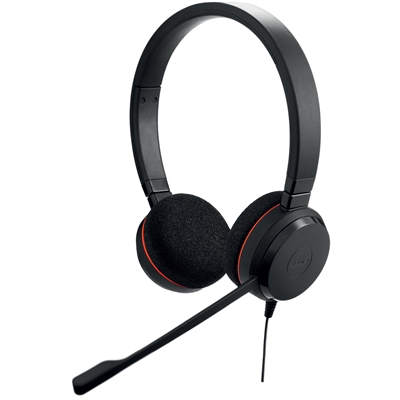

Professional headset with easy call management and great sound for calls and music

Engineered for easy call management, the Evolve 20 is an entry-level corded headset for professionals who need great sound for calls and music. A control unit allows you to make, take and mute calls, and simple connection makes it easy to get started with your PC.

Great sound for calls and music
Plug and play connectivity
Call control unit for managing calls easily
USB-A Connectivity

Box Contents
Evolve 20 Headset
USB Controller
Foam Ear Cushions
Documentation

Packaging Dimensions
230 x 180 x 35 mm

Main Unit Dimensions
151.2 x 59.5 x 170.4mm

Material Used
Soft headband and comfortable on-the-ear foam ear pads

Jabra Direct Support
Yes

LED Features and Functions
Busylight, incoming calls

Headset Bandwidth
Wideband

Speaker Size
28 x 3.9mm

Speaker Sensitivity
93.6dB SPL @ 1 kHz

Speaker Impedence
32+/-4.8O, @ 1.0kHz

Speaker Max Power Input
Rated Input 5mW @ 0.4V, max input 10mW @ 0.56V

Speaker Frequency Range
150Hz~7kHz, @ Output S.P.L -10dBB

Speaker Bandwidth - Speak Mode
150Hz~7kHz, @ Output S.P.L -10dB

Microphone Type
Electret condenser (ECM)

Microphone Sensitivity
F=1kHz, Pin=1Pa, 0dB=1V/Pa, Min=-48dB, Max=-44dB

Microphone Frequency Range
100Hz ~ 10kHz @ 6dB

Microphone Bandwidth
Wideband

User Hearing Protection
Jabra SafeTone

Certifications
Regulatory Approvals: CE, FCC, KCC, RCM, UL, Industrial certifications:
Avaya, Cisco and more

Headset Form Factor
On-Ear Headband

Connection
USB-A

Cord Length
Control cable: 95 cm/37.40 in, HS cable: 120 cm/47.24 in

Power Source
USB

Manufacturer's Website:

Warranty:

Manufacturers Warranty - For further details please visit the manufacturers website.

HEADPHONES
Headphone frequency	150 - 7000 Hz
Headphone sensitivity	93.6 dB
Impedance	32 O
Ear coupling	Supraaural
Maximum input power	10 mW
LOGISTICS DATA
Master (outer) case height	564 mm
Master (outer) case width	226 mm
Master (outer) case gross weight	9.01 kg
Master (outer) case length	496 mm
Products per master (outer) case	48 pc(s)
Harmonized System (HS) code	85183000
MICROPHONE
Microphone frequency	100 - 10000 Hz
Microphone sensitivity	-44 dB
Microphone mute	Yes
Microphone type	Boom
Microphone noise-canceling	Yes
OPERATIONAL CONDITIONS
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 50 °C
OTHER FEATURES
Interface type	USB
Call management	Y
Digital Signal Processing (DSP)	Yes
PACKAGING CONTENT
Quantity	1
Quick start guide	Yes
PACKAGING DATA
Package weight	170 g
Package depth	35 mm
Package height	230 mm
Package width	180 mm
PERFORMANCE
Certification	CE, FCC, KCC, RCM, UL
Plug and Play	Yes
Cable length	0.95 m
Cable colour	Black
Product colour	Black
Volume control	Button
Country of origin	China
Headset type	Binaural
Wearing style	Head-band
Operating keys	Volume +, Volume -
Recommended usage	Office/Call center
Product type	Headset
Music playback	Yes
Control unit type	In-line control unit
Hearing protection technologies	Jabra PeakStop, Jabra Safetone G616
HD voice	Yes
PORTS & INTERFACES
Connectivity technology	Wired
Bluetooth profiles	A2DP
USB connectivity	Yes
USB connector	USB Type-A
SYSTEM REQUIREMENTS
Windows operating systems supported	Yes
Mac operating systems supported	Yes
WEIGHT & DIMENSIONS
Weight	171 g
Height	35 mm
Width	180 mm
Depth	230 mm
