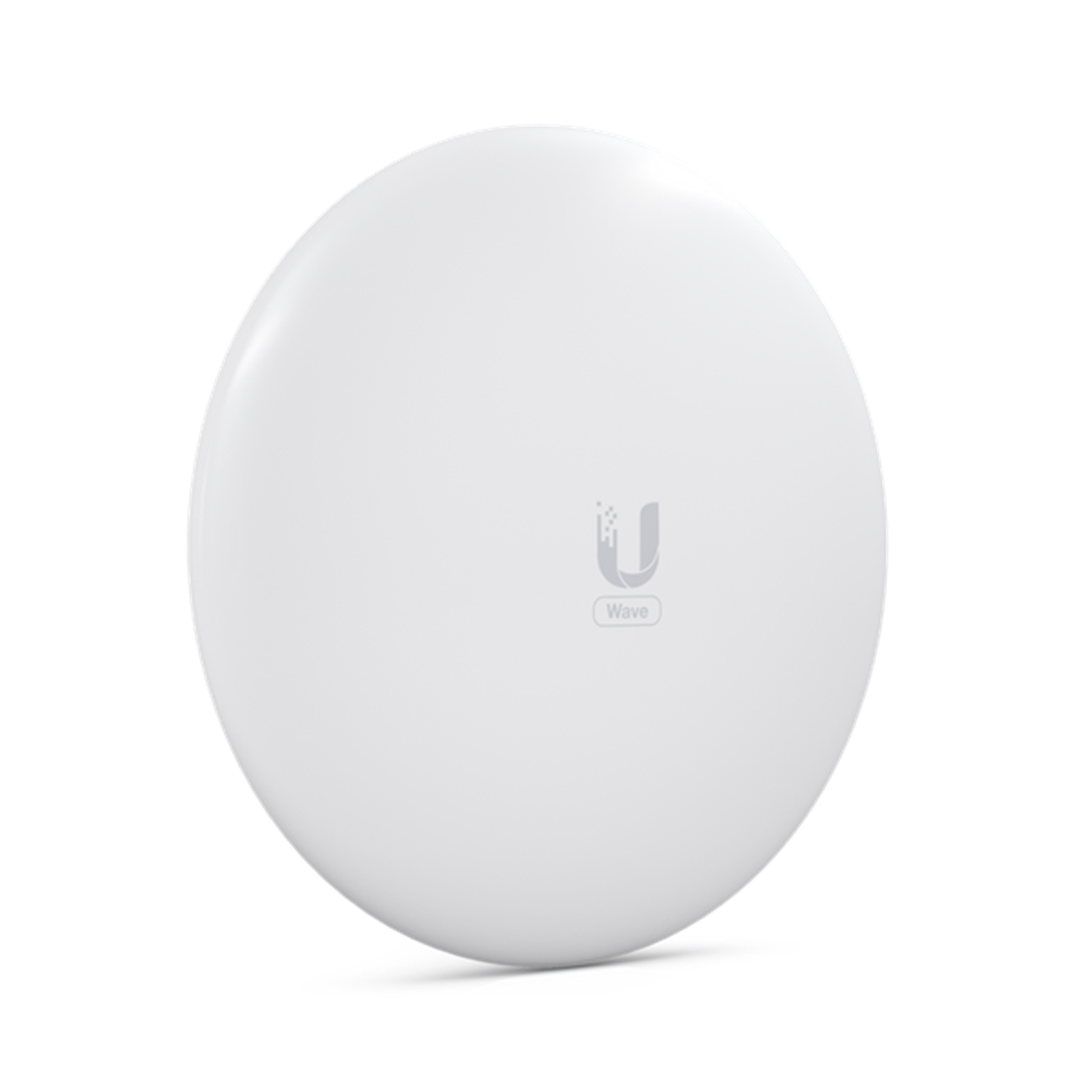

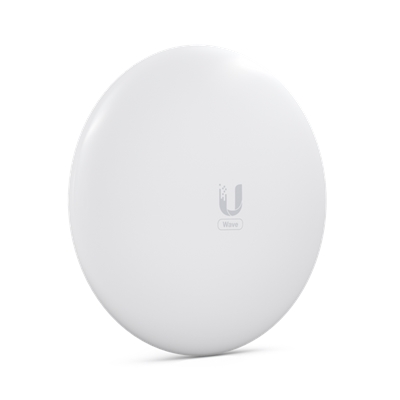

UISP Wave Nano 60GHz PtMP Station
Introducing the Ubiquiti UISP Wave Nano, which can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex).
The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection, and a Bluetooth radio to simplify setup via the UISP Mobile app.
Key Features
5 GHz backup radio
Link range: up to 5 km
Router mode support
Integrated GPS antenna
Link planning support via ISP Design Center
Note: as of firmware 3.2.0-beta2 it is now possible to use two Wave Nano units in a PTP configuration.
Specifications
Mechanical
Dimensions
413 x 413 x 360 mm
Weight
Without Mount
1.5 kg
With Mount
2.7 kg
Enclosure
Aluminium, UV stabilised plastic
Hardware
Processor
Quad-Core ARM Cortex A7
Memory
256 MB DDR3
Networking Interface
10/100/1000 Mbps RJ45 Ethernet
RF Connections
Internal
Max. Power Consumption
18W
Power Method
Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply
48VDC, 0.65A Gigabit PoE Adapter (Included)
Supported Voltage Range
48VDC ± 10%
ESD/EMP Protection
Air/Contact: 24kV
Operating Temperature
-40 to 60° C
Operating Humidity
5 to 95% Noncondensing
Certifications
FCC, IC, CE
LEDs
Power
Flashing White: Bootup in Progress
White: Not Connected to Ubiquiti® Network Management System (UISP™)
Blue: Connected to UISP
Ethernet
Flashing Blue: Ethernet Trafic Detected
GPS
Blue: Receiving at Least (4) GPS Satellite Signals
System
Maximum Throughput
1.8 Gbps
Maximum Range
12 km in US, UK range to be confirmed
Encryption
WPA2-PSK (AES)
Software
OS
airOS
Modes
PtP Only
Services
UISP, Ping Watchdog, NTP Client, System Log
Utilities
Antenna Alignment Tool, Discovery Utility, Ping, Traceroute, Speed Test
Network
Bridge Mode
Management interface
Bluetooth management for easy setup over UISP™ App WEB UI
Minimum Software Requirements
Modern Web Browser or Android/iOS Smartphone
Technology
Wave
RF
Operating Frequency (regulatory region dependant)
57 to 71 Ghz
Max Conducted TX Power
21 dBm
GPS
Yes
Channel Bandwidth
2160, 1080 Mhz
Antenna Gain
43 dBi
Box Contents
UISP Wave Nano
Pole mount
Allen key
2 x M6 bolts
Jubilee clip
Wall mount + level
2 x wall plugs + M3.5 screws
M3 bolt
PoE injector
UK power cable
Alignment tool
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
ANTENNA
|
| Antenna gain level (max) |
41 dBi |
DESIGN
|
| Certification |
FCC, IC, |
| Rack mounting |
No |
| LED indicators |
Yes |
| Product colour |
White |
| Reset button |
Yes |
| Housing material |
Aluminium, Plastic |
| Mounting type |
Pole |
| Quantity per pack |
1 pc(s) |
ENERGY MANAGEMENT
|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (transmitter) (max) |
18 W |
MEMORY
|
| Internal memory |
512 MB |
NETWORKING
|
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Security algorithms |
AES, WPA2-PSK |
| Cabling technology |
10/100/1000Base-T(X) |
| Modulation |
8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK |
| Wi-Fi |
Yes |
| Web-based management |
Yes |
| Wi-Fi band |
Single-band (60 GHz) |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 60 °C |
PERFORMANCE
|
| Type |
Network transmitter |
| Chipset |
Dual ARM® Cortex®-A53 cores at 1 GHz |
| Data transfer rate |
2000 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| International Protection (IP) code |
IPX6 |
| Maximum transfer distance |
5000 m |
| Mobile operating systems supported |
Android, iOS |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
1 |
TECHNICAL DETAILS
|
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE |
| Compliance certificates |
CE |
WEIGHT & DIMENSIONS
|
| Weight |
932 g |
| Height |
256.5 mm |
| Width |
256.5 mm |
| Depth |
113.5 mm |
