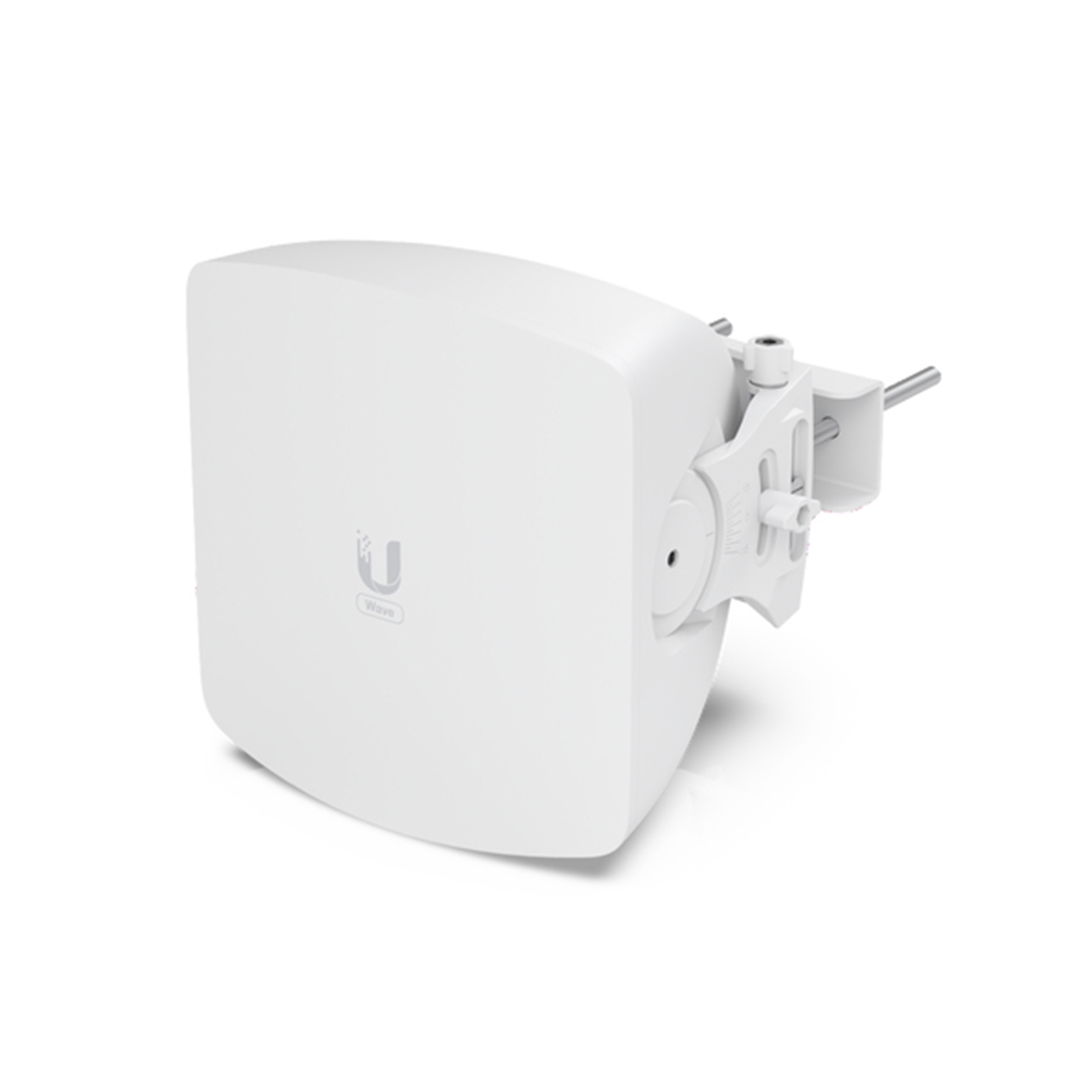

Ubiquiti UISP Wave Access Point - Wave-AP
The Ubiquiti Wave-AP 60 GHz PtMP access point, powered by Wave Technology, is a remarkable piece of networking hardware that can seamlessly connect up to 15 stations with high-speed internet. The Wave Access Point has a total throughput of up to 5.4 Gbps, which is twice the duplex throughput of 2.7 Gbps.
The Ubiquiti Wave-AP has a high-performance 5 GHz backup radio to ensure an uninterrupted connection, even during power outages. In addition, the device is equipped with a Bluetooth radio, which allows for easy setup through the UISP Mobile app.
One of the most impressive features of the Wave Access Point is its support for stations and distances. Wave Long-Range stations can be connected up to 8 km away, while Wave Nano stations can be connected up to 5 km away. This is particularly useful for rural areas where internet connectivity is scarce.
The UISP Wave-AP also comes with two WAN ports, including one 10G SFP+ port and one 2.5GbE port, which enable high-speed connectivity. The access point also has an integrated GPS antenna that helps with location tracking and provides accurate timestamps.
Link planning support is also available through the ISP Design Centre. This enables network engineers to design, plan and implement their networks with greater accuracy and reliability. With all these features and functionalities, the Ubiquiti Wave-AP 60 GHz PtMP access point is an excellent choice for high-speed internet connectivity.
Key Features
5 GHz backup radio
Supported stations and distances:
- Wave Long-Range: up to 8 km
- Wave Nano: up to 5 km
WAN Ports: (1) 10G SFP+, (1) 2.5GbE
Integrated GPS antenna
Link planning support via the ISP Design Centre
Specifications
Mechanical
Dimensions
212 x 205 x 187 mm (8.3 x 8.1 x 7.4")
Weight 2.3 kg (5.07 lb)
Enclosure materials
Aluminum alloy, UV stabilized polycarbonate
Pole mount diameter
25 to 76 mm (1 to 3") on pipe outer diameter
Wind loading
98 N at 200 km/h (22 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Processor
Quad ARM® Cortex -A53 cores at 1.4 GHz
Memory
DDR3L
512 MB
Networking interface
1 x 2.5GbE RJ45 port (100/1000/2500)
1 x 10G SFP+ port (1/10)
Active only when SFP+ port is down
Max. power consumption
24W
Power method
48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply
48V DC, 0.65A 2.5GbE PoE adapter (included)
GPS
Yes
Button
Factory reset
LEDs
Power, Ethernet, GPS
Operating temperature
-40 to 60° C (-40 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE
Software
OS
airOS
Operating mode
PtMP access point
Ubiquiti specific features
Wave AI, discovery protocol
Services
UISP, ping watchdog, NTP client, SNMP
Tools
Antenna alignment, discovery utility, ping, trace route, speed test
Network
Bridge mode
Software management
Bluetooth management for easy setup over UISP Mobile app
WEB UI
Minimum software requirements
Any modern web browser/iOS™ or Android™ based smartphone
System
Total throughput
5.4 Gbps (2.7 Gbps duplex)
Supported clients count
15
Range
Connecting to a Wave Long-Range: up to 8 km
Connecting to a Wave Nano: up to 5 km
EncryptionWPA2-PSK (AES)
RF
Operating frequency
57 to 71 GHz
Depends on regulatory region.
Channel bandwidth
2160, 1080 MHz
Operating channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Depends on regulatory region.
Modulation
16QAM, QPSK
Antenna gain
24 dBi
Polarization
Vertically linear
Beamwidth
Azimuth: 30°
Elevation: 3 dB 3°, 6 dB 4°
Electrical downtilt
0°
Back-Up RF
WiFi standard
802.11ax (WiFi 6)
Operating frequency US/CA
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz
Depends on regulatory region.
Channel bandwidth
20, 40, 80 MHz
Modulation
BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain
12 dBi
Cross-pol isolation
10 dB
Electric downtilt
0°
LEDs
Power
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet,/b>
Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected
GPS
Blue: receiving at least (4) GPS satellite signal
Box Contents
1x Wave AP
1x Pole Mount Kit (Screws Included)
1x Zip Tie
1x Gigabit PoE Adapter (48V, 0.65A)
