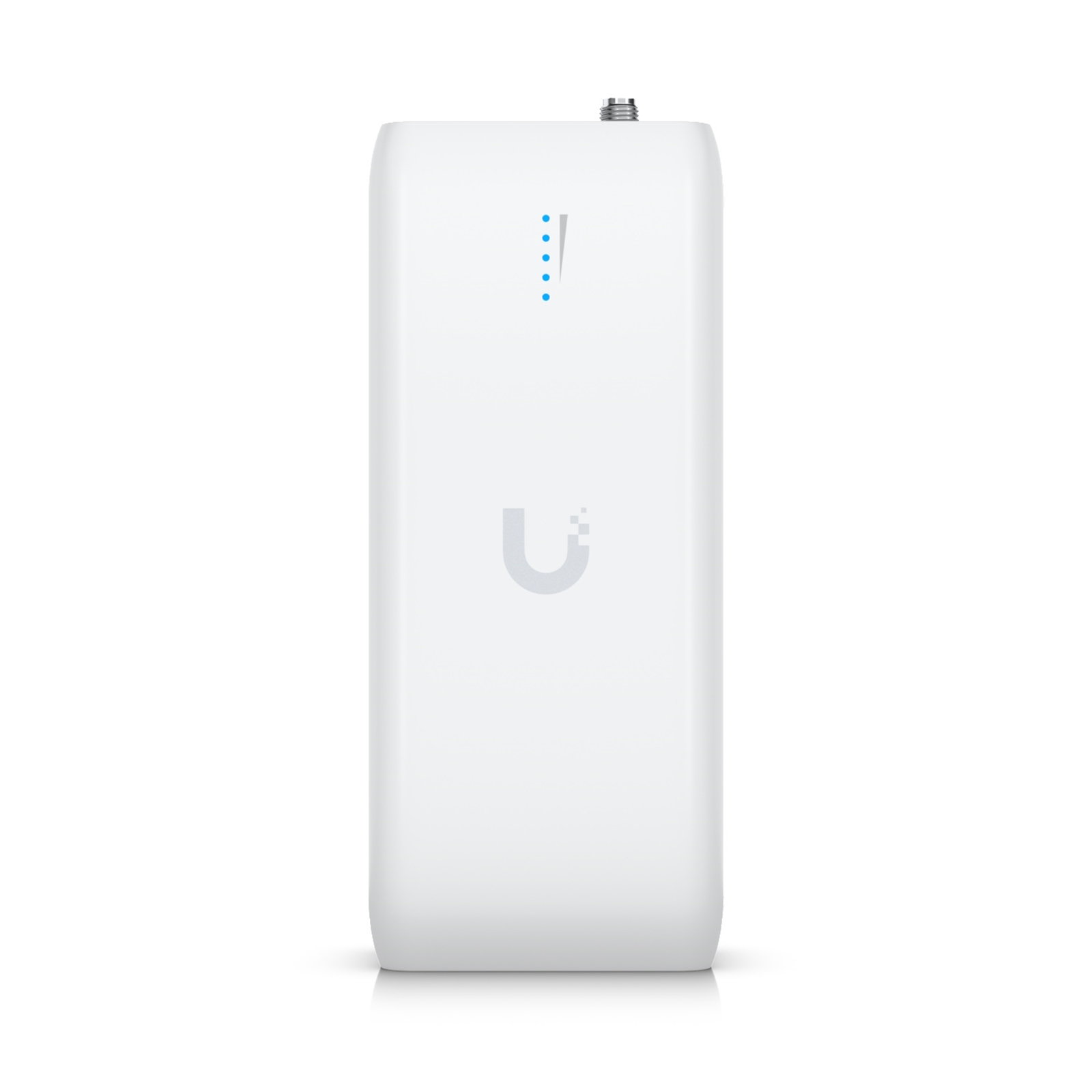

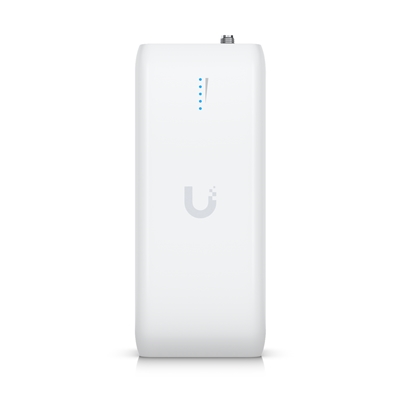

Ubiquiti UDB Plug and Play Wireless Device Bridge
Key Specifications
| Type | Device Bridge |
| Speed | 866Mbps |
| Indoor or Outdoor | Indoor |
| POE Capability | 48v |
| Pack Size | Single |
Manufacturer : UBIQUITI
EAN : UDB
Manufacturer Part Code : UDB
Weight : 0.2 kg
Login For Pricing
Key Specifications
| Type | Device Bridge |
| Speed | 866Mbps |
| Indoor or Outdoor | Indoor |
| POE Capability | 48v |
| Pack Size | Single |
Manufacturer :
UBIQUITI
EAN :
UDB
Manufacturer Part Code :
UDB
Weight :
0.2 kg
Recommended Products
Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.
Dimensions
130 x 55 x 34 mm
(5.1 x 2.2 x 1.3")
WiFi Standard
WiFi 5
Spatial Streams
2
Mounting Locations
Wall/Table
Power Method
100—240V AC, 0.45A Max., 50/60 Hz
MIMO
2 x 2
Max. Data Rate
866.7 Mbps (BW80)
Antenna Gain
Internal antenna: 5 dBi
External omni antenna: 4 dB
Max. TX Power
21 dBm
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Wireless Security
WPA2 AES (Always On)
Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)
Supported Voltage Range
100—240V AC
Supported Voltage Range
100—240V AC
Networking Interface
(1) GbE RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Weight
200 g (7.1 oz)
Mount Material
Polycarbonate
Enclosure Material
Polycarbonate
Button
(1) Factory-reset
System LEDs
(4) Blue: signal
(1) White/blue: indicator
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
Dimensions
130 x 55 x 34 mm
(5.1 x 2.2 x 1.3")
WiFi Standard
WiFi 5
Spatial Streams
2
Mounting Locations
Wall/Table
Power Method
100—240V AC, 0.45A Max., 50/60 Hz
MIMO
2 x 2
Max. Data Rate
866.7 Mbps (BW80)
Antenna Gain
Internal antenna: 5 dBi
External omni antenna: 4 dB
Max. TX Power
21 dBm
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Wireless Security
WPA2 AES (Always On)
Max. Power Consumption
25W (AC input)
10W (Excluding PoE output)
Supported Voltage Range
100—240V AC
Supported Voltage Range
100—240V AC
Networking Interface
(1) GbE RJ45 port
Antennas
(1) Internal antenna
(1) RP-SMA connector for external omni-antenna
Management
WiFi
Weight
200 g (7.1 oz)
Mount Material
Polycarbonate
Enclosure Material
Polycarbonate
Button
(1) Factory-reset
System LEDs
(4) Blue: signal
(1) White/blue: indicator
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
| ANTENNA | |
|---|---|
| Antenna type | 2x2 |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | RP-SMA |
| Antenna design | Internal & external |
| CERTIFICATES | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| DATA TRANSMISSION | |
| Maximum data transfer rate | 866.7 Mbit/s |
| ENERGY MANAGEMENT | |
| Power over Ethernet (PoE) | Yes |
| Power source type | AC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 25 W |
| FEATURES | |
| Material | Polycarbonate (PC) |
| LED indicators | Signal strength, Status |
| Product colour | White |
| Reset button | Yes |
| Mounting type | Wall |
| Product type | Network bridge |
| NETWORKING | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| OPERATIONAL CONDITIONS | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
| PACKAGING CONTENT | |
| Cables included | AC |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
| PACKAGING DATA | |
| Quantity per pack | 1 pc(s) |
| PORTS & INTERFACES | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| TECHNICAL DETAILS | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| WEIGHT & DIMENSIONS | |
| Weight | 200 g |
| Height | 34 mm |
| Width | 130 mm |
| Depth | 55 mm |
| WIRELESS LAN FEATURES | |
| Frequency band | 5 GHz |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Signal strength | 21 dBm |
