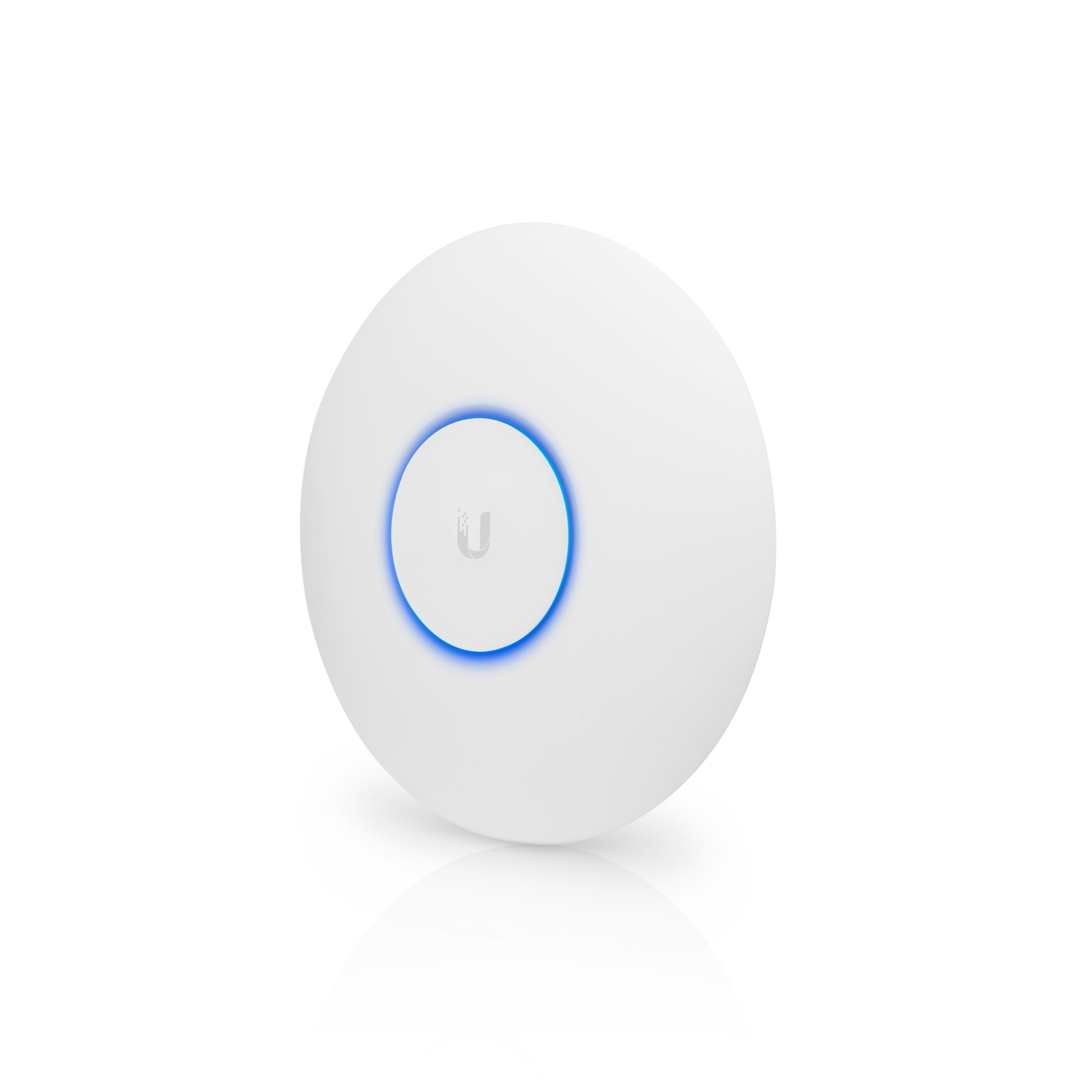

802.11ac PRO Access Point including POE injector

The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum-performance wireless networks.

Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology
The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.

Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:

Versatile Design
The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.

Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Specifications

Model: UAP-AC-PRO
Dimensions: 196.7x35mm
Environment: Indoor/Outdoor
2.4GHz Speed: 450Mbps
5GHz Speed: 1300Mbps
PoE Mode: 802.3af PoE/802.3at PoE+
Ports: (2) 10/100/1000 Ethernet

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna gain level (max)	3 dBi
Antennas quantity	3
CERTIFICATION
Certification	CE, FCC, IC
DESIGN
Internal	No
Certification	CE, FCC, IC
Product colour	White
Reset button	Yes
ENERGY MANAGEMENT
Power over Ethernet (PoE)	Yes
Input current	0.5 A
AC input voltage	48 V
Power consumption (max)	9 W
FEATURES
Maximum data transfer rate	1300 Mbit/s
Wi-Fi data rate (max)	1300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum indoor range	122 m
2.4 GHz	Yes
5 GHz	Yes
LOGISTICS DATA
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 70 °C
PACKAGING CONTENT
Number of products included	1 pc(s)
Mounting kit	Yes
Quantity per pack	1 pc(s)
PoE adapter included	Yes
PACKAGING DATA
Number of products included	1 pc(s)
Mounting kit	Yes
PoE adapter included	Yes
PORTS & INTERFACES
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
SECURITY
Security algorithms	AES, TKIP, WEP, WPA, WPA2
TECHNICAL DETAILS
Harmonized System (HS) code	85176990
WEIGHT & DIMENSIONS
Weight	350 g
Height	35 mm
Width	196.7 mm
Depth	196.7 mm
