Target Components

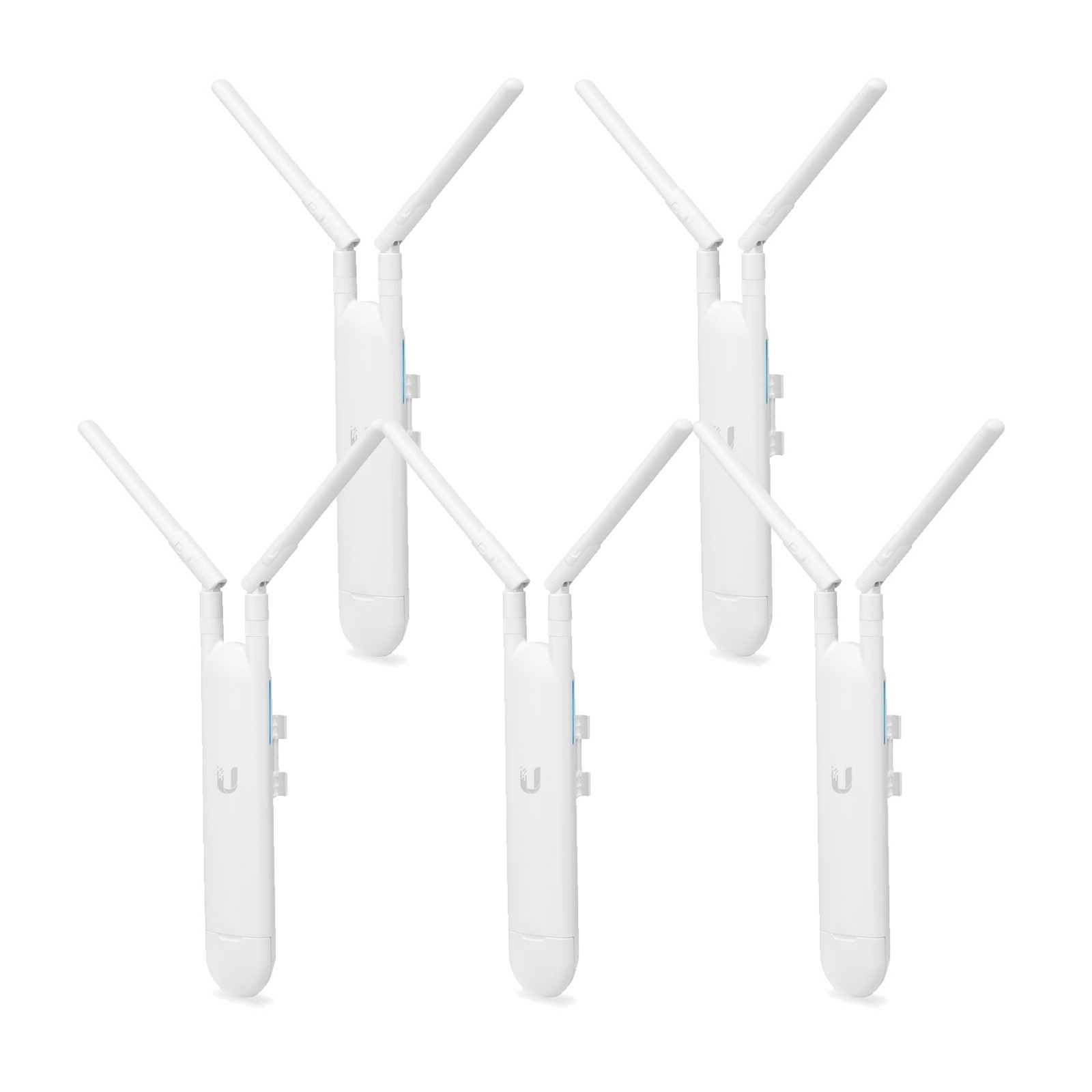

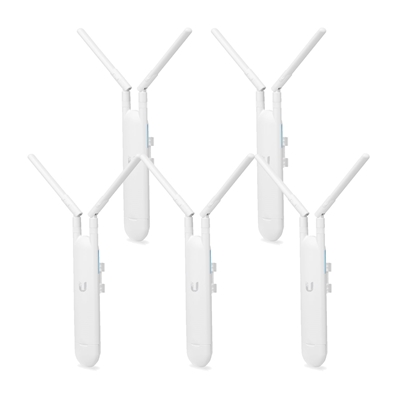

Ubiquiti UAP-AC-M-5 UniFi Mesh Wireless AC1300 Dual Band PoE Access Point (5 Pack)

NPUBI-UAPACM5
Key Specifications
TypeMesh
SpeedAC1300
Indoor or OutdoorIndoor/Outdoor
POE Capability24/48v
Pack Size5 Pack
/productImages/80/NPUBI-UAPACM5.JPG
/productImages/80/131522.JPG
/productImages/80/131523.JPG
/productImages/80/131524.JPG
/productImages/80/131525.JPG
/productImages/80/131526.JPG
Manufacturer : UBIQUITI
EAN : 817882020565
Manufacturer Part Code : UAP-AC-M-5
Weight : 0.15 kg
Login For Pricing

Key Specifications
TypeMesh
SpeedAC1300
Indoor or OutdoorIndoor/Outdoor
POE Capability24/48v
Pack Size5 Pack
Manufacturer :
UBIQUITI

EAN :
817882020565

Manufacturer Part Code :
UAP-AC-M-5

Weight :
0.15 kg
Recommended Products

5 PACK - PLEASE NOTE MULTIPACK PRODUCTS DO NOT INCLUDE POE INJECTORS

802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology

Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.

Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.

Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)

Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch or the optional Gigabit PoE adapter.

Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.

Expand the limits of Wide-Area WiFi
UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across the world � all controlled by a single interface accessed via the Internet or local network.

Specifications

Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps
Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af



Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna gain level (max) 4 dBi
Antennas quantity 2
Antenna features Detachable antenna
CERTIFICATION
Certification CE, FCC, IC
DESIGN
Internal No
Certification CE, FCC, IC
Product colour White
Placement Wall
ENERGY MANAGEMENT
Power consumption (typical) 8.5 W
Power supply 24 W
Power over Ethernet (PoE) Yes
FEATURES
Maximum data transfer rate 867 Mbit/s
Number of users 250 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Quality of Service (QoS) support Yes
VLAN support Yes
2.4 GHz Yes
5 GHz Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
MIMO Yes
LOGISTICS DATA
Harmonized System (HS) code 85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 70 °C
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
SECURITY
Security algorithms WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2
TECHNICAL DETAILS
Harmonized System (HS) code 85176990
WEIGHT & DIMENSIONS
Weight 152 g
Height 353 mm
Width 46 mm
Depth 34.4 mm
