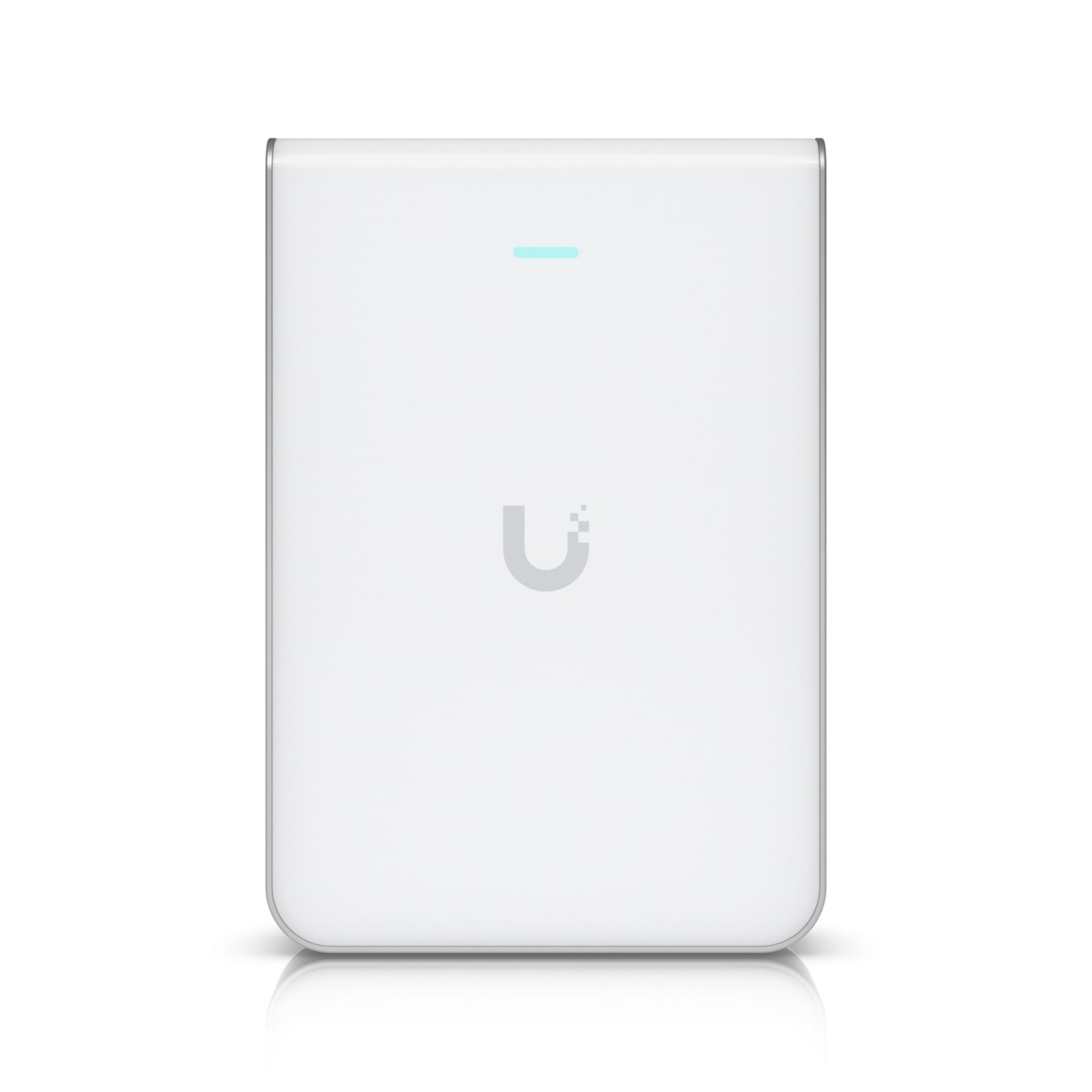

Ubiquiti U7-PRO-WALL U7 Pro Wall Wall Mounted WiFi 7 Access Point with 2.5GbE Uplink

Key Specifications
TypeAccess Point
SpeedWiFi 7
Indoor or OutdoorIndoor
POE CapabilityPOE+
Pack SizeSingle
/productImages/80/NPUBI-U7-PROWALL.JPG
/productImages/80/198237.JPG
/productImages/80/198238.JPG
/productImages/80/198239.JPG
/productImages/80/198240.JPG
/productImages/80/198241.JPG
Manufacturer : UBIQUITI
EAN : 0810084695548
Manufacturer Part Code : U7-PRO-WALL
Weight : 0.75 kg
Login For Pricing

Key Specifications
TypeAccess Point
SpeedWiFi 7
Indoor or OutdoorIndoor
POE CapabilityPOE+
Pack SizeSingle
Manufacturer :
UBIQUITI

EAN :
0810084695548

Manufacturer Part Code :
U7-PRO-WALL

Weight :
0.75 kg
Recommended Products

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point

Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile deployment

Introducing the Ubiquiti UniFi U7-Pro-Wall, a high-performance wall-mounted WiFi 7 access point designed to deliver exceptional wireless coverage and speed.

This sleek, compact device is perfect for high-density environments, offering tri-band connectivity with support for 2.4 GHz, 5 GHz, and the new 6 GHz band. With a maximum aggregate throughput of 10.2 Gbps, the U7-Pro-Wall ensures seamless connectivity for all your devices.

UniFi U7-Pro-Wall features advanced technologies such as OFDMA and MU-MIMO, enhancing network efficiency and performance. U7-Pro-Wall includes advanced security protocols to protect your network and is deal for both enterprise and residential deployments, the U7-Pro-Wall combines aesthetic design with powerful performance.

Specifications

Technical Specifications

Mechanical

Dimensions
150 x 103 x 36 mm (5.9 x 4.1 x 1.4")

Weight
580 g (1.3 lb)

Enclosure Material
Polycarbonate, aluminum

Mount Material
Aluminum

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power Method
PoE+

Power Supply
UniFi PoE switch

Supported Voltage Range
44—57V DC

Max. Power Consumption
22W

Max. TX Power
2.4 GHz - 22 dBm
5 GHz - 26 dBm
6 GHz - 23 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - 2 x 2

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 4324 Mbps
6 GHz - 5764 Mbps

Antenna Gain
2.4 GHz - 4 dBi
5 GHz - 5dBi
6 GHz - 6 dBi

LEDs
White/Blue

Button
Factory reset

Mounting
Wall (Included)
Table stand, flush mount (Optional)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
300+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 8.1 and later

UniFi OS
Version 3.2 and later

Box Contents
1 x U7-Pro-Wall access point
1 x Mounting plate template level
1 x Wall mount plate
All mounting hardware
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
Antenna type Internal
Antenna gain level (max) 6 dBi
CERTIFICATION
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
DESIGN
LED indicators Yes
Product colour White
Reset button Yes
Housing material Aluminium, Polycarbonate (PC)
Placement Wall
Recommended usage Indoor
ENERGY MANAGEMENT
Power over Ethernet (PoE) Yes
DC voltage range 44 - 57 V
Power consumption (max) 22 W
FEATURES
Maximum data transfer rate 5700 Mbit/s
Frequency band 2.4 - 6 GHz
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Quality of Service (QoS) support Yes
Rate limiting Yes
Ethernet LAN data rates 2500 Mbit/s
VLAN support Yes
2.4 GHz Yes
5 GHz Yes
Throughput data rate 5764 Mbit/s
MIMO Yes
MIMO type Multi User MIMO
6 GHz Yes
Spatial streams 6
LOGISTICS DATA
Quantity per pack 1 pc(s)
OPERATIONAL CONDITIONS
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -30 - 60 °C
PACKAGING CONTENT
Number of products included 1 pc(s)
Mounting kit Yes
Quantity per pack 1 pc(s)
PACKAGING DATA
Number of products included 1 pc(s)
Mounting kit Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports 1
SECURITY
Security algorithms PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
SUSTAINABILITY
Sustainability compliance Yes
Sustainability certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
TECHNICAL DETAILS
Sustainability certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight 580 g
Height 36 mm
Width 103 mm
Depth 150 mm
