Target Components

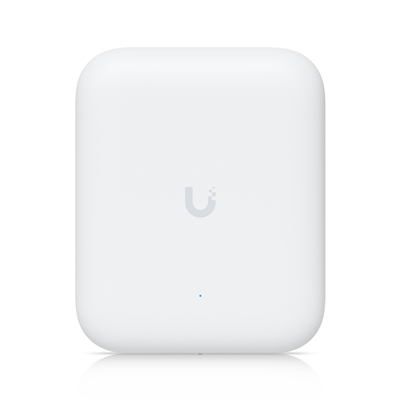

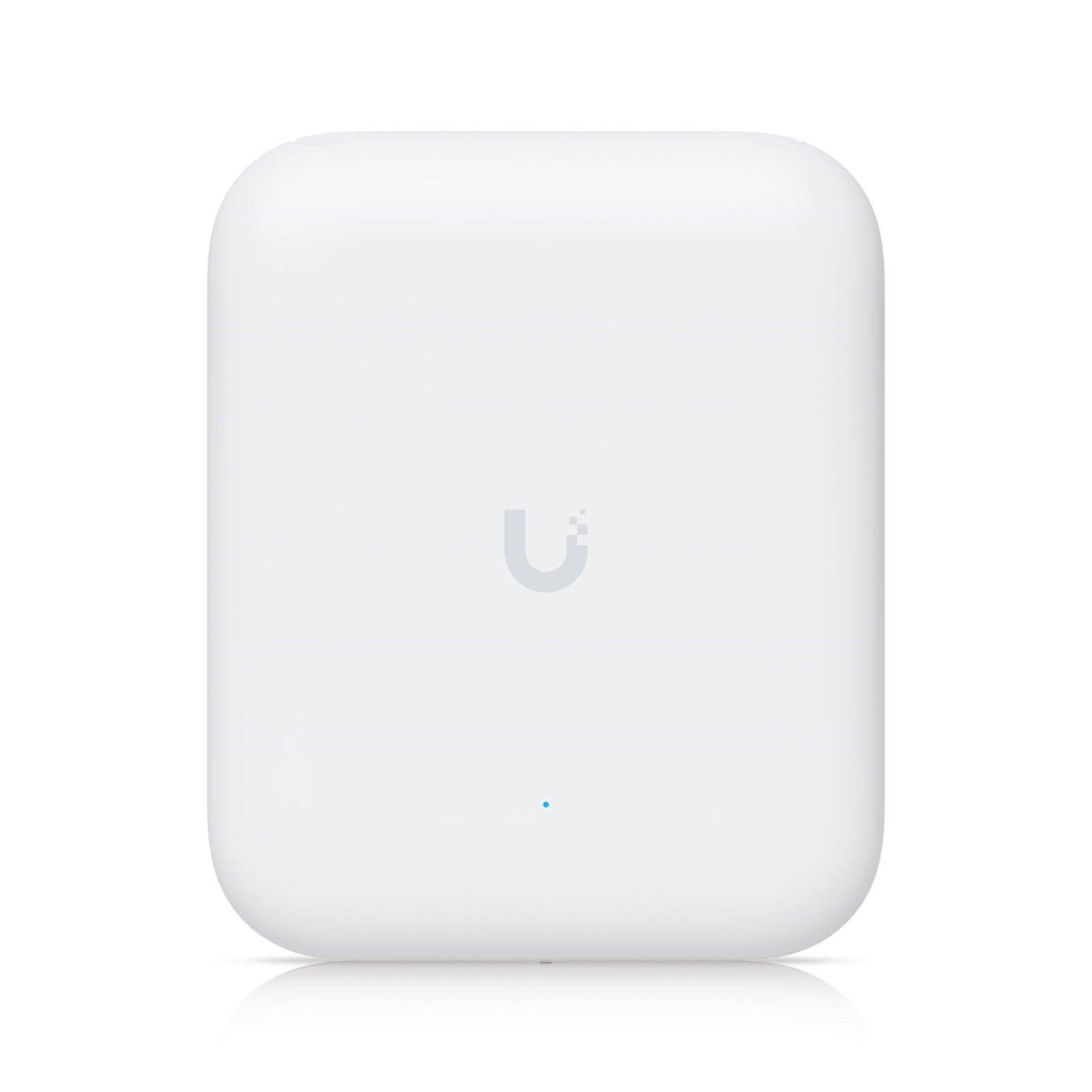

All-weather IP67 WiFi 7 AP with 6 spatial streams, integrated directional super antenna, and articulation mounting bracket.

Dimensions
Without mount: 170 x 208 x 66.5 mm
(6.7 x 8.2 x 2.6")

With mount: 170 x 208 x 121.8 mm
(6.7 x 8.2 x 4.8")

WiFi Standard
WiFi 7

Spatial Streams
6

Coverage Area
465 m2 (5,000 ft2)

Max. Client Count
300+

Uplink
2.5 GbE

Mounting
Wall, Pole
(Mounts Included)

Weatherproofing
IPX6
IP67 (With cable-gland door kit)

Power Method
PoE+

MIMO
5 GHz
4 x 4 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz
8.6 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
5 GHz
Directional internal: 11 dBi
External omni: 8 dBi

2.4 GHz
Directional internal: 8 dBi
External omni: 6 dBi

Max. TX Power
5 GHz
29 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
21W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 1/2.5 GbE RJ45 port

Weight
Device: 1.2 kg (2.6 lb)
With mount: 1.33 kg (2.9 lb)

Wind Loading
74.6 N at 200 km/h (16.8 lbf at 125 mph)

Pole Mount Diameter
1–2.5" (25–63.5 mm)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
UV-stabilized polycarbonate

System LEDs
(1) Power: White/Blue
(4) Mesh signal: Blue

Certifications
CE
