Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.

POE Injector not included, requires 48V, 0.5A PoE adapter NPUBI-U-POE-AT

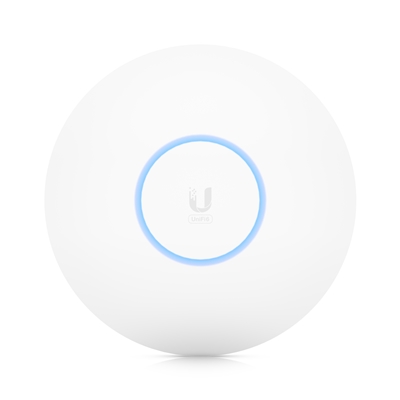

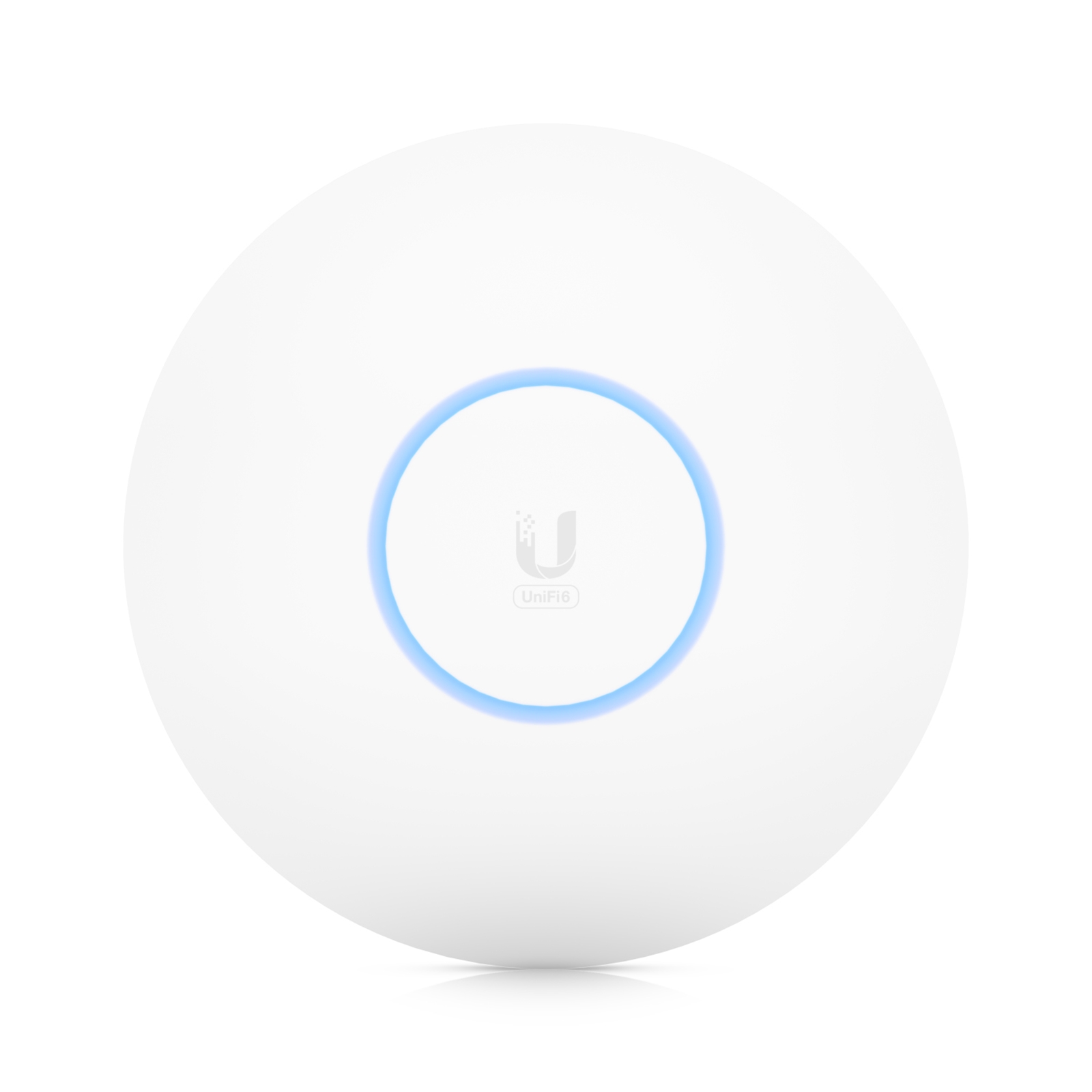

The UniFi6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.

Features
Dual-band WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
300+ concurrent client capacity
Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
Included universal mounting plate, backing plate, and screw kit

Specifications

Dimensions
197 x 35 mm

Weight
Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)

Enclosure Material
Plastic

Mounting Material
SGCC Steel

Weatherproofing
IP54

Management Interfaces
Ethernet
Bluetooth

Networking Interface
(1) GbE RJ45 port

Button
Factory Reset

Power Method
POE+

Power Supply
UniFi PoE switch
48V, 0.5A PoE adapter (not included)

Supported Voltage Range
44 to 57VDC

Max. Power Consumption
13W

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna type	Internal
Antenna gain level (max)	6 dBi
CERTIFICATION
Certification	CE, FCC, IC
DESIGN
Certification	CE, FCC, IC
Product colour	White
Reset button	Yes
Housing material	Plastic
International Protection (IP) code	IP54
Placement	Ceiling, Wall
ENERGY MANAGEMENT
Power consumption (typical)	13 W
Power over Ethernet (PoE)	Yes
FEATURES
Maximum data transfer rate	4800 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Bluetooth	Yes
Quality of Service (QoS) support	Yes
Rate limiting	Yes
Ethernet LAN data rates	1000 Mbit/s
VLAN support	Yes
2.4 GHz	Yes
5 GHz	Yes
Throughput data rate	5300 Mbit/s
MIMO	Yes
MIMO type	Multi User MIMO
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
LOGISTICS DATA
Harmonized System (HS) code	85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
SECURITY
Security algorithms	WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
TECHNICAL DETAILS
Harmonized System (HS) code	85176990
WEIGHT & DIMENSIONS
Weight	460 g
Height	35 mm
Width	197 mm
Depth	197 mm
