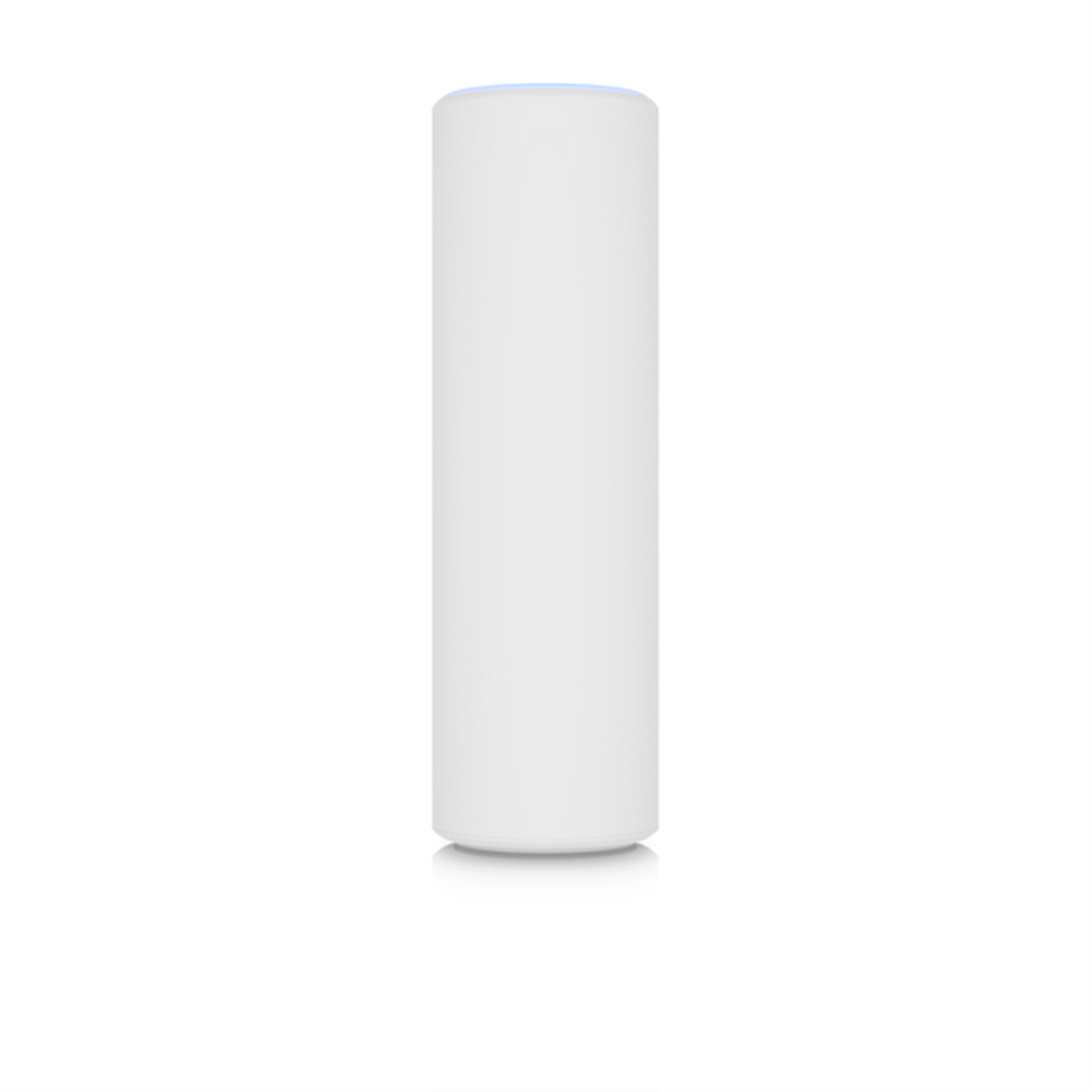

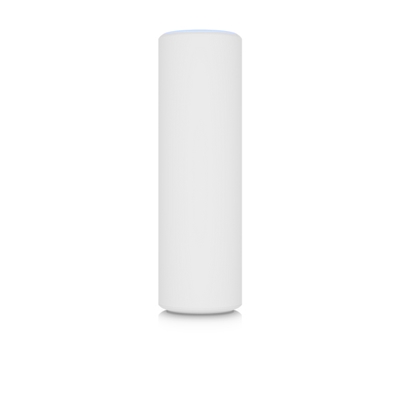

Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Specification
Data transmission
Ethernet LAN data rates
1000 Mbit/s
Maximum data transfer rate
4800 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
Yes
Reset button
Yes
Frequency band
2.4 - 5 GHz
VLAN support
Yes
Quality of Service (QoS) support
Yes
Networking standards
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.1Q
IEEE 802.3af
Ethernet LAN data rates
1000 Mbit/s
Maximum data transfer rate
4800 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Wireless LAN features
Frequency band
2.4 - 5 GHz
Network
Ethernet LAN data rates
1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Maximum data transfer rate
4800 Mbit/s
Bluetooth
Yes
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
573.5 Mbit/s
Maximum data transfer rate (5 GHz)
4800 Mbit/s
Security
Security algorithms
WPA
WPA-Enterprise
WPA-PSK
WPA2
WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Cabling technology
10/100/1000Base-T(X)
Power
Power consumption (max)
11.4 W
Power over Ethernet (PoE)
Yes
Input current
0.32 A
AC input voltage
44 - 57 V
Design
International Protection (IP) code
IPX5
Housing material
Aluminium, Plastic
Placement
Ceiling
Pole
Table
Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Antenna
Antenna type
Internal
Antenna gain level (max)
5 dBi
Technical details
Reset button
Yes
Harmonized System (HS) code
85176990
Indication
LED indicators
Yes
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
ANTENNA
|
| Antenna type |
Internal |
| Antenna gain level (max) |
5 dBi |
DESIGN
|
| LED indicators |
Yes |
| Product colour |
White |
| Reset button |
Yes |
| Housing material |
Aluminium, Plastic |
| International Protection (IP) code |
IPX5 |
| Placement |
Ceiling, Pole, Table, Wall |
ENERGY MANAGEMENT
|
| Power over Ethernet (PoE) |
Yes |
| Input current |
0.32 A |
| AC input voltage |
44 - 57 V |
| Power consumption (max) |
11.4 W |
FEATURES
|
| Cabling technology |
10/100/1000Base-T(X) |
| Maximum data transfer rate |
4800 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Bluetooth |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| VLAN support |
Yes |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Maximum data transfer rate (2.4 GHz) |
573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
LOGISTICS DATA
|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 60 °C |
PACKAGING CONTENT
|
| Number of products included |
1 pc(s) |
| Quantity per pack |
1 pc(s) |
| PoE adapter included |
Yes |
PACKAGING DATA
|
| Number of products included |
1 pc(s) |
| PoE adapter included |
Yes |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
1 |
SECURITY
|
| Security algorithms |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
TECHNICAL DETAILS
|
| Harmonized System (HS) code |
85176990 |
WEIGHT & DIMENSIONS
|
| Weight |
400 g |
| Height |
159.5 mm |
| Width |
48.5 mm |
| Depth |
48.5 mm |
