PLEASE NOTE NO POE INJECTOR INCLUDED - Compatible with U-POE-AT

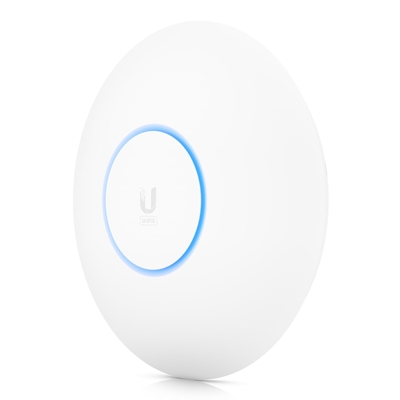

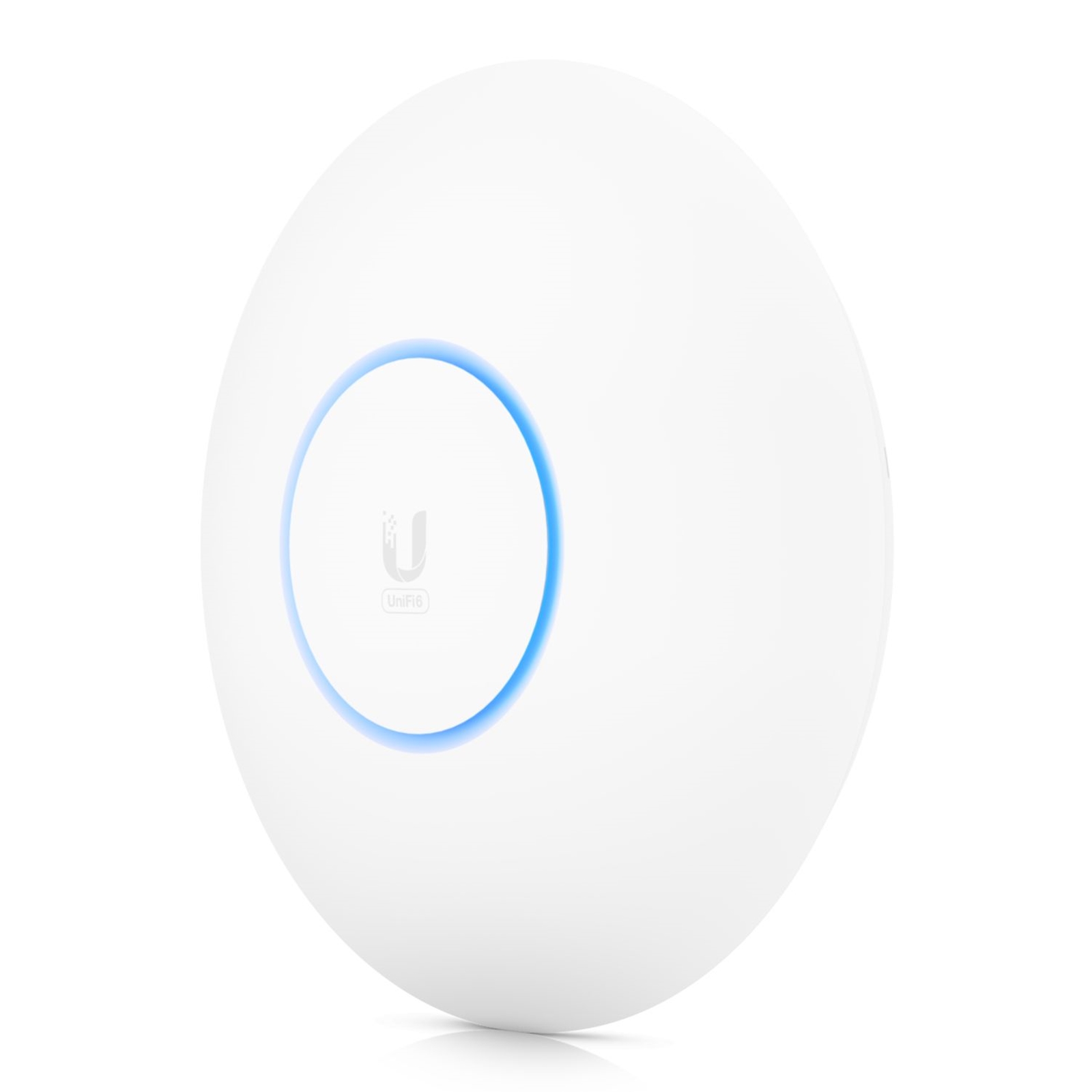

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Features
1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
Four-stream high-efficiency Wi-Fi 6 technology
5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
Powered with 802.3at PoE (PoE injector not included)

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA
Antenna type	Internal
Antenna gain level (max)	5.5 dBi
CERTIFICATION
Certification	CE, FCC, IC
DESIGN
Certification	CE, FCC, IC
LED indicators	Yes
Product colour	White
Reset button	Yes
Housing material	Plastic
International Protection (IP) code	IP54
Placement	Ceiling, Wall
ENERGY MANAGEMENT
Power over Ethernet (PoE)	Yes
AC input voltage	44 - 57 V
Power consumption (max)	16.5 W
FEATURES
Maximum data transfer rate	3000 Mbit/s
Number of users	300 user(s)
Quality of Service (QoS) support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
2.4 GHz	Yes
5 GHz	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
LOGISTICS DATA
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
PACKAGING CONTENT
Number of products included	1 pc(s)
Mounting kit	Yes
Quantity per pack	1 pc(s)
PACKAGING DATA
Number of products included	1 pc(s)
Mounting kit	Yes
PERFORMANCE
Processor frequency	1.35 MHz
Built-in processor	Yes
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
PROTOCOLS
Supported network protocols	802.11Ax, 802.11Ac, 802.11n, 802.11g, 802.11b, 802.11A, 802.3at, 802.1Q
SECURITY
Security algorithms	WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
TECHNICAL DETAILS
Harmonized System (HS) code	85176990
WEIGHT & DIMENSIONS
Weight	800 g
Height	220 mm
Width	220 mm
Depth	48 mm
