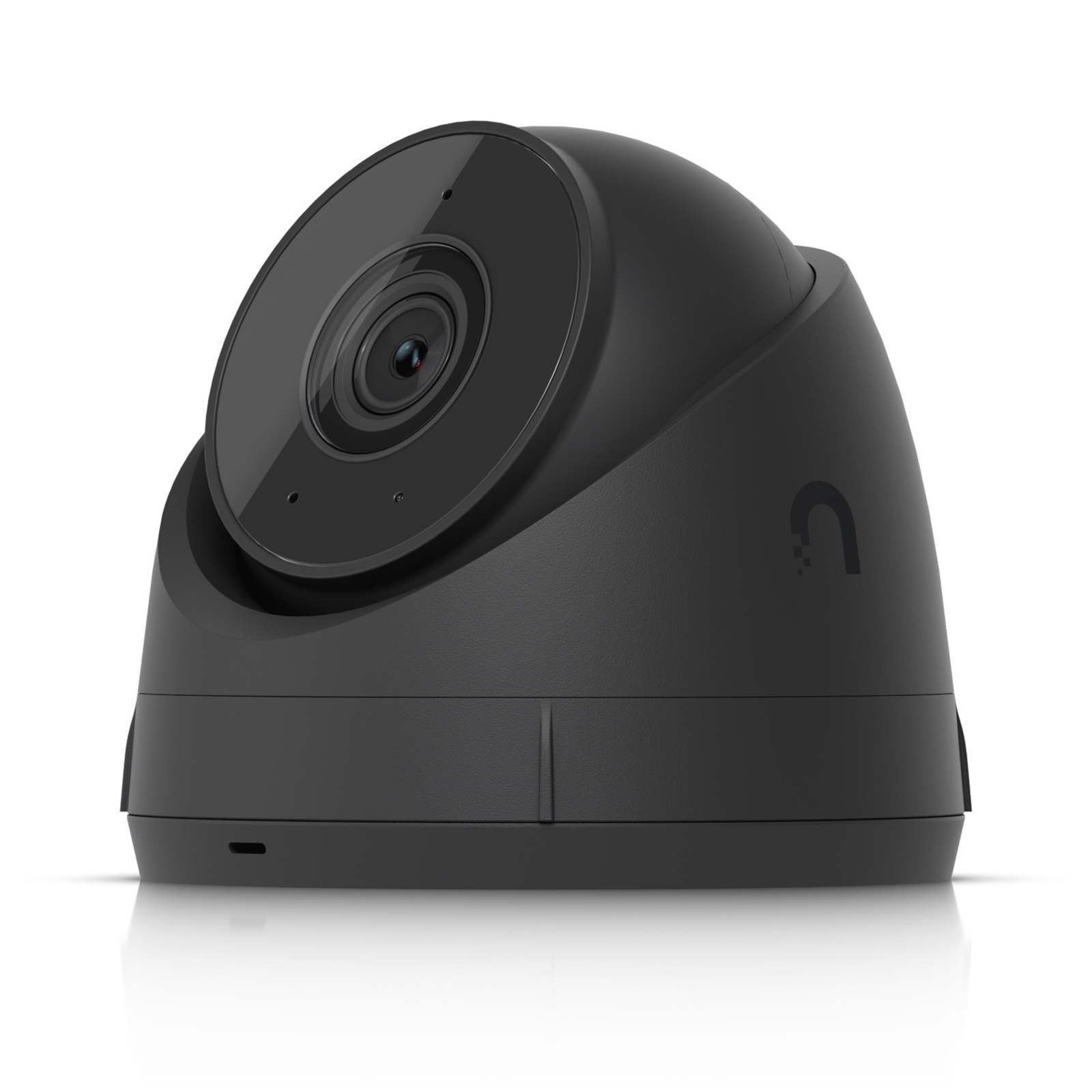

Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
2K (4MP) video resolution
Ultra-wide viewing angle (102.4deg)
30 m (98 ft) IR night vision
AI event detections
Record audio with an integrated microphone
Connect and power using PoE
Weatherproof (outdoor exposed)
Dimensions
90 x 71.2 mm (3.5 x 2.8")
Weight
330 g (11.6 oz)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate
Weatherproofing
IP66
Resistance
IK04
Cable Jacket Enclosure Dimensions
20 x 70.6 mm (0.8 x 2.8")
Cable Jacket Enclosure Materials
Thermoplastic elastomer, polycarbonate, silicone rubber
Cable Length
30 cm (1 ft)
Cable Diameter
5mm
Cable Jacket Material
Polycarbonate
Cable Connector Type
RJ45
Optics
1/2.4" CMOS
Lens
Fixed focal length
Viewing Angle
H: 102.4deg, V: 54.9deg, D: 120.6deg
Night Mode
Built-in IR LED illumination and IR cut filter
Resolution
4MP 2688 x 1512 (16:9)
Max Frame Rate
30 FPS
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Processor
Dual-core Arm Cortex-A7 based chip
Networking Interface
10/100 MbE RJ45 port
Max Power Consumption
4W
Power Method
PoE
Supported Voltage Range
37–57V DC
LED
R/G/B/W
Button
Factory reset
Mounting
Surface mount
Microphone
Yes (Can be disabled)
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
There are currently no data sheets available for this product.
