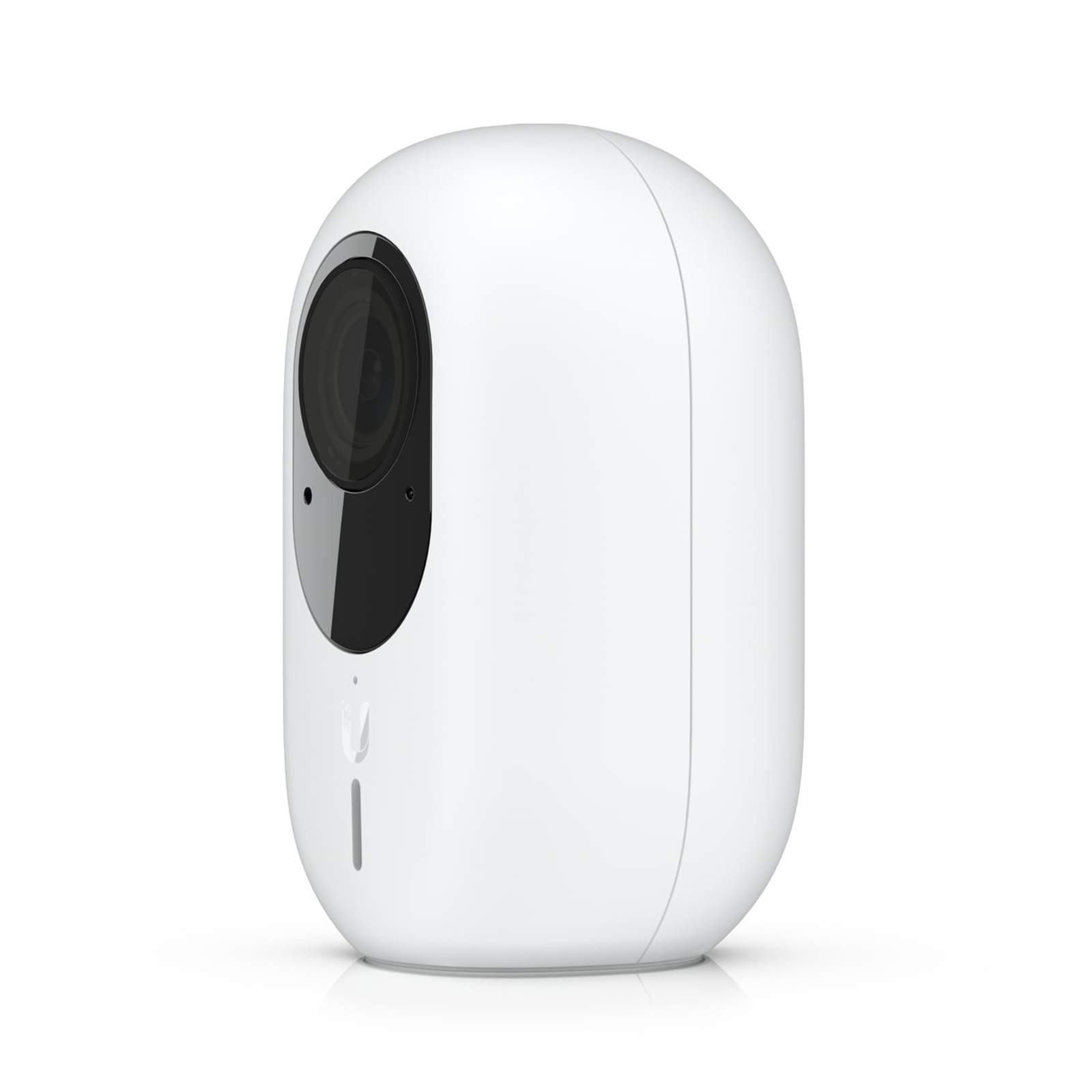

Ubiquiti UVC-G4-INS 2K HD 30fps CCTV Indoor / Outdoor Video Camera
The Ubiquiti UVC-G4-INS is a plug-and-play WiFi camera with 2K HD image resolution @ 30 frames per second, it also offers a wide-angle lens, and 2-way audio for quick communication.
The G4 Instant camera comes equipped with IR LEDs to enhance nighttime video clarity, and its weatherproof IPX5-rated casing improves its outdoor durability and tamper-resistance, making it an ideal CCTV to use in high-traffic public areas.
The G4 Instant is designed for ease of use and convenience, the video camera is powered by the included UK AC power adapter and can be adopted and configured in minutes with the UniFi Protect mobile app or web application.
Key Features
2K HD, 30 FPS camera
Built-in IR LEDs with an automatic IR cut filter for optimal nighttime surveillance
Built-in microphone and speaker
IPX5-rated, weatherproof casing
Wall-mountable
Specification
Mechanical
Dimensions
81.6 x 50 x 47.2 mm (3.21 x 1.97 x 1.86")
Weight
Without mount: 125 g (4.41 oz)
With mount: 163 g (5.75 oz)
Enclosure material
Polycarbonate
Mount material
Polycarbonate
Weatherproofing
IPX5
Resistance
IK04
Optics
Sensor
5 MP CMOS sensor
Lens
Fixed focal length EFL 2.8 mm, f/1.6
View angle
H: 102.4°, V: 54.9°, D: 120.6°
Night mode
Built-in IR LED illumination and IR cut lter
Video
Compression
H.264/MJPEG
Resolution
2688 x 1512 (16:9)
Maximum frame rate
30 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor
Dual core Arm Cortex -A7 based chip
Memory
2 GB DDR3
Management interface
UniFi Protect
Networking interface
802.11 a/b/g/n/ac WiFi
Bluetooth
Flash memory support
2 GB
Max power consumption
6W
Power supply
5V, 2A USB power adapter (included)
Supported voltage range
DC 5V, 2A
Link/activity LED
R/G/B/W
Button
Factory-reset
Mounting
Wall mount (included)
Operating temperature
-20 to 40° C (-4 to 104° F)
Operating humidity
0 to 90% Noncondensing
Certifications
FCC, IC, CE
Audio
Microphone Yes (can be disabled in UniFi Protect)
Speaker
Yes
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS and Android
Box Contents
1x UVC-G4-INS
1x Wall mount Kit (screws Included)
1x EU USB-C Power Cable
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
