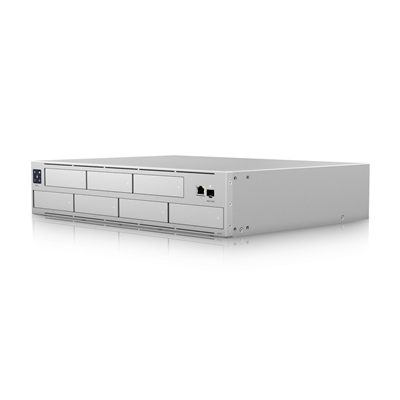

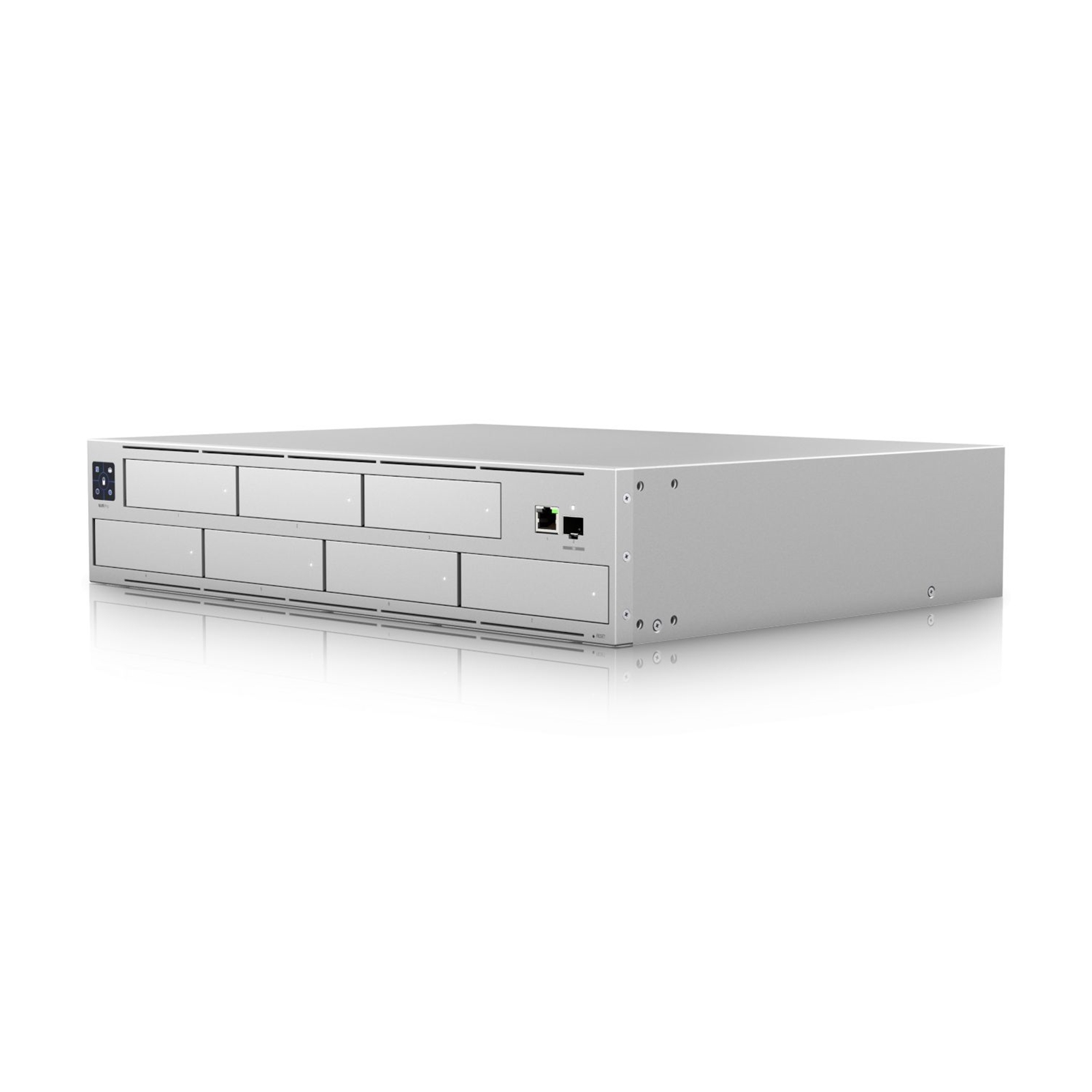

The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras)
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.
The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.
Features
(7) 2.5"/3.5" HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port
2U-sized, rack-mountable console (kit Included)
1.3" touchscreen with video event previewing
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
DISPLAY
|
| Display diagonal |
3.3 cm (1.3") |
| Built-in display |
Yes |
FEATURES
|
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Product colour |
Grey |
| Rack capacity |
2U |
HARD DRIVE
|
| RAID levels |
1, 5, 10 |
| Number of HDDs supported |
7 |
| RAID support |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85219000 |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-5 - 40 °C |
PERFORMANCE
|
| Video input channels |
60 channels |
PORTS & INTERFACES
|
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
POWER
|
| Power supply |
200 W |
| AC input voltage |
50/60 V |
| Power consumption (max) |
165 W |
STORAGE
|
| RAID levels |
1, 5, 10 |
| HDD size |
2.5/3.5" |
| Number of HDDs supported |
7 |
| RAID support |
Yes |
WEIGHT & DIMENSIONS
|
| Weight |
9.2 kg |
| Height |
87 mm |
| Width |
442 mm |
| Depth |
325 mm |
WIRELESS LAN FEATURES
|
| Wi-Fi |
No |
