Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

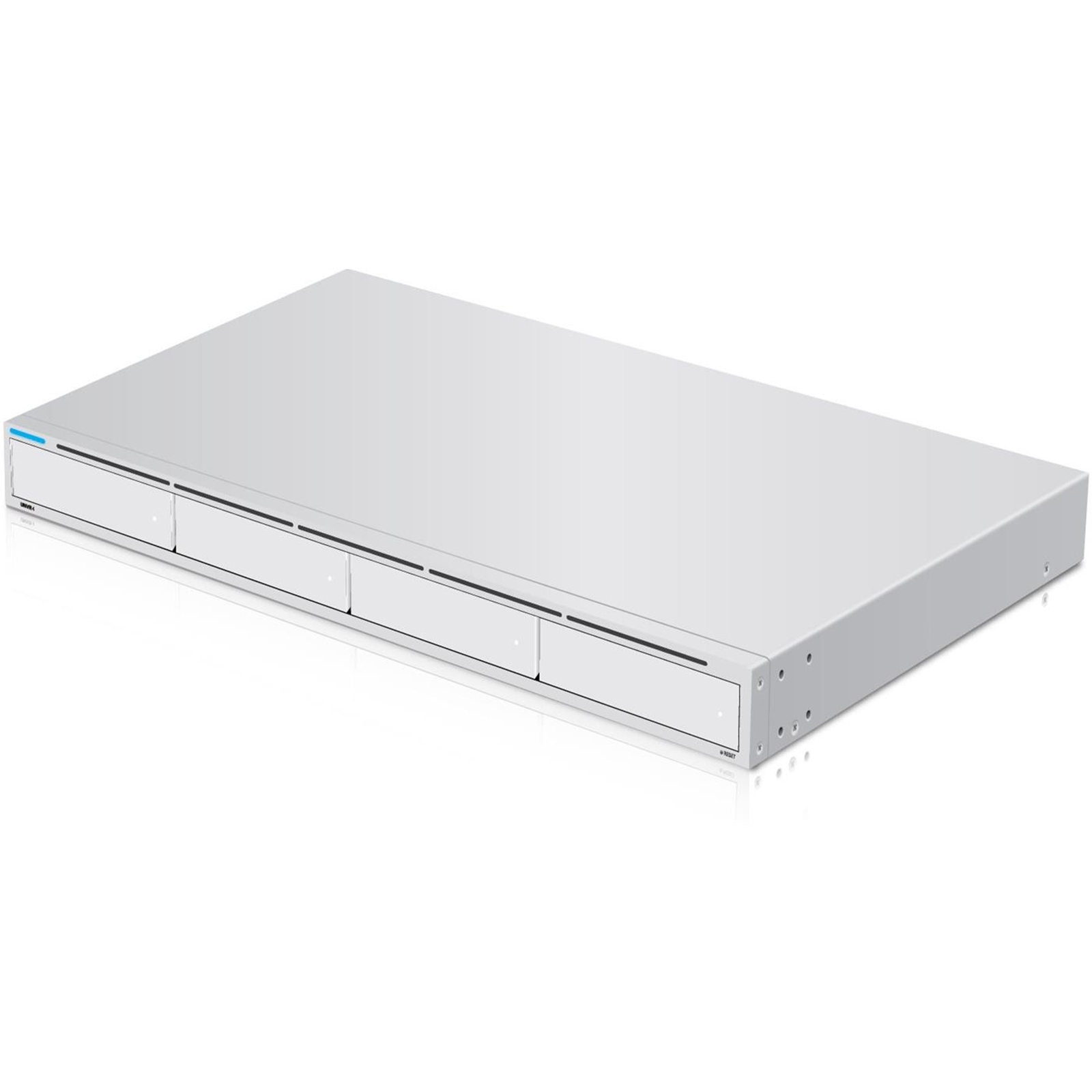

The UniFi NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Features:

(4) 2.5"/3.5" Drive bays
(1) 10G SFP+ port
(1) Gigabit RJ45 port
1U rackmountable (kit included)
Plug and Play UniFi Protect system with NVR
Automated secure RAID 1 or RAID 5 configuration
Supports USP-RPS for PSU failover

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

FEATURES
Rack mounting	Yes
LED indicators	Yes
Product colour	Grey
On/off switch	Yes
HARD DRIVE
RAID levels	5
RAID support	Yes
LOGISTICS DATA
Harmonized System (HS) code	85219000
OPERATIONAL CONDITIONS
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Video input channels	4 channels
PORTS & INTERFACES
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000,10000,100000 Mbit/s
POWER
Power consumption (typical)	75 W
Output current	2 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	100 W
PROCESSOR
Processor cores	4
Built-in processor	Yes
Processor frequency	1.7 GHz
STORAGE
HDD capacity	4 GB
RAID levels	5
RAID support	Yes
WEIGHT & DIMENSIONS
Weight	5.11 kg
Height	43.7 mm
Width	442.4 mm
Depth	325 mm
