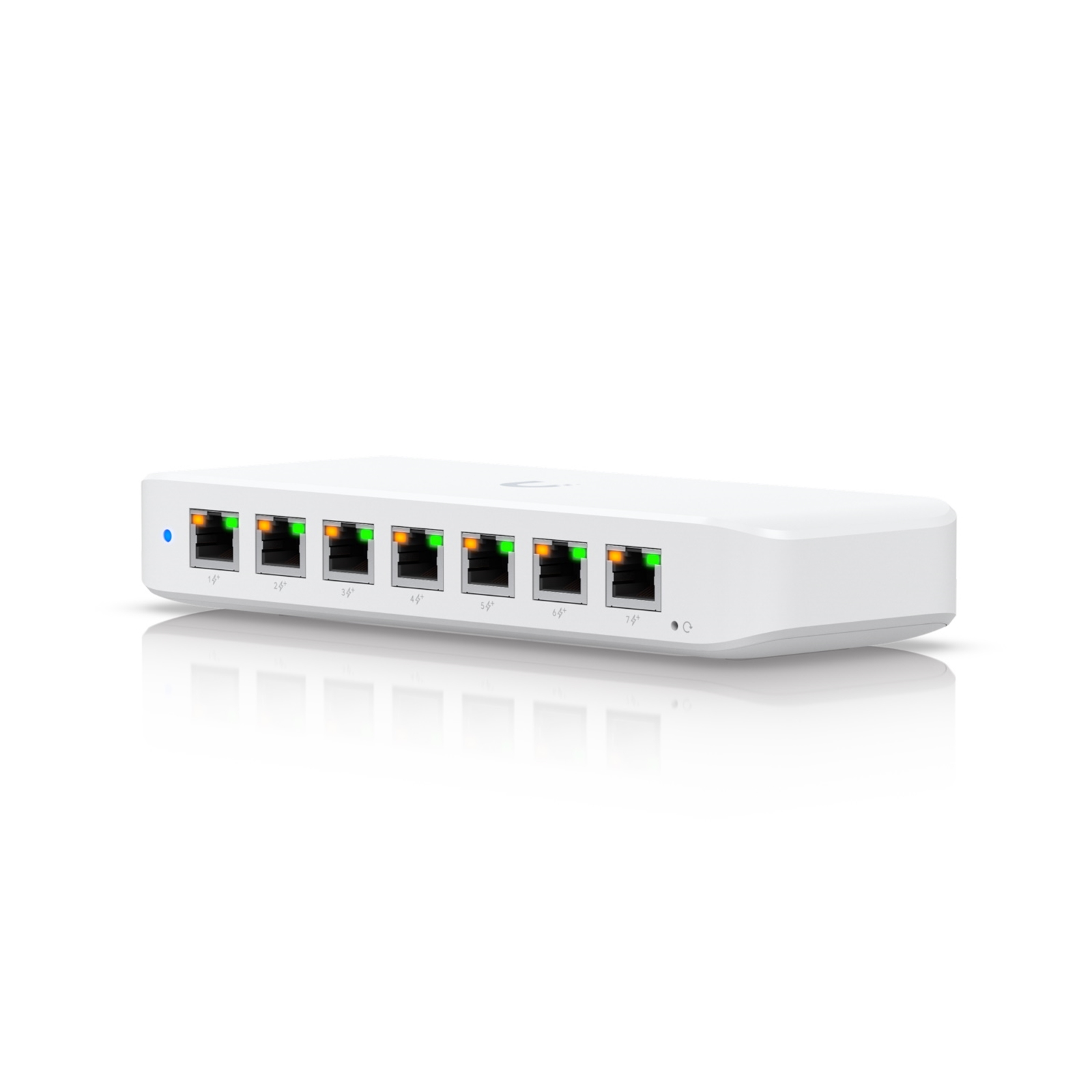

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

(7) GbE PoE+ output ports

(1) GbE port with optional PoE++ input

52W PoE availability with the included AC power adapter

Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")

Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
60W adapter: 330 g (11.6 oz)

Enclosure Material
Polycarbonate

Management Interface
Ethernet In-Band

Networking Interface
(8) GbE RJ45 ports

PoE Interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-Blocking Throughput
8 Gbps

Switching Capacity
16 Gbps

Forwarding Rate
11.904 Mpps

Power Method
(1) 54V, 1.1A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Power Supply
54V, external, 1.1A/60W

Supported Voltage Range
44—57V DC

Max. Power Consumption
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)

Total Available POE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W

Max. PoE+ Wattage Per Port by PSE
30W

Button
Factory Reset

Ambient Operating Temperature
PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

System
Status

Ethernet
PoE
Link/Activity

UniFi Network
Version 8.0.7 and later

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
DATA TRANSMISSION
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Throughput	8 Gbit/s
DESIGN
Rack mounting	No
LED indicators	Activity, Link, PoE, Status
Wall mountable	Yes
Product colour	White
Reset button	Yes
Housing material	Polycarbonate (PC)
ENERGY MANAGEMENT
Number of power supply units	1
Power source	DC/PoE
Input current	1.1 A
DC input voltage	44 - 57 V
Power consumption (max)	9 W
Power supply included	Yes
MANAGEMENT FEATURES
Switch layer	L2
Switch type	Managed
MULTICAST FEATURES
Multicast support	Yes
NETWORKING
Flow control support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
Rate limiting	Yes
10G support	No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 45 °C
PACKAGING CONTENT
Cables included	Power
Manual	Yes
PACKAGING DATA
Cables included	Power
Manual	Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Power connector	DC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	7
Power over Ethernet plus (PoE+) ports quantity	7
Total Power over Ethernet (PoE) budget	42 W
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet 4PPoE (PoE++) ports quantity	1
TECHNICAL DETAILS
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
WEIGHT & DIMENSIONS
Weight	320 g
Height	33 mm
Width	203 mm
Depth	76 mm
