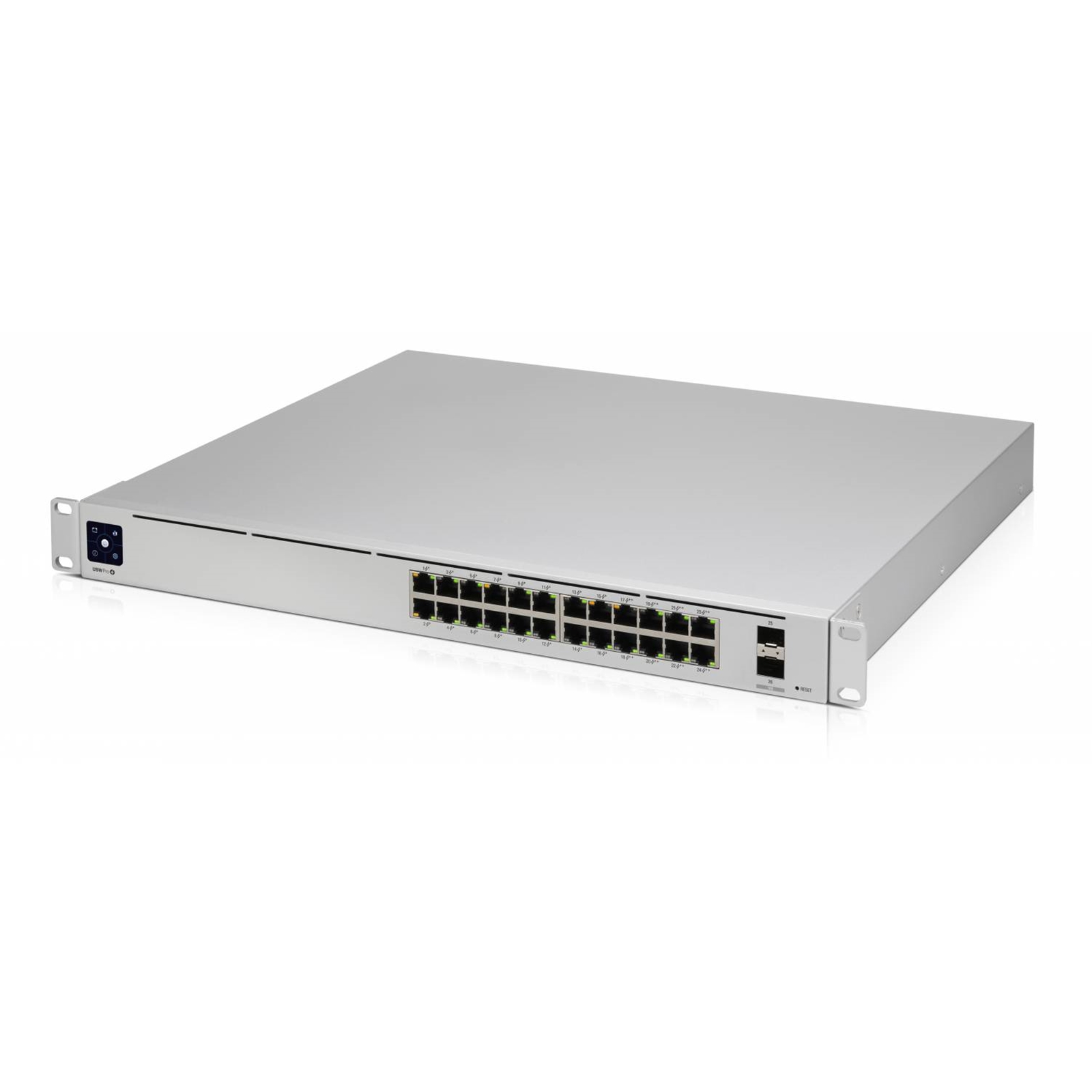

24-port switch with (24) Gigabit RJ45 ports and (2) 10G SFP+ ports. Powerful second-generation UniFi switching
UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features
(24) Gigabit RJ45 ports
(2) 10G SFP+ ports
Layer 2 and Layer 3 features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller
Specifications
Dimensions
442.4 x 285.4 x 43.7 mm
Weight
3.59 kg with Brackets
Interfaces
Networking - (24) 10/100/1000 RJ45 Ports / (2) 1/10G SFP+ Ethernet Ports
Management - Ethernet In Band
Total Non-Blocking Throughput
44 Gbps
Switching Capacity
88 Gbps
Forwarding Rate
65.472 Mpps
Power Supply
Universal Input - 100-240VAC, 50/60 Hz
USP-RPS DC Input - 11.5VDC, 2.61A
Power Supply
AC/DC, Internal, 36W
Maximum Power Consumption
30W
LEDs
RJ45 Data Ports - Speed/Link/Activity
SFP+ Data Ports - Link/Activity
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
|
DESIGN
|
| Rack mounting |
Yes |
| LED indicators |
Yes |
| Product colour |
Silver |
ENERGY MANAGEMENT
|
| Power supply included |
Yes |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Switch layer |
L2/L3 |
| Switch type |
Managed |
NETWORKING
|
| 10G support |
Yes |
PERFORMANCE
|
| Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| SFP+ module slots quantity |
2 |
POWER OVER ETHERNET (POE)
|
| Power over Ethernet (PoE) |
No |
WEIGHT & DIMENSIONS
|
| Weight |
3.5 kg |
| Height |
43.7 mm |
| Width |
442.4 mm |
| Depth |
285.4 mm |
