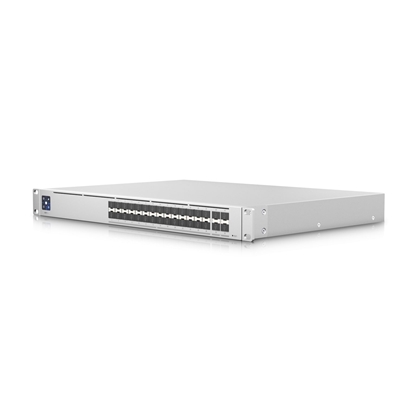

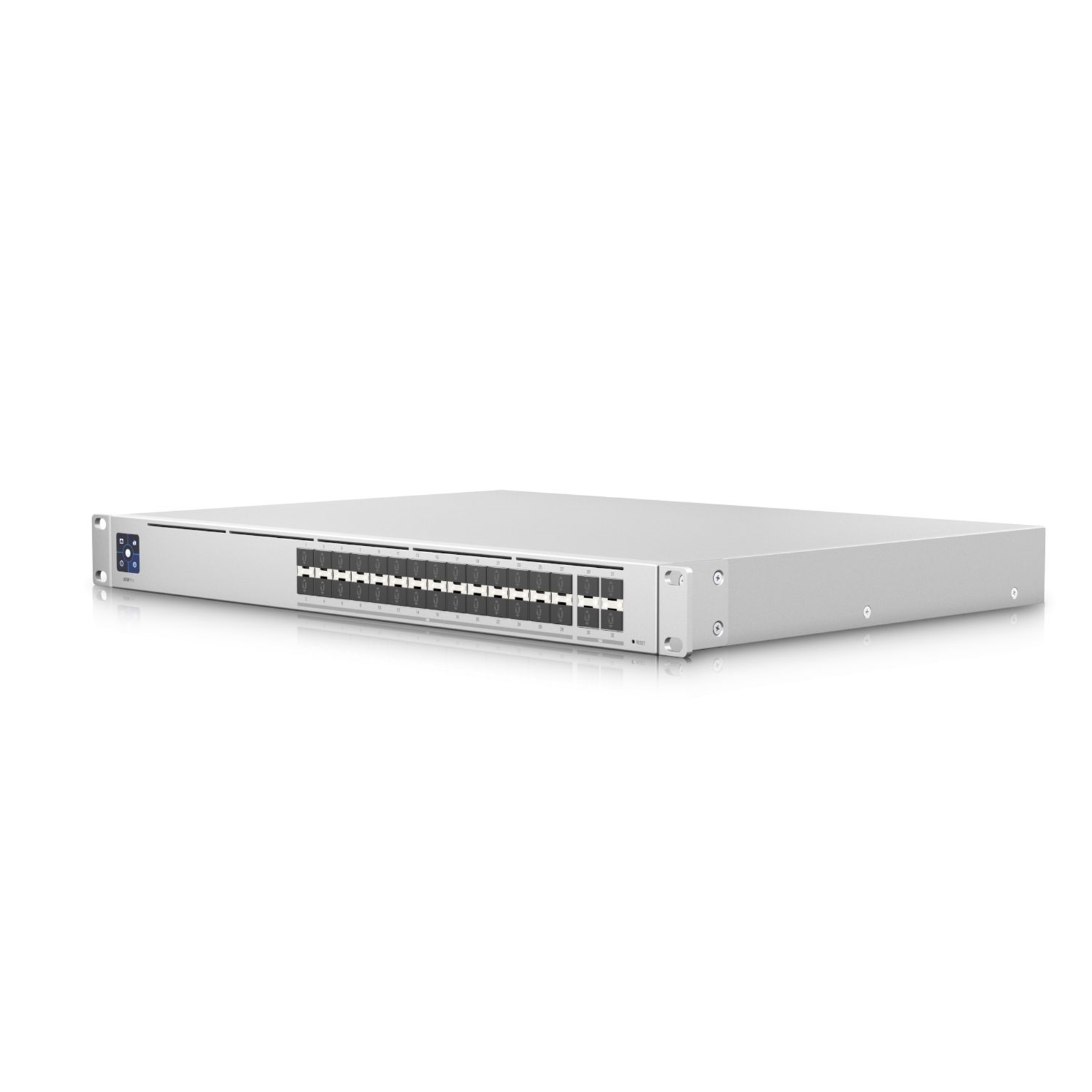

Ubiquiti USW-PRO-AGGREGATION UniFi Switch Pro Aggregation, 28x 10G SFP+ Ports, 4x 25G SFP28+ Ports, 760 Gbps Switching, 565.44 Mbps Forwarding, 380 Gbps Non-Blocking Throughput
Manufacturer : UBIQUITI
EAN : 810010072603
Manufacturer Part Code : USW-PRO-AGGREGATION
Weight : 6.05 kg
Login For Pricing
Key Specifications
| Speed | 10G |
| Ports | 32 |
| POE Capability | No |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
Manufacturer :
UBIQUITI
EAN :
810010072603
Manufacturer Part Code :
USW-PRO-AGGREGATION
Weight :
6.05 kg
Recommended Products
Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports.
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch management
(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input
760 Gbps switching capacity
Layer 3 switching features
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement.
Warranty valid for 12 months from date of purchase.
| DATA TRANSMISSION | |
|---|---|
| Switching capacity | 760 Gbit/s |
| Forwarding rate | 565.44 Mpps |
| Throughput | 380 Mpps |
| Static route | Yes |
| DESIGN | |
| LED indicators | Yes |
| Product colour | Grey |
| Number of fans | 4 fan(s) |
| Housing material | Steel |
| ENERGY MANAGEMENT | |
| Input current | 2 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 11.5 V |
| Power consumption (max) | 100 W |
| Power supply included | Yes |
| LOGISTICS DATA | |
| Harmonized System (HS) code | 85176990 |
| MANAGEMENT FEATURES | |
| Switch layer | L3 |
| Switch type | Managed |
| NETWORKING | |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| 10G support | Yes |
| OPERATIONAL CONDITIONS | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| PERFORMANCE | |
| Harmonized System (HS) code | 85176990 |
| PORTS & INTERFACES | |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 28 |
| Power connector | DC-in jack |
| SFP28 ports quantity | 4 |
| POWER OVER ETHERNET (POE) | |
| Power over Ethernet (PoE) | No |
| SECURITY | |
| DHCP features | DHCP server |
| WEIGHT & DIMENSIONS | |
| Weight | 4.6 kg |
| Height | 44 mm |
| Width | 442 mm |
| Depth | 325 mm |
