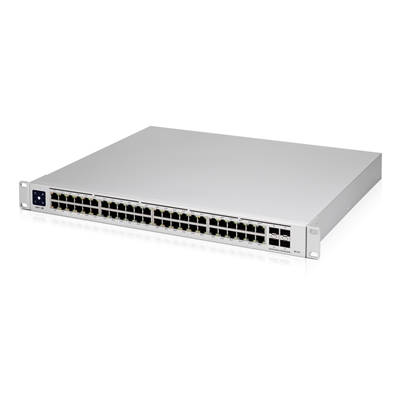

48-port switch with (40) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (4) 10 GB SFP+ ports. Powerful second-generation UniFi switching.

UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution – it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features
(8) Gigabit RJ45 802.3bt PoE++ ports
(40) Gigabit RJ45 802.3at PoE+ ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller

Specifications

Dimensions
442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72")

Weight
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)

Interfaces
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports

Management
Ethernet In-Band

Power Supply
100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
AC/DC, Internal, 120W
100 to 240VAC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
Switching capacity	176 Gbit/s
Jumbo frames support	Y
Forwarding rate	130.944 Mpps
Throughput	88000 Mpps
Static route	Y
DESIGN
Certification	CE, FCC, IC
Rack mounting	Y
Form factor	1U
LED indicators	Activity, Link, PoE, Speed, System
Product colour	Silver
ENERGY MANAGEMENT
Number of power supply units	1
Input current	11.54 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
DC input voltage	44 - 57 V
Power supply included	Y
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch layer	L2/L3
Switch type	Managed
NETWORKING
Full duplex	Y
Networking standards	IEEE 802.3af, IEEE 802.3at
Flow control support	Y
Port mirroring	Y
Auto MDI/MDI-X	Y
Spanning tree protocol	Y
VLAN support	Y
10G support	Y
Auto-sensing	Y
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Installed SFP+ modules quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
SFP+ module slots quantity	4
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	40
Total Power over Ethernet (PoE) budget	600 W
Power over Ethernet (PoE) power per port	64 W
SECURITY
Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP server
WEIGHT & DIMENSIONS
Weight	6.25 kg
Height	43.7 mm
Width	442.4 mm
Depth	399.6 mm
