PLEASE NOTE THAT POWER SUPPLIES ARE NOT INCLUDED

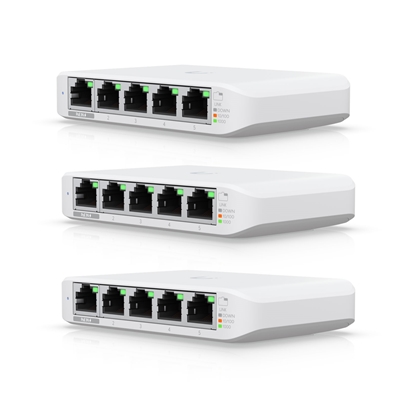

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

Build and expand your network with the UniFi Switch, part of the Ubiquiti Networks UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

Works with UniFi Network Controller
Manage Your Networks from a Single Control Plane
Intuitive and Robust Configuration, Control and Monitoring
Remote Firmware Upgrade
Users and Guests
Guest Portal/Hotspot Support

Specifications

Dimensions
107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83")

Weight
150 g
(5.29 oz)

Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports

PoE In Interface
802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max Power Consumption
2.5W

Power Method
USB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)

Power Supply
Not Included - USB C

Voltage Range
USB Type C - 4.7 - 5.2VDC
802.3af/at PoE - 44 - 57VDC

LEDs
System - Status
RJ45 Data Ports - Link/Speed/Activity

ESD/EMP Protection
± 16kV Air, ± 12kV Contact

Operating Temperature
-5 to 45C (23 to 113F)

Operating Humidity
10 to 90% Noncondensing

Certifications
CE, FCC, IC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
DESIGN
Certification	CE, FCC, IC
Rack mounting	No
LED indicators	Activity, Link, Speed, Status
Product colour	White
ENERGY MANAGEMENT
Power source	PoE/USB
DC input voltage	5 V
Power consumption (max)	2.5 W
Power supply included	No
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch type	Managed
NETWORKING
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 45 °C
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	5
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) voltage	57 V
Power over Ethernet (PoE) ports quantity	1
WEIGHT & DIMENSIONS
Weight	150 g
Height	21.2 mm
Width	107.2 mm
Depth	70.2 mm
