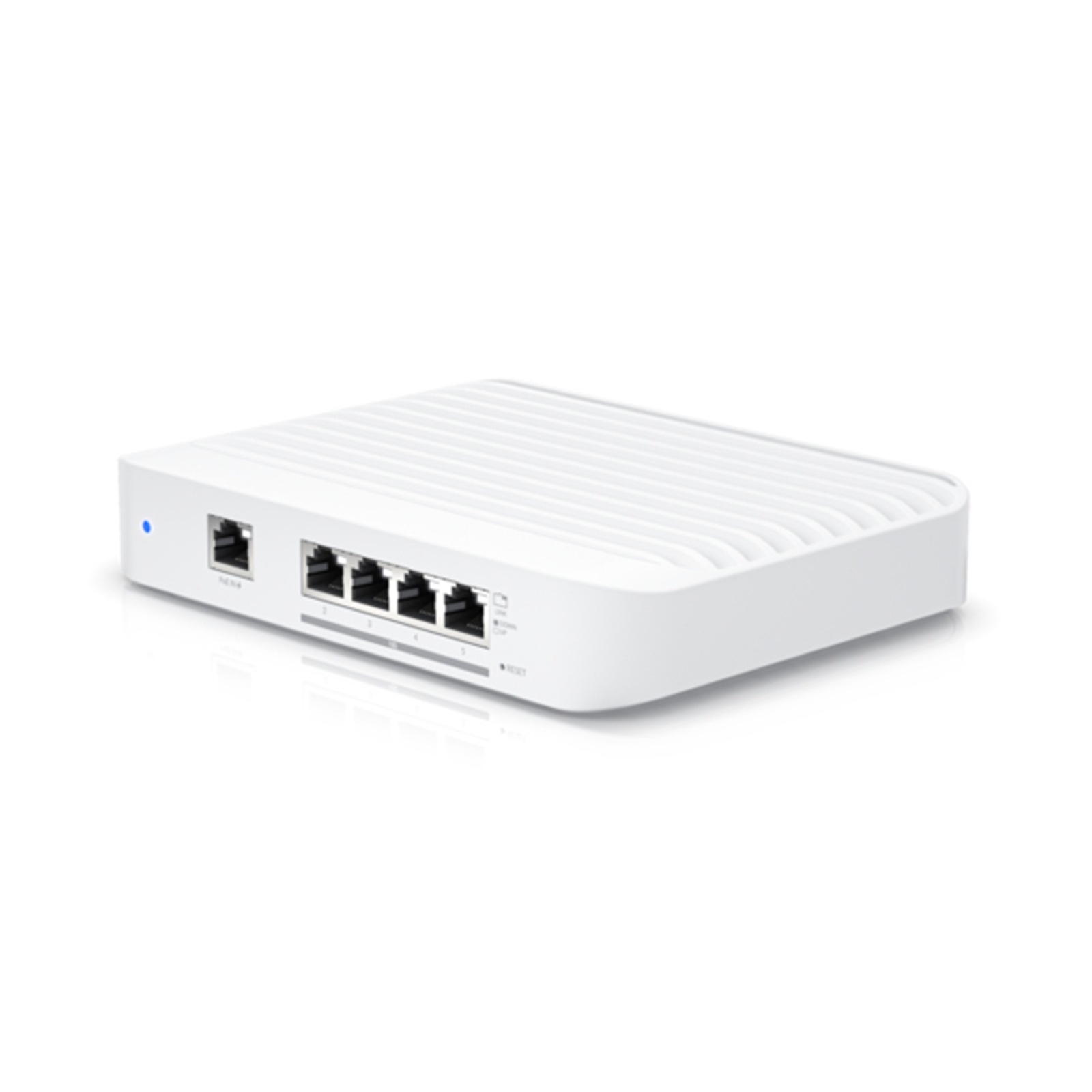

Ubiquiti Unifi USW-FLEX-XG 5 Port Layer 2 Managed Gigabit Switch

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Key Features
• (1) GbE, 802.3at PoE+ RJ45 input.
• (4) 10GbE RJ45 ports.
• Compact, slim housing.
• Can be powered with a 5V, 5A USB-C adapter.

Specifications

Edition
Smart Managed Switch

Form Factor
Desktop

Total Network Ports
1 x 10/100/1000 (Gigabit) RJ-45 (PoE Pass-through)

PoE Support Type
PoE+

No. of Ports Providing PoE
1 x 10/100/1000 (Gigabit) RJ-45 (PoE Pass-through)

Switching Capacity
82 Gbps

Non-Blocking Throughput
41 Gbps

Forwarding Rate
61.012 Mpps
Network Protocols
802.3at PoE

Max. Power Consumption
25 W

Max. PoE Wattage per Port

Power Supply
External Power Supply (Included)

Material
Polycarbonate

Dimensions (WxHxD)
185 x 32 x 135 mm

Weight
1.2 kg

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
Switching capacity	82 Gbit/s
Forwarding rate	61.012 Mpps
Throughput	41 Gbit/s
DESIGN
Certification	CE, FCC, IC
Rack mounting	No
LED indicators	LAN, System
Wall mountable	Yes
Product colour	White
Reset button	Yes
Housing material	Polycarbonate (PC)
ENERGY MANAGEMENT
Power source	USB
Input voltage	5 V
AC input voltage	90 - 264 V
DC input voltage	50 - 57 V
Power consumption (max)	25 W
Power supply included	Yes
MANAGEMENT FEATURES
Switch layer	L2
Switch type	Managed
NETWORKING
10G support	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 45 °C
OTHER FEATURES
Input voltage	5 V
PACKAGING CONTENT
Manual	Yes
PACKAGING DATA
Manual	Yes
PORTS & INTERFACES
Gigabit Ethernet (copper) ports quantity	1
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	5
Power connector	USB
10G Ethernet (copper) ports quantity	4
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	1
WEIGHT & DIMENSIONS
Weight	1.2 kg
Height	32 mm
Width	185 mm
Depth	135 mm
