Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more..

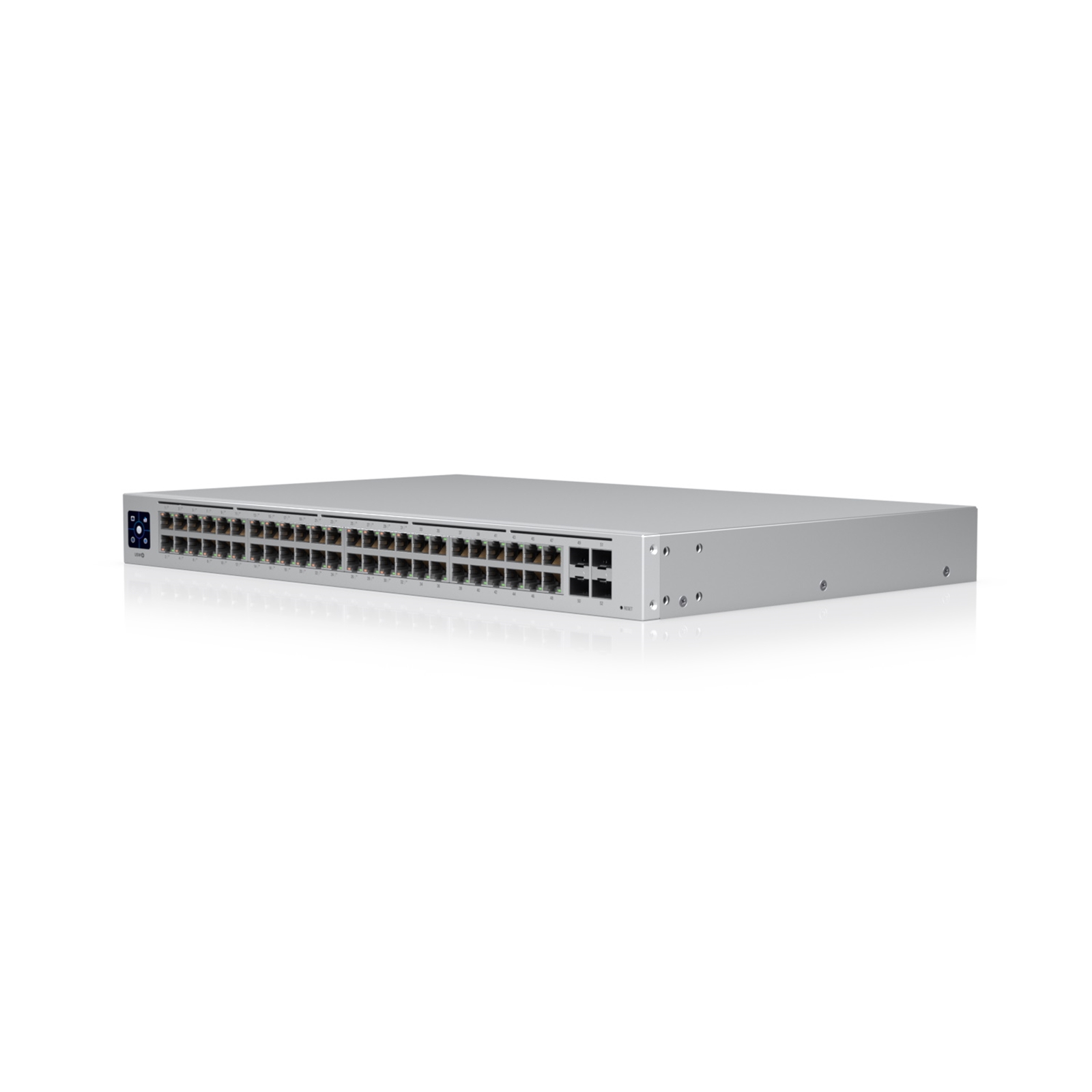

Specifications

Power Budget
195W PoE

RJ45 Ports
(48) 10/100/1000 RJ45 Ports

PoE+ Ports
(1-32) IEEE 802.3af/at

PoE++
No

SFP
(4) 1G SFP Ethernet Ports

SFP+
No

LCM
Yes

USP-RPS Power Redundancy
No

Dimensions
442.4 x 285 x 43.7 mm

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
Switching capacity	104 Gbit/s
Jumbo frames support	Yes
Forwarding rate	77.38 Mpps
Throughput	52 Gbit/s
DESIGN
Certification	CE, FCC, IC
Rack mounting	Yes
Form factor	1U
LED indicators	Activity, Link, Speed
Product colour	Stainless steel
ENERGY MANAGEMENT
Power source	AC/DC
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power consumption (max)	45 W
Power supply included	Yes
MANAGEMENT FEATURES
Switch layer	L2
Switch type	Managed
NETWORKING
Networking standards	IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Flow control support	Yes
Port mirroring	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
10G support	No
Auto-sensing	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PACKAGING CONTENT
Manual	Yes
PACKAGING DATA
Manual	Yes
PERFORMANCE
Fanless	Yes
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	48
SFP module slots quantity	4
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	32
Total Power over Ethernet (PoE) budget	195 W
Power over Ethernet (PoE) power per port	32 W
SECURITY
Authentication type	RADIUS
WEIGHT & DIMENSIONS
Weight	4.52 kg
Height	43.7 mm
Width	442.4 mm
Depth	285 mm
