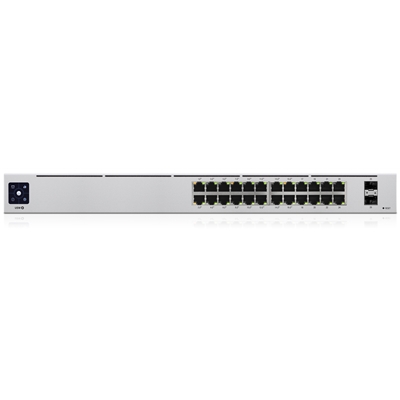

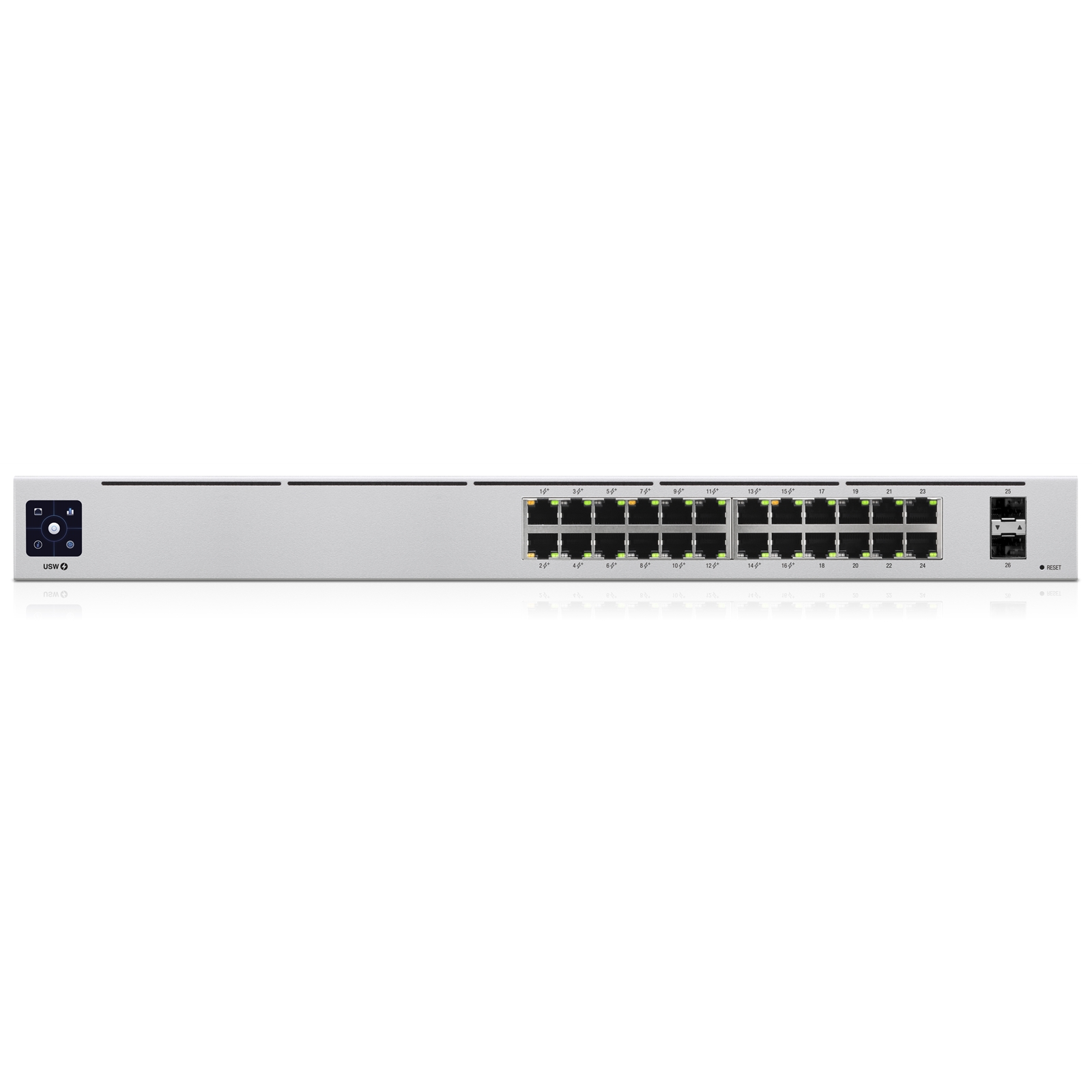

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3" color touchscreen for status information
Managed by UniFi Network Controller
1U rackmountable (kit included)

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DESIGN
Certification	CE, FCC, IC
Rack mounting	Yes
Product colour	Silver
Stackable	Yes
ENERGY MANAGEMENT
Power consumption (typical)	120 W
Power source	AC
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Power supply included	Yes
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch layer	L2
Web-based management	Yes
Switch type	Managed
NETWORKING
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
SFP module slots quantity	2
Power connector	AC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	No
WEIGHT & DIMENSIONS
Weight	2.7 kg
Height	43.7 mm
Width	442.4 mm
Depth	200 mm
