Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more..

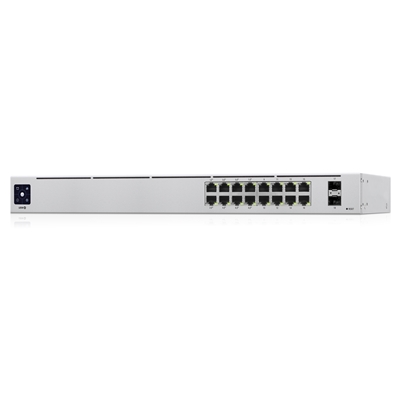

Specifications

Power Budget
42W PoE

RJ45 Ports
(16) 10/100/1000 RJ45 Ports

PoE+ Ports
(1-8) IEEE 802.3af/at

PoE++
No

SFP
(2) 1G SFP Ethernet Ports

SFP+
No

LCM
Yes

USP-RPS Power Redundancy
No

Dimensions
442.4 x 200 x 43.7 mm

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	CE, FCC, IC
DATA TRANSMISSION
Switching capacity	36 Gbit/s
Jumbo frames support	Yes
Forwarding rate	26.78 Mpps
Throughput	18000 Mpps
Static route	Yes
DESIGN
Certification	CE, FCC, IC
Rack mounting	Yes
Form factor	1U
LED indicators	Activity, Link, PoE, Speed, System
Product colour	Silver
ENERGY MANAGEMENT
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
DC input voltage	44 - 57 V
Power supply included	Yes
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch layer	L2/L3
Switch type	Managed
NETWORKING
Full duplex	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Flow control support	Yes
Port mirroring	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Auto-sensing	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
SFP module slots quantity	2
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	48 W
Power over Ethernet (PoE) power per port	32 W
SECURITY
Authentication type	IEEE 802.1x, RADIUS
WEIGHT & DIMENSIONS
Weight	2.8 kg
Height	43.7 mm
Width	442.4 mm
Depth	200 mm
