Target Components

Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.

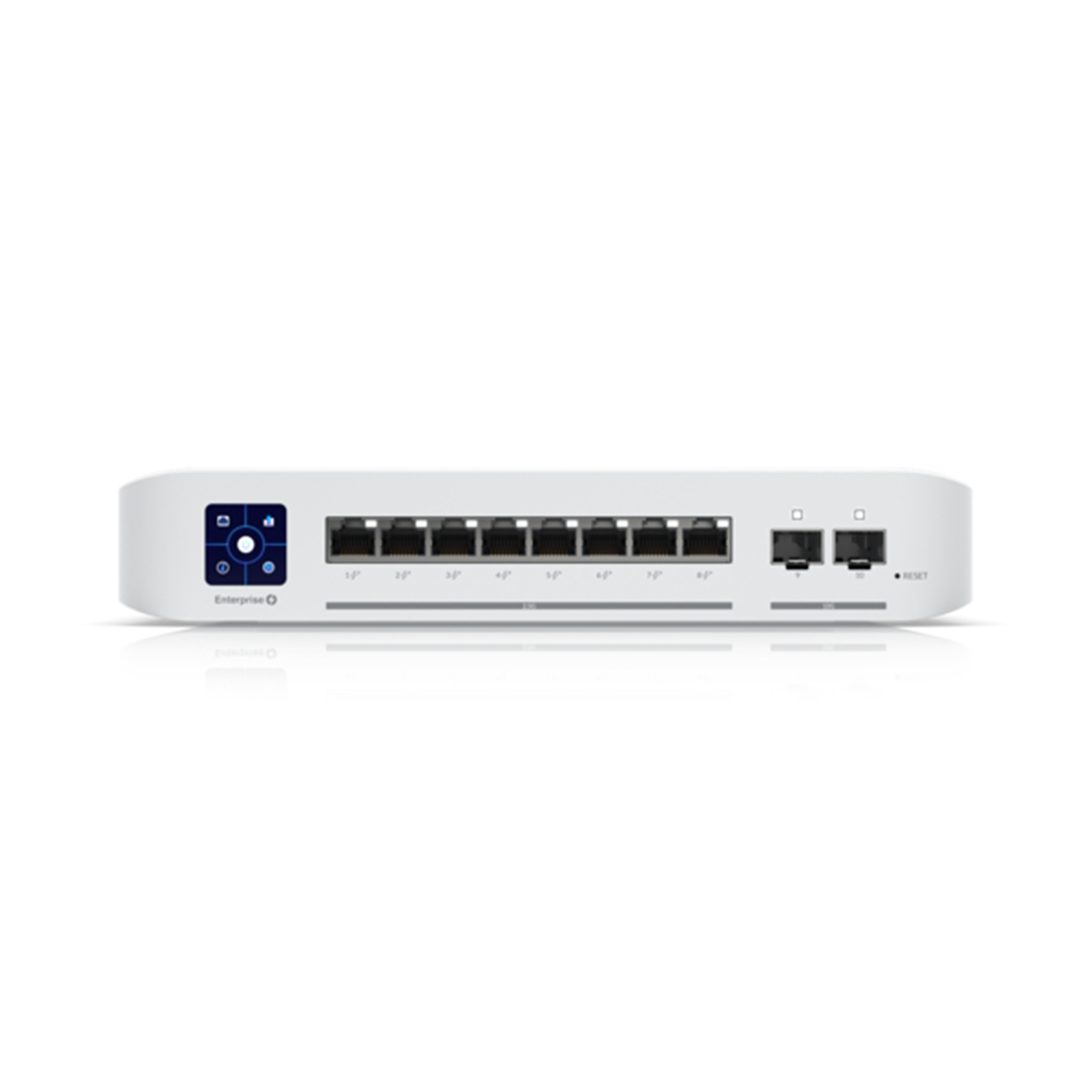

The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Hardware

Total non-blocking throughput
40 Gbps

Switching capacity
80 Gpbs

Forwarding rate
59.52 Mpps

Max PoE power
120W

Power method
(1) 100—240V AC, 2A Max., 50/60 Hz, Universal Input

Power Supply
AC/DC, Internal, 150W

Management Interface
Ethernet In-Band

Networking Interface
(8) 1/2.5 GbE RJ45

SFP+ Interface
(2) 1/10 Gbps SFP+

PoE Interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Max. PoE+ wattage per port by PSE
32W

Voltage range PoE mode
44-57V

Voltage range PoE+ mode
50-57V

LCM Display
(1) 1.3" Touchscreen
Bootup animation: Bootup in progress
Firmware upgrade icon: Firmware upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

ESD/EMP protection
Air: ± 16 kV
Contact: ± 12 kV

Operating temperature
-5 to 45° C (23 to 113° F)

Operating humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

LEDs

Ethernet
White: Link or activity

SFP+
White: Link or activity

Packaging

Weight
2.4 kg (5.29 lb)

Dimensions
200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

Enclosure Material
Polycarbonate

Mount Material
Polycarbonate

Warranty
1 Year
