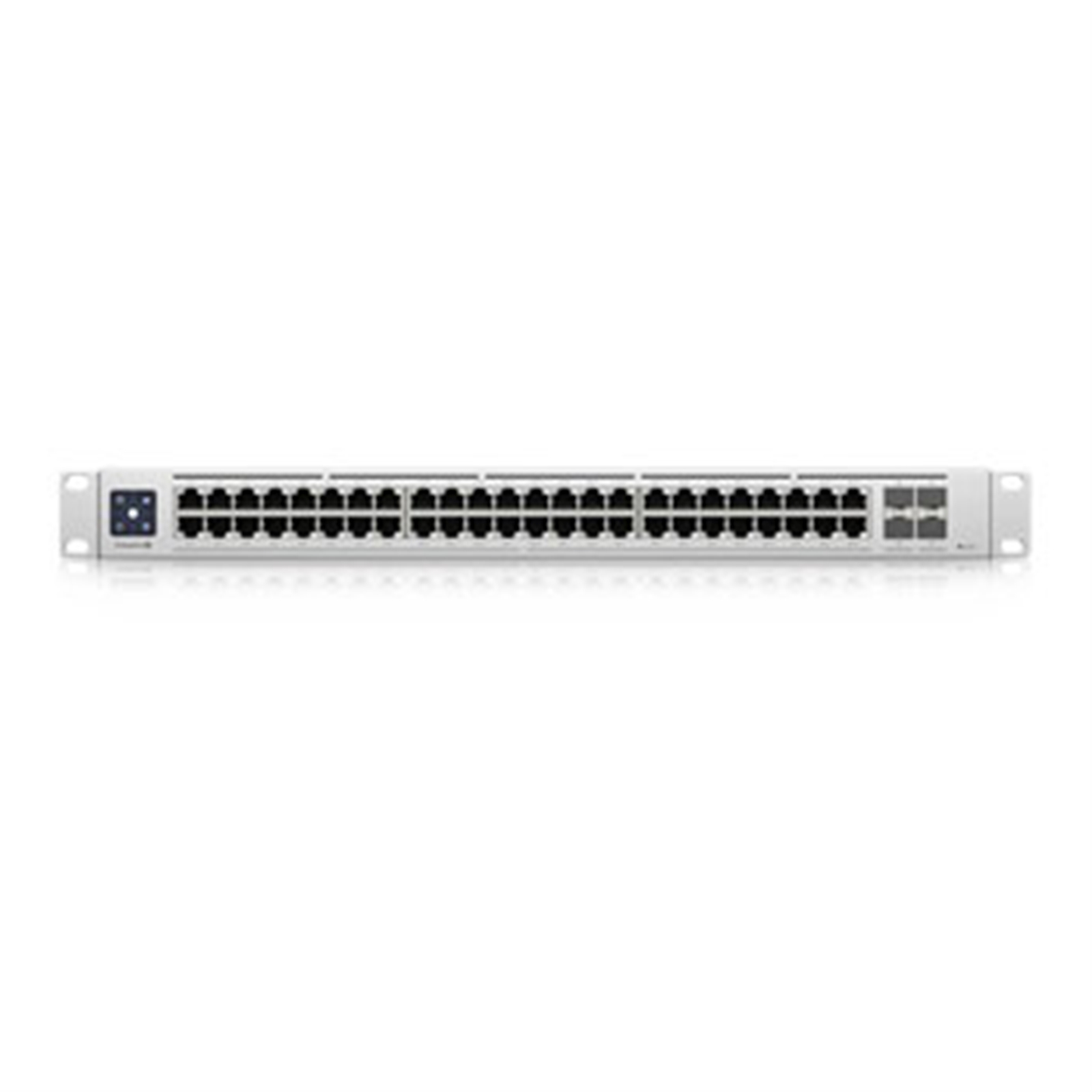

Ubiquiti USW-Enterprise-48-PoE UniFi Layer PoE+ 48 Port Gigabit Switch

The Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch is a configurable Layer 3 switch with auto-sensing 802.3at PoE+ that is designed to build and expand your network. It offers forty-eight (48) 2.5GbE RJ45 Ethernet ports, and four (4) 10GbE SFP+ ports, providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. The USW-Enterprise-48-PoE features a 1.3-inch touch LCM. Managed and configured by the UniFi Network application with UniFi Network mobile app support, the USW-Enterprise-48-PoE offers Layer 3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Key Features
Forty-eight (48) 2.5GbE 802.3af/at PoE+ RJ45 Ports.
Four (4) 10GbE SFP+ Ports.
USP RPS Support for Redundant Power Backup (sold separately, see accessories tab).
720W Maximum PoE Power.
1.3-inch Touch LCM with AR Switch Management.
Managed with UniFi Network Application and Mobile app.

Works with UniFi Network Application
Manage Your Networks from a Single Control Plane
Intuitive and Robust Configuration, Control and Monitoring
Remote Firmware Upgrade
Users and Guests
Guest Portal/Hotspot Support

Specifications

Edition
Smart Managed Switch

Total Network Ports
48 x 100/1000/2.5G BASE-T RJ45 4 x SFP+

PoE Support Type
PoE+

No. of Ports Providing PoE
48 x 100/1000/2.5G BASE-T RJ45

Switching Capacity
320 Gbps

Non-Blocking Throughput
160 Gbps

Forwarding Rate
238.095 Mpps

Network Protocols
IEEE 802.3af
IEEE 802.3at

Max. Power Consumption
(Excluding PoE Output) 150 W

Max. PoE Wattage per Port
34.2 W

Power Supply
PoE

Material
SGCC

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Compliance certificates	CE
DATA TRANSMISSION
Switching capacity	360 Gbit/s
Forwarding rate	238.095 Mpps
Throughput	160 Gbit/s
DESIGN
Product colour	White
Reset button	Yes
Housing material	Steel
ENERGY MANAGEMENT
Power source	AC/DC
Redundant power supply (RPS) support	Yes
Input current	10 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
DC input voltage	52 V
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch layer	L3
Web-based management	Yes
Switch type	Managed
NETWORKING
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 40 °C
PERFORMANCE
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity	48
SFP+ module slots quantity	4
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	No
SUSTAINABILITY
Sustainability certificates	CE
TECHNICAL DETAILS
Sustainability certificates	CE
Compliance certificates	CE
WEIGHT & DIMENSIONS
Weight	6.2 kg
Height	44 mm
Width	442 mm
Depth	400 mm
