Fully Managed Gigabit Switch

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.

8-Port Managed Gigabit Switches

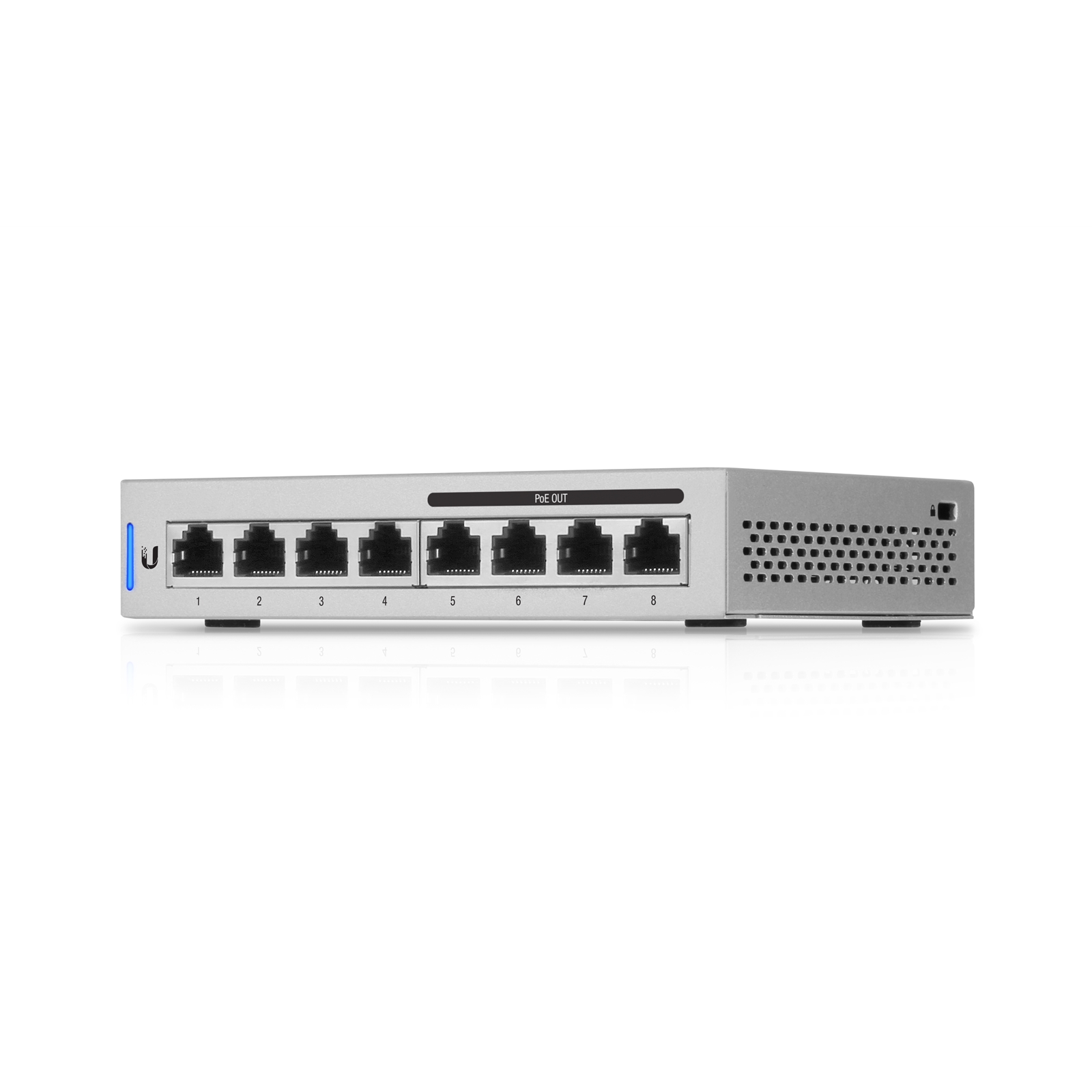

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Specifications

Model: US-8-60W
Total Non-Blocking Throughput: 8 Gbps
Gigabit RJ45 Ports: 8
PoE Ports: 4 Auto-Sensing IEEE 802.3af PoE Ports
Switching Capacity: 16 Gbps
Max. Power Consumption: 12W

Warranty:

Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION
Certification	ETSI300-019-1.4, CE, FCC, IC
DATA TRANSMISSION
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Forwarding rate	11.9 Mpps
Throughput	8 Mpps
Packet forwarding rate (1 Gbps)	11900 pps
DESIGN
Certification	ETSI300-019-1.4, CE, FCC, IC
LED indicators	Activity, Link, PoE, Speed
Wall mountable	Yes
Product colour	Grey
Reset button	Yes
Housing material	Steel
ENERGY MANAGEMENT
Output voltage	48 V
Output current	1.25 A
Power consumption (max)	12 W
LOGISTICS DATA
Harmonized System (HS) code	85176990
MANAGEMENT FEATURES
Switch type	Managed
NETWORKING
Networking standards	IEEE 802.1x, IEEE 802.3af
Flow control support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
10G support	No
Auto-sensing	Yes
OPERATIONAL CONDITIONS
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-5 - 45 °C
PACKAGING DATA
AC adapter included	Yes
PERFORMANCE
Processor frequency	400 MHz
Internal memory	256 MB
Flash memory	32 MB
Memory type	DDR3-SDRAM
Built-in processor	Yes
Harmonized System (HS) code	85176990
PORTS & INTERFACES
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Power connector	DC-in jack
POWER OVER ETHERNET (POE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	60 W
Power over Ethernet (PoE) voltage range	57 - 44 V
Power over Ethernet (PoE) power per port	15.4 W
SECURITY
Security algorithms	802.1x RADIUS
WEIGHT & DIMENSIONS
Weight	432 g
Height	30.7 mm
Width	148 mm
Depth	99.5 mm
