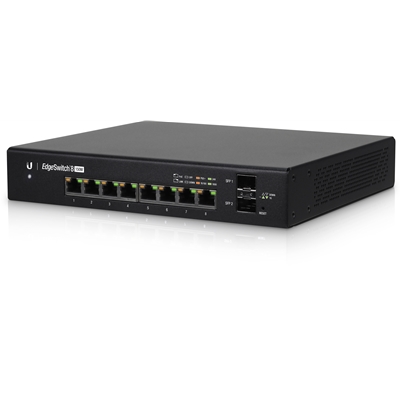

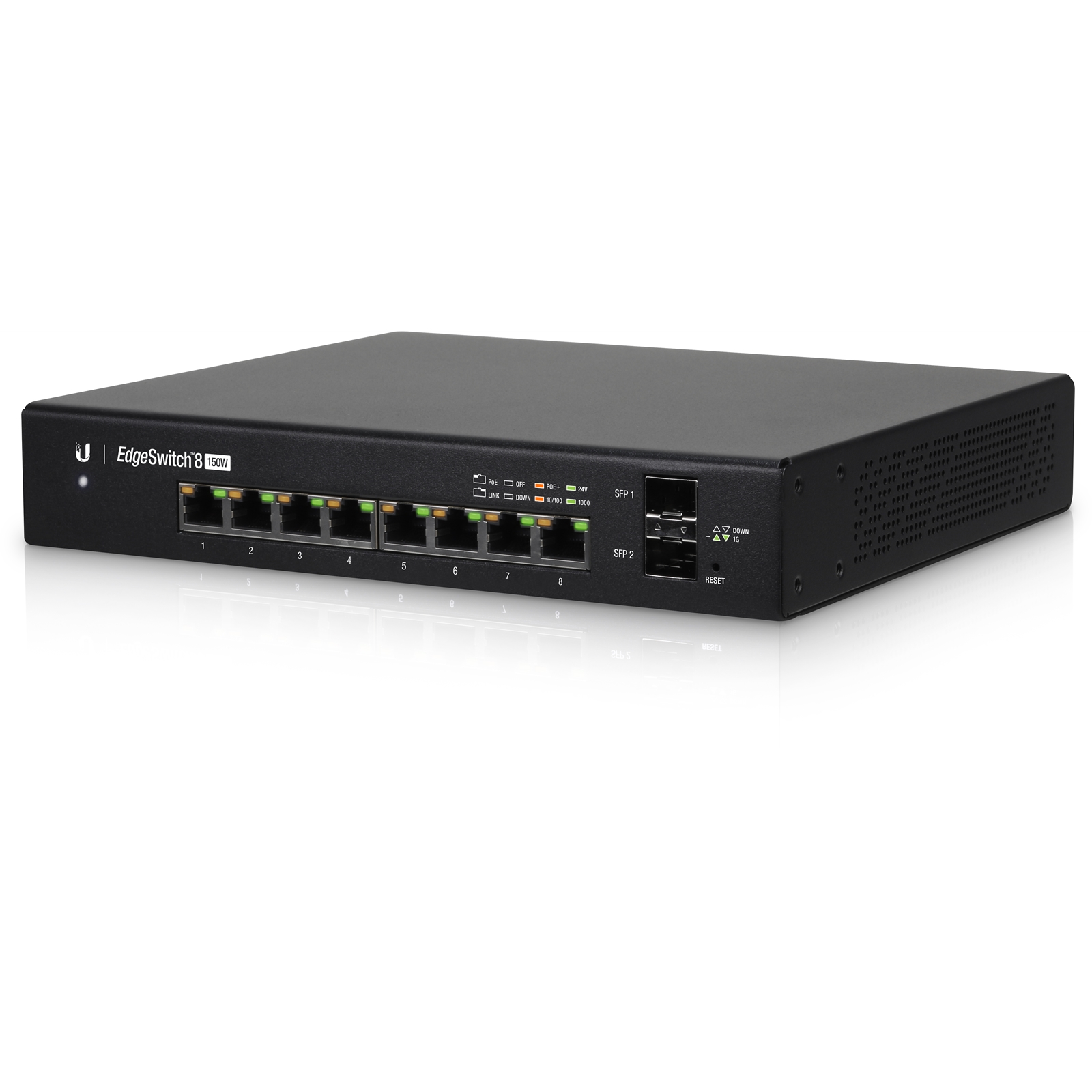

Ubiquiti EdgeMAX ES-8-150W Edgeswitch 8 Port Network Switch

The Edgeswitch ES-8-150W is ideal in deployments with UAP AC LITE, UAP AC LR and UAP AC PRO with very limited use of the UAP AC EDU due to the 150W maximum output.

The Ubiquiti EdgeSwitch 8 Port PoE Switch - ES-8-150W is capable of up to 10Gbps non-blocking throughput with simultaneous connections on all ports with 0 packet loss.

If 8 ports aren't enough, take a look at the Ubiquiti EdgeSwitch ES-24-250W with up to 250W power output across 24 ports.

Please be aware that the UniFi Console System cannot be used to manage any of the EdgeSwitch products

Features

Advanced UI
Command-Line Interface (CLI) is available through telnet and SSH, and the comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface.

Optical Fiber Backhaul
2 x SFP ports support uplinks of up to 1 Gbps

Convenient PoE+ Support
The EdgeSwitch features auto-sensing IEEE 802.3af/at (48v Unifi Compatibility with no config needed) and 24V passive PoE to power multiple devices on the network.

Enterprise-Class Features
The EdgeSwitch support full Layer 3 routing and management with an extensive array of advance layer 2 features available

Specifications

ES-8-150W

Weight & Dimensions
204 x 43 x 235 mm
1.72 kg Without Mount Brackets
1.8 kg With Mount Brackets

Total Non-Blocking Throughput
10 Gbps

Switching Capacity
20 Gbps

Forwarding Rate
14.88 Mpps

Max Power Consumption
150W Including POE Out
20W Excluding POE Out

Power Method AC /DC
100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input

Power Supply
AC/DC, Internal, 150W DC

LEDs Per Port
RJ45 Data Ports PoE, Speed/Link/Activity
SFP Data Ports, Speed/Link/Activity

Networking Interfaces
8 x 10/100/1000 Mbps RJ45 Ethernet Ports
2 x 1 Gbps SFP Ethernet Ports

Management Interface
1 x RJ45 Serial Port, Ethernet In/Out Band

Certifications
CE, FCC, IC

Wallmount
Yes

ESD/EMP Protection
Air: +/-24 kV, Contact: +/-24 kV

Operating Temperature
Internal AC/DC @ 150W -25 to 45C
Internal AC/DC @ 100W -25 to 55C
External DC -25 to 60C

Operating Humidity
5 to 95% Noncondensing

Shock and Vibration
ETSI300-019-1.4 Standard

POE Per Port

POE Interfaces
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE
34.2W

Voltage Range 802.3at Mode
50-57V

Max. Passive PoE Wattage per Port
17W

24V Passive PoE Voltage Range
20-27V

Package Contents
EdgeSwitch ES-8-150W
Mount Brackets x 2
Bracket Screws x 2
Mounting Screws x 4
Screw Anchors x 4
UK Power Cord
